DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1), DTC P0020: Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

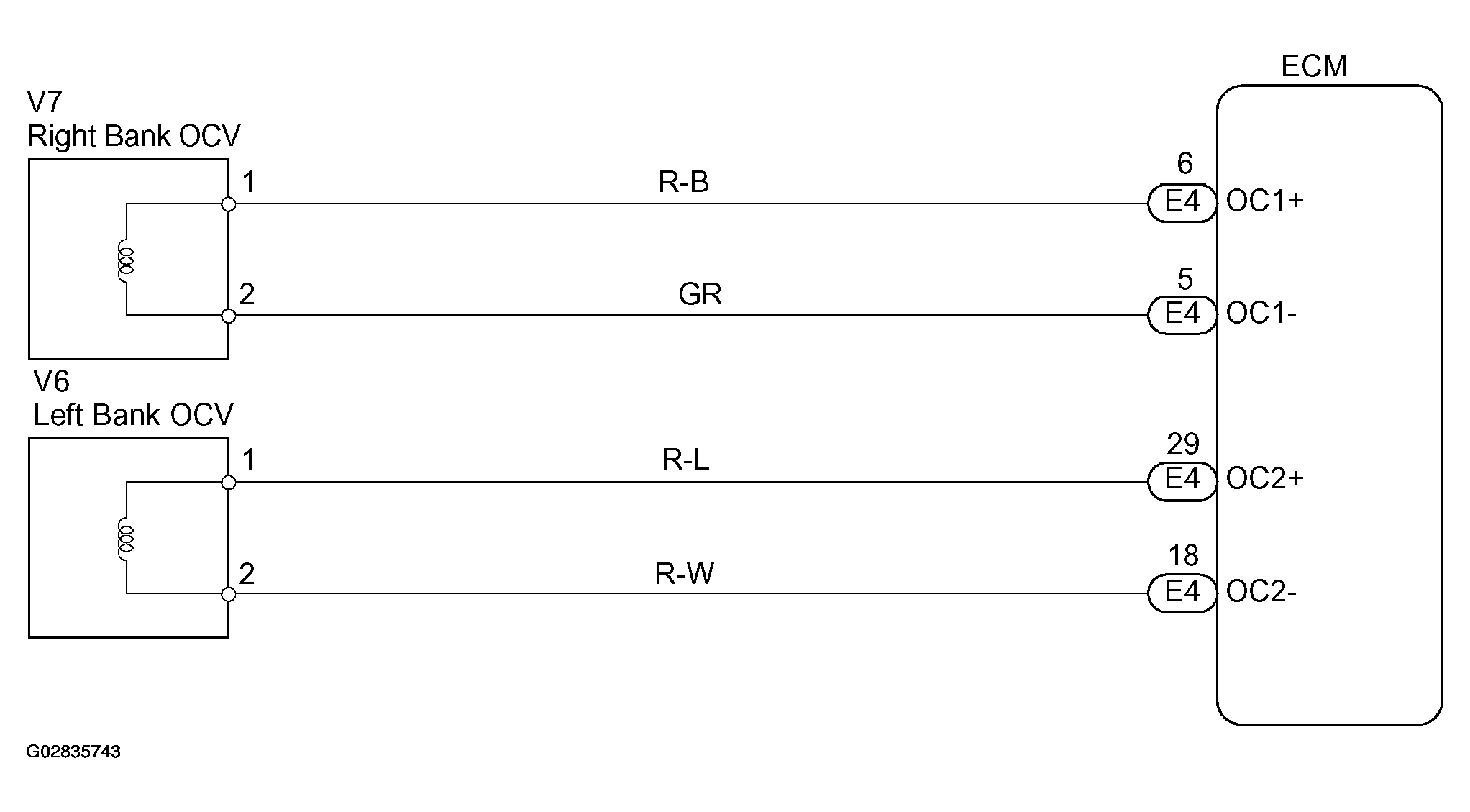

Fig 1: identifying OCV Wiring Diagram
G02835743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
