Brake Pedal Reserve Height
- Check brake pedal reserve height:
- Release parking brake.
- Measure pedal reserve height with engine running and force of 110 lbs. (50 kg) applied against pedal.

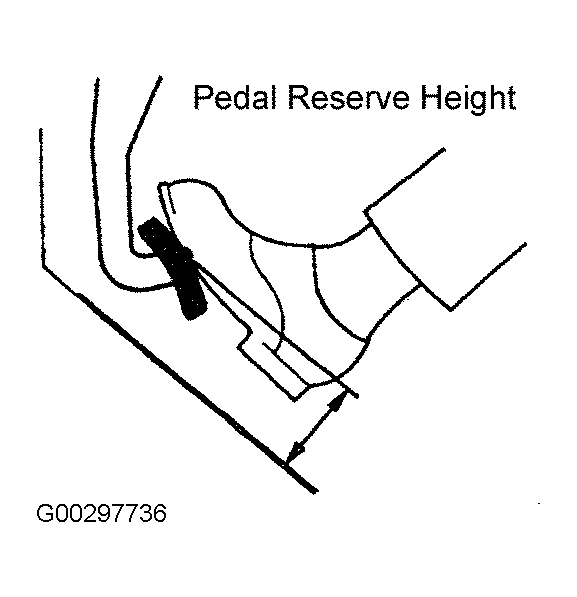

- Measure pedal reserve height from face of pedal pad to asphalt sheet under carpet. See Fig 1.
- If measured reserve height is less than specification of 3.0 in. (75 mm) with 110 lbs. (50 kg) of applied force, troubleshoot the brake system.
