Rear Stabilizer Bar (Sport Suspension Package): Components

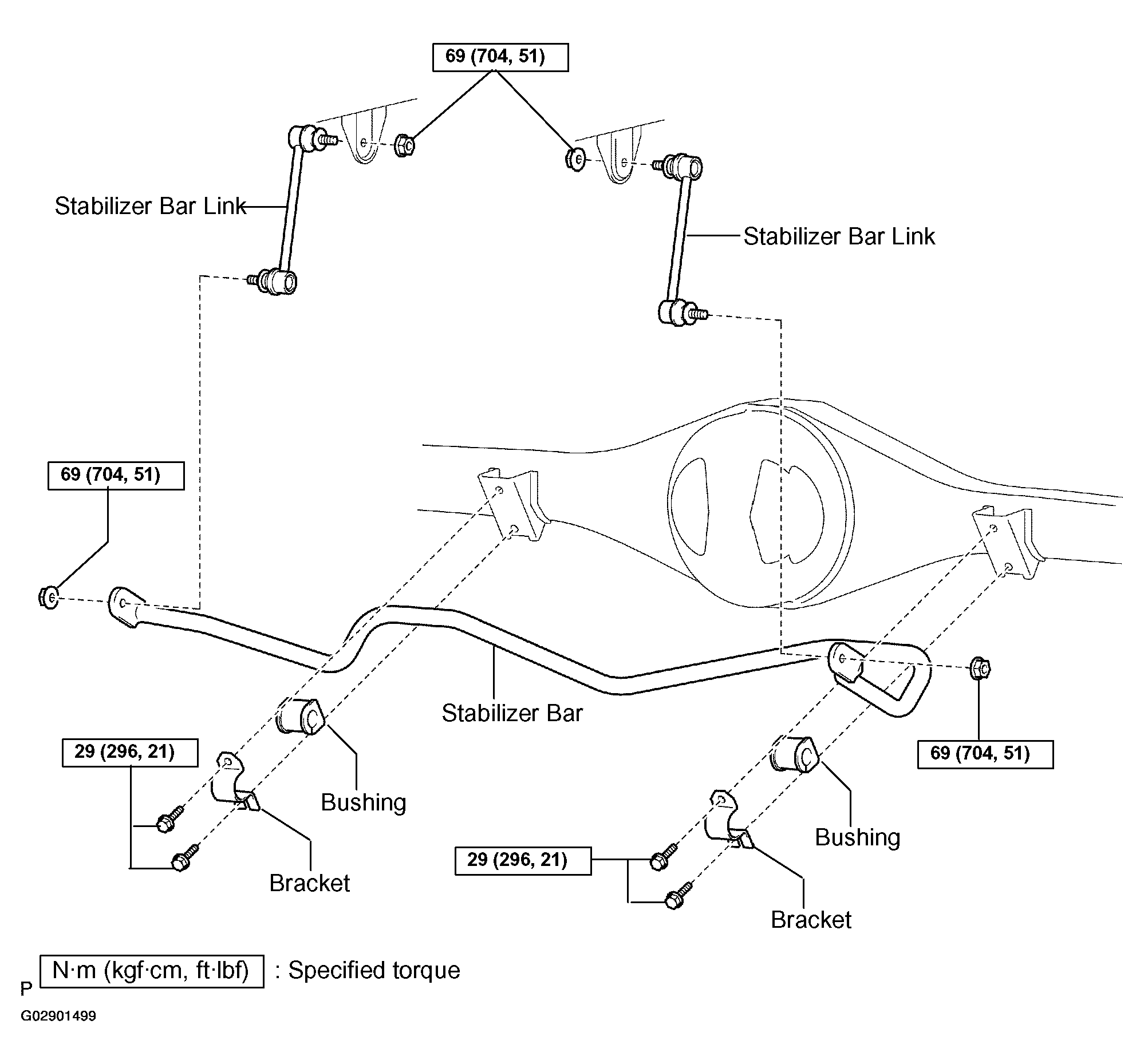

Fig 1: Identifying Rear Stabilizer Bar Components (Sport Suspension Package)

G02901499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
