Heater Control Assembly: Removal

  1. REMOVE CENTER CLUSTER INTEGRATION PANEL
    1. Remove the 3 heater control knobs.

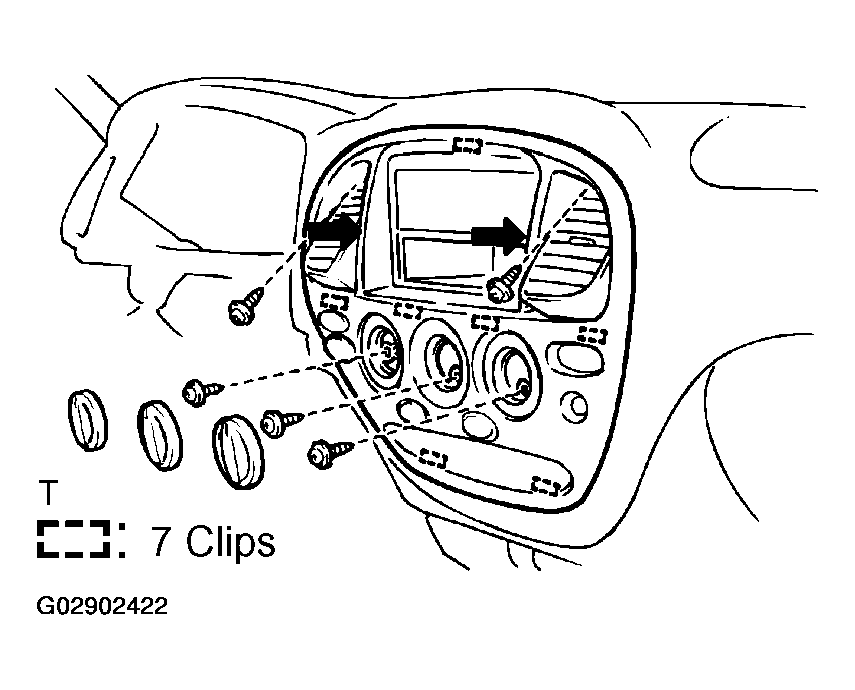

      Fig 1: Removing Heater Control Knobs And Screws From Center Cluster Integration Panel
      G02902422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 screws.
    3. Remove integration control panel by pulling the portions indicated by arrows in Fig 1.
    4. Disconnect the connector.
  2. REMOVE LOWER LH FINISH PANEL
  3. REMOVE HEATER TO REGISTER DUCT NO. 2
  4. REMOVE GLOVE COMPARTMENT DOOR
  5. REMOVE LOWER NO. 2 FINISH PANEL
  6. REMOVE HEATER TO REGISTER DUCT NO. 4 (See  REMOVAL  )
  7. DISCONNECT HEATER CONTROL CABLES

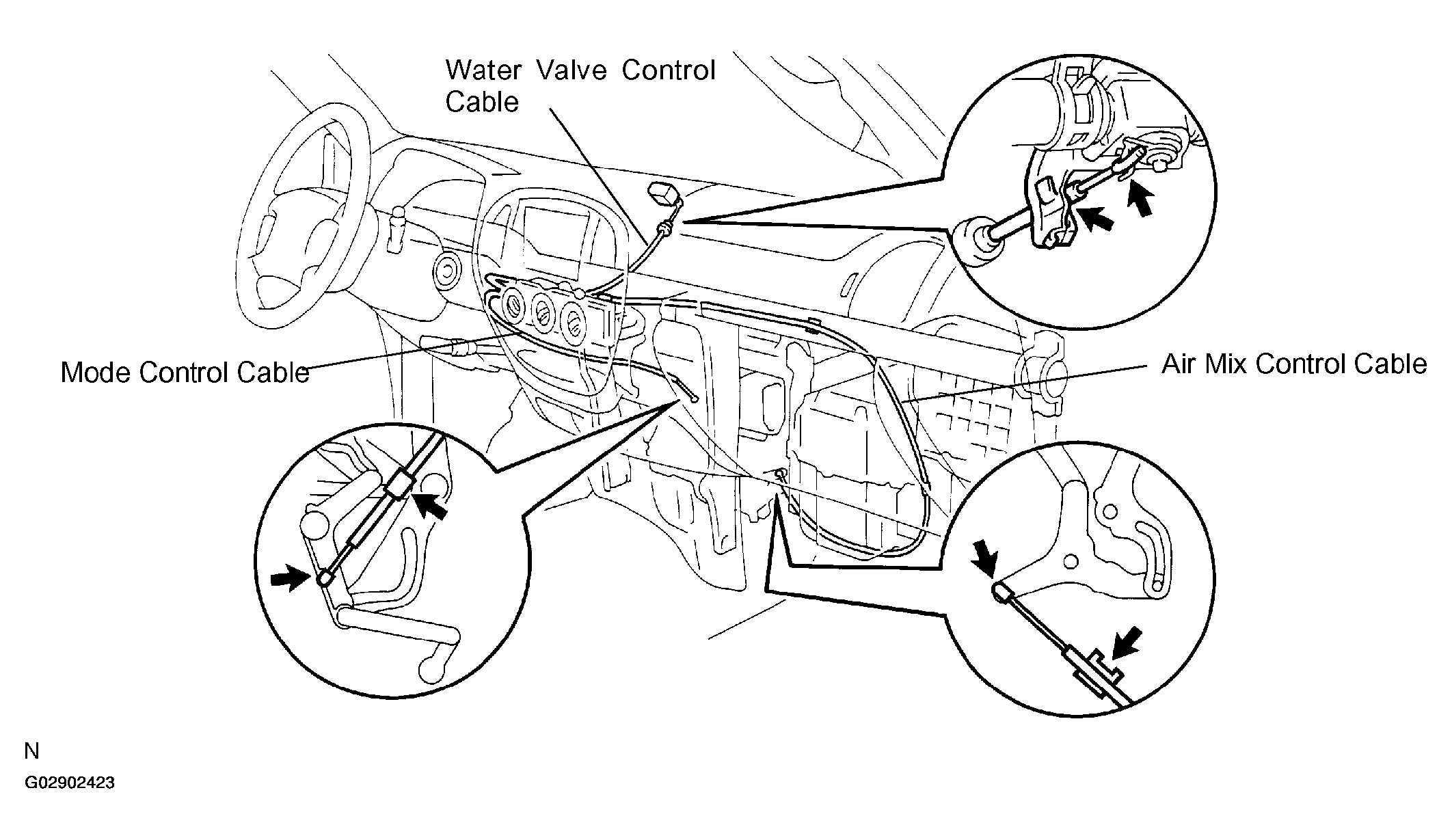

    Fig 2: Disconnecting Heater Control Cables
    G02902423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE HEATER CONTROL ASSEMBLY

    Remove the heater control assembly, then disconnect the connectors.

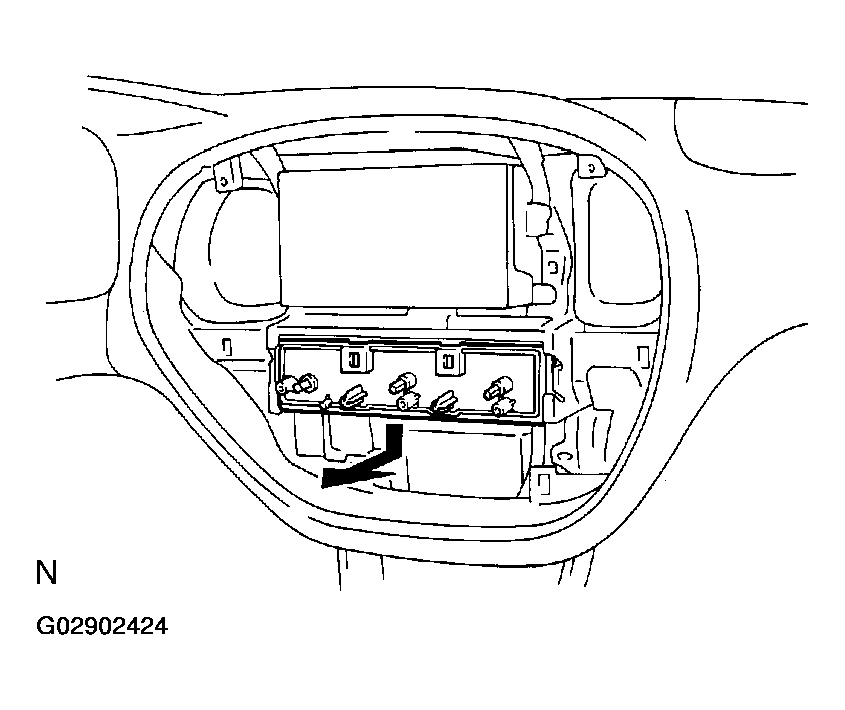

    Fig 3: Removing Heater Control Assembly
    G02902424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
