TROUBLESHOOTING - Tundra
>>
Problem Symptoms Table
>>
Stop Light System
Stop Light System

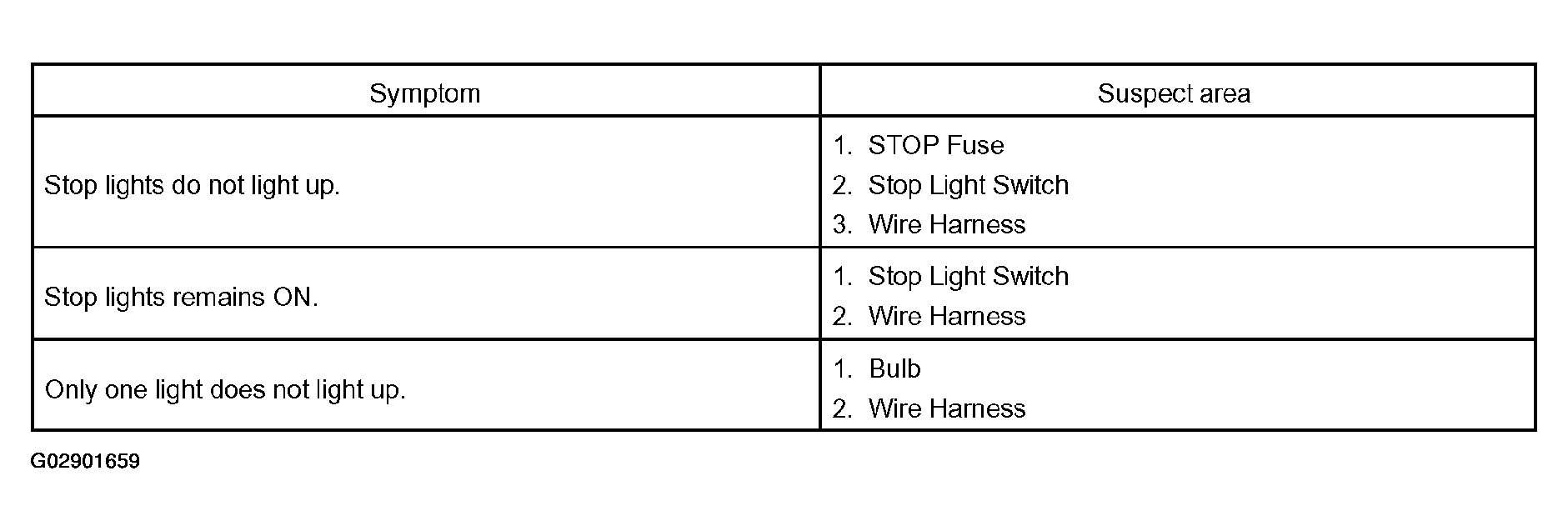

Fig 1: Stop Light System Problem Symptoms Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
