Headlight And Taillight System (W/ Daytime Running Light)

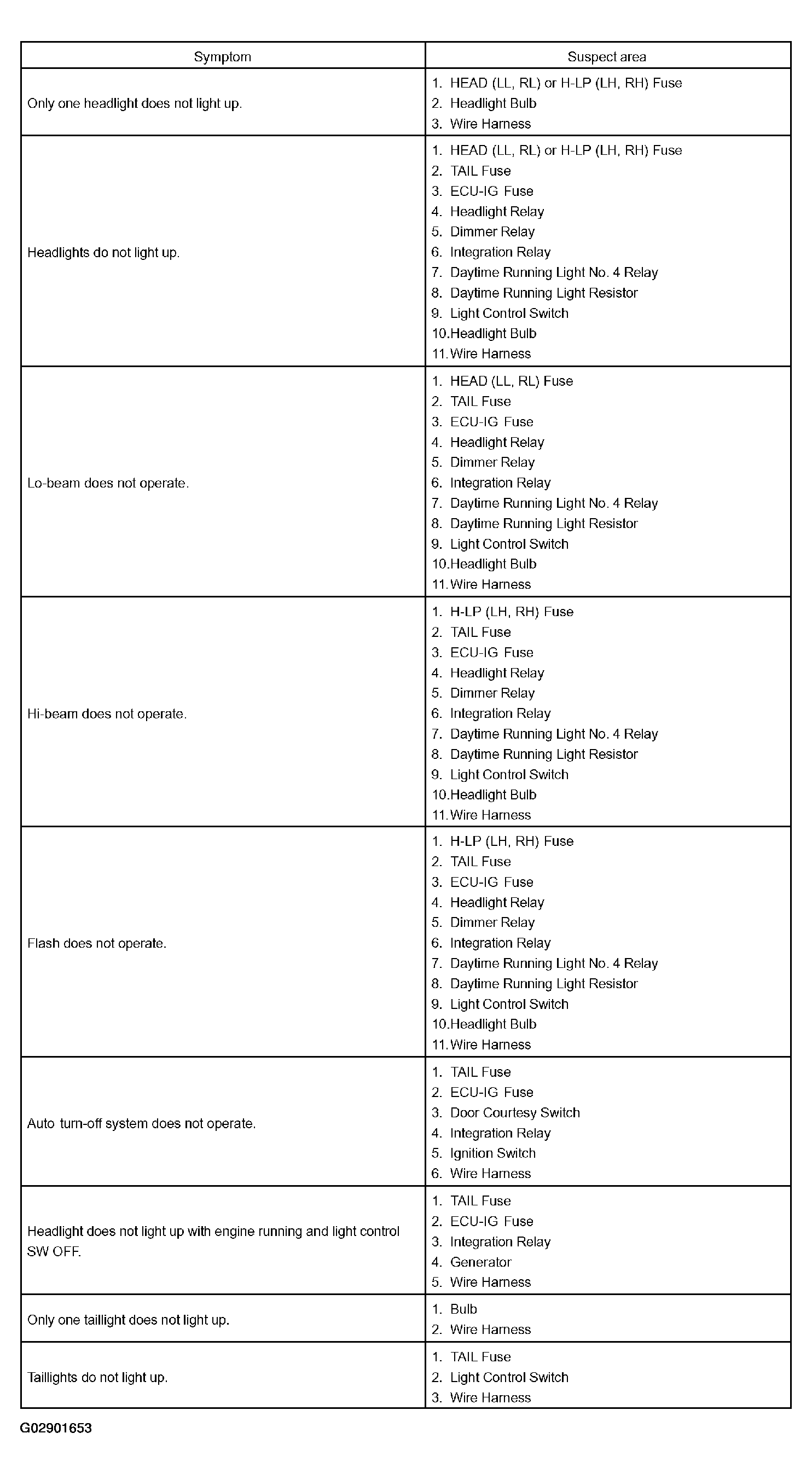

Fig 1: Headlight And Taillight System (W/Daytime Running Light) Problem Symptoms Table

G02901653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
