Air Conditioning Control Assembly (Manual A/C): Removal

  1. REMOVE COWL SIDE TRIMS
  2. REMOVE LOWER NO. 1 FINISH PANEL
  3. REMOVE LOWER NO. 1 FINISH RETAINER
  4. REMOVE METER CLUSTER PANEL
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL
  6. REMOVE LOWER NO. 2 FINISH PANEL
  7. REMOVE GROVE COMPARTMENT
  8. REMOVE CONTROL INSTRUMENT CLUSTER FINISH PANEL
  9. REMOVE RADIO RECEIVER ASSEMBLY (See  REMOVAL  )
  10. DISCONNECT HEATER CONTROL CABLE
    NOTE: When the heater control cables is disconnected, should not bend the cable.

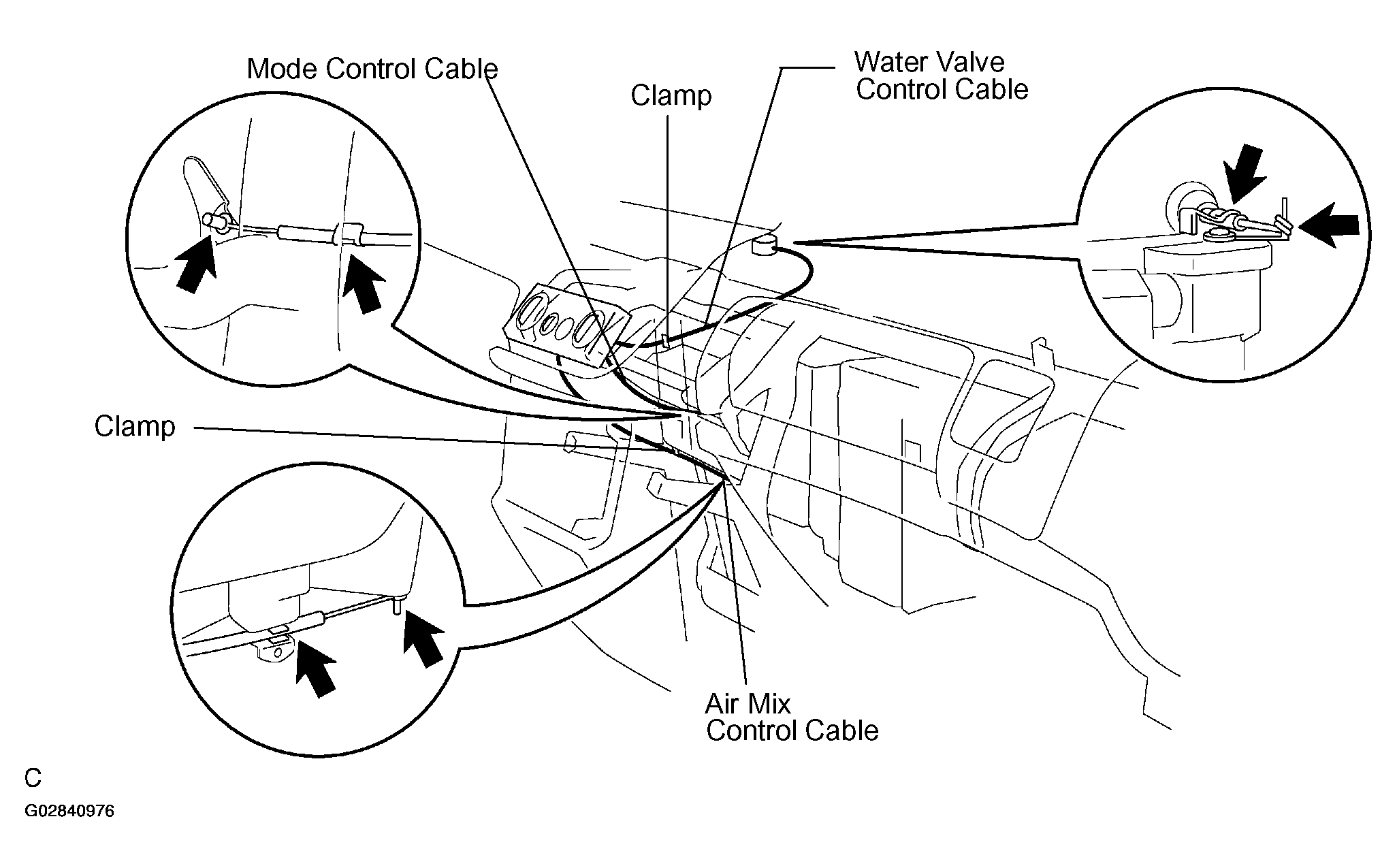

    Fig 1: Disconnecting Control Cables
    G02840976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE A/C CONTROL ASSEMBLY

    Remove the 2 screws and pulling out the A/C control assembly, then disconnect the connectors.

    NOTE: Be careful not to bent the mode control cable, when pull out the A/C control assembly.

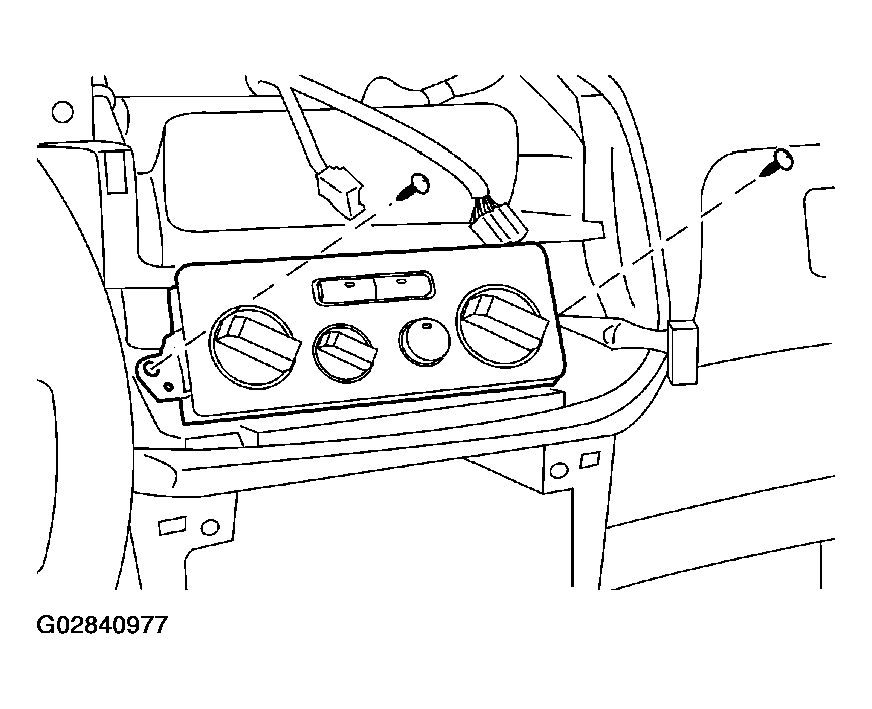

    Fig 2: Removing Screws & Pulling Out A/C Control Assembly
    G02840977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
