Air Conditioning Control Assembly (Auto A/C): Removal

  1. REMOVE UPPER CLUSTER FINISH PANEL
  2. REMOVE CENTER CLUSTER FINISH PANEL
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  4. REMOVE A/C CONTROL ASSEMBLY

    Remove the 2 screws and A/C control assembly, then disconnect the connector.

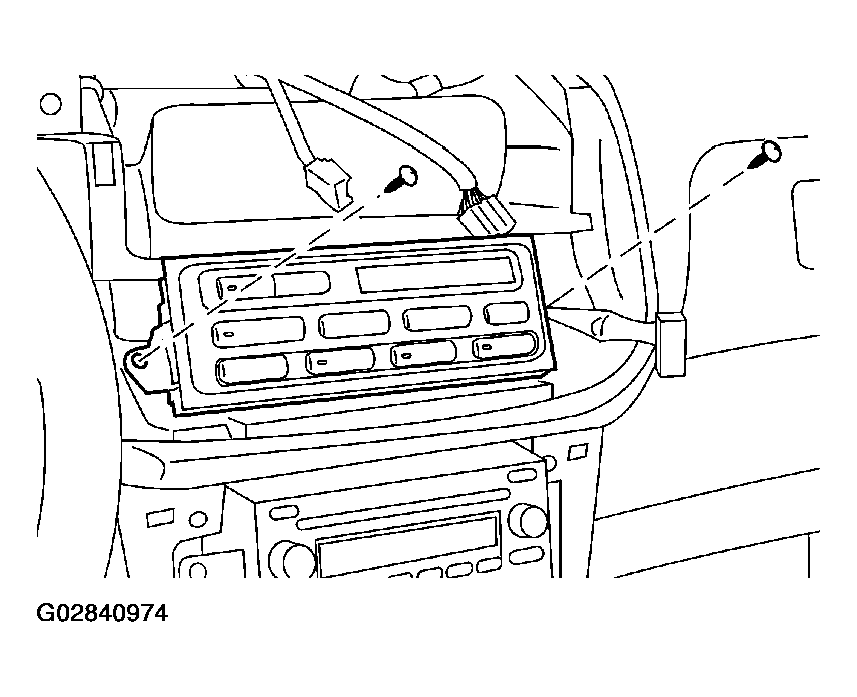

    Fig 1: Removing A/C Control Assembly
    G02840974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
