Master Cylinder
Master Cylinder
NOTE:
For overhaul of master cylinder assembly, see
Fig 1
.

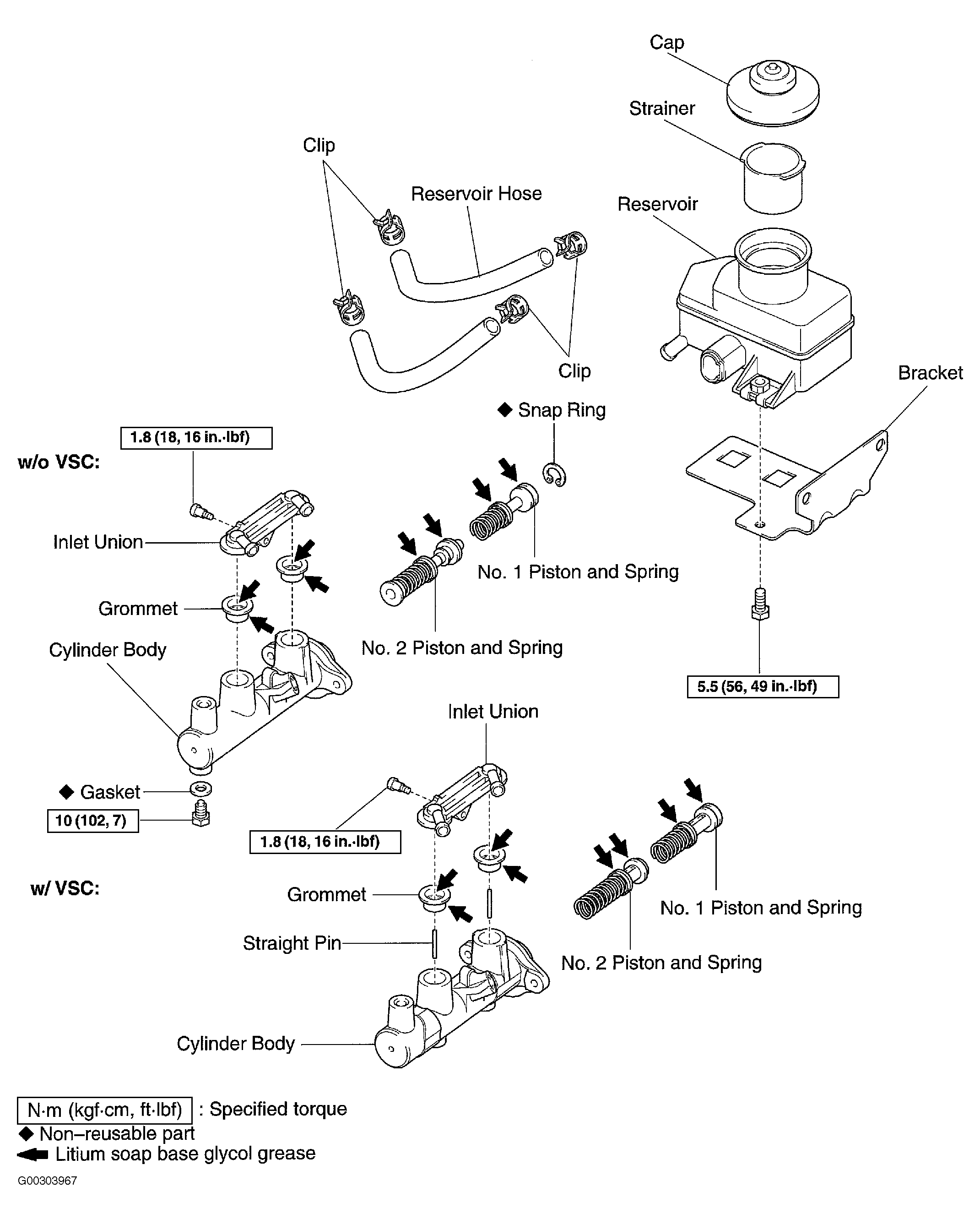

Fig 1: Exploded View Of Master Cylinder Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
