Heater Control Assembly: Removal

REMOVE CENTER CLUSTER FINISH PANEL

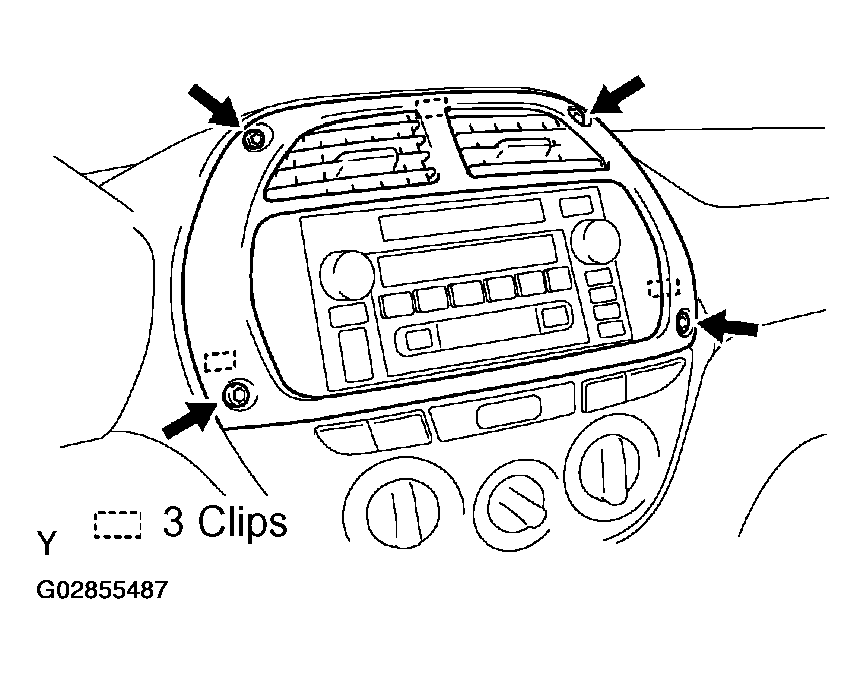

Fig 1: Removing Center Cluster Finish Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a hexagon wrench, remove the 4 bolts.
2. Using a screwdriver, remove the instrument cluster finish panel.
  NOTE: Tape the screwdriver tip before use.
3. w/o Radio:
  1. Remove the 4 bolts and stereo opening cover.

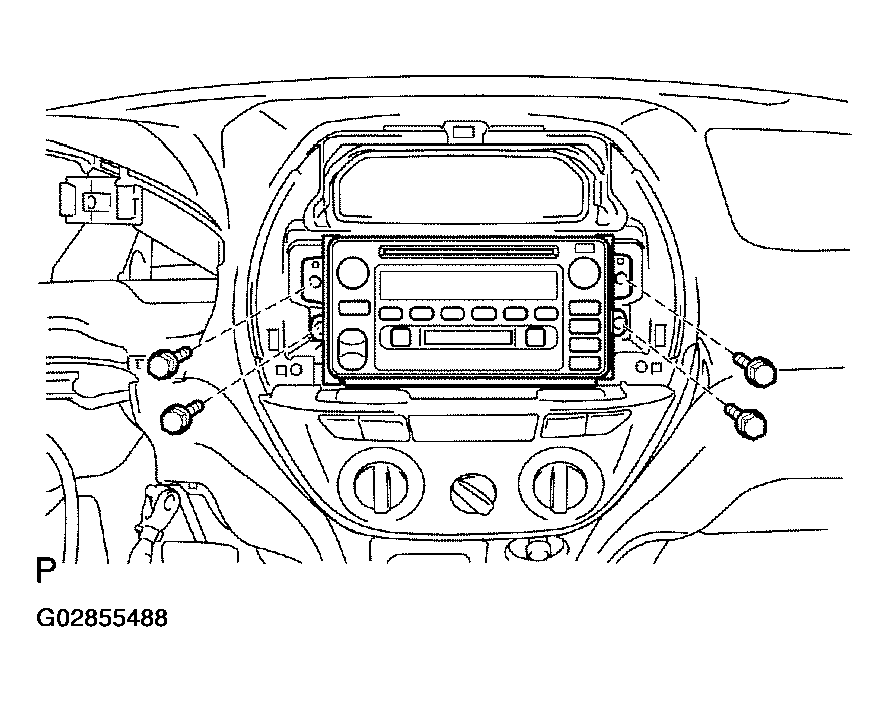

  2. w/ Radio:
  3. Remove the 4 bolts and radio, then disconnect the connectors.
DISCONNECT HEATER CONTROL CABLES
Remove the No. 1 instrument panel under cover subassembly.

NOTE: When the cables are disconnected, be careful not to bend the cables.

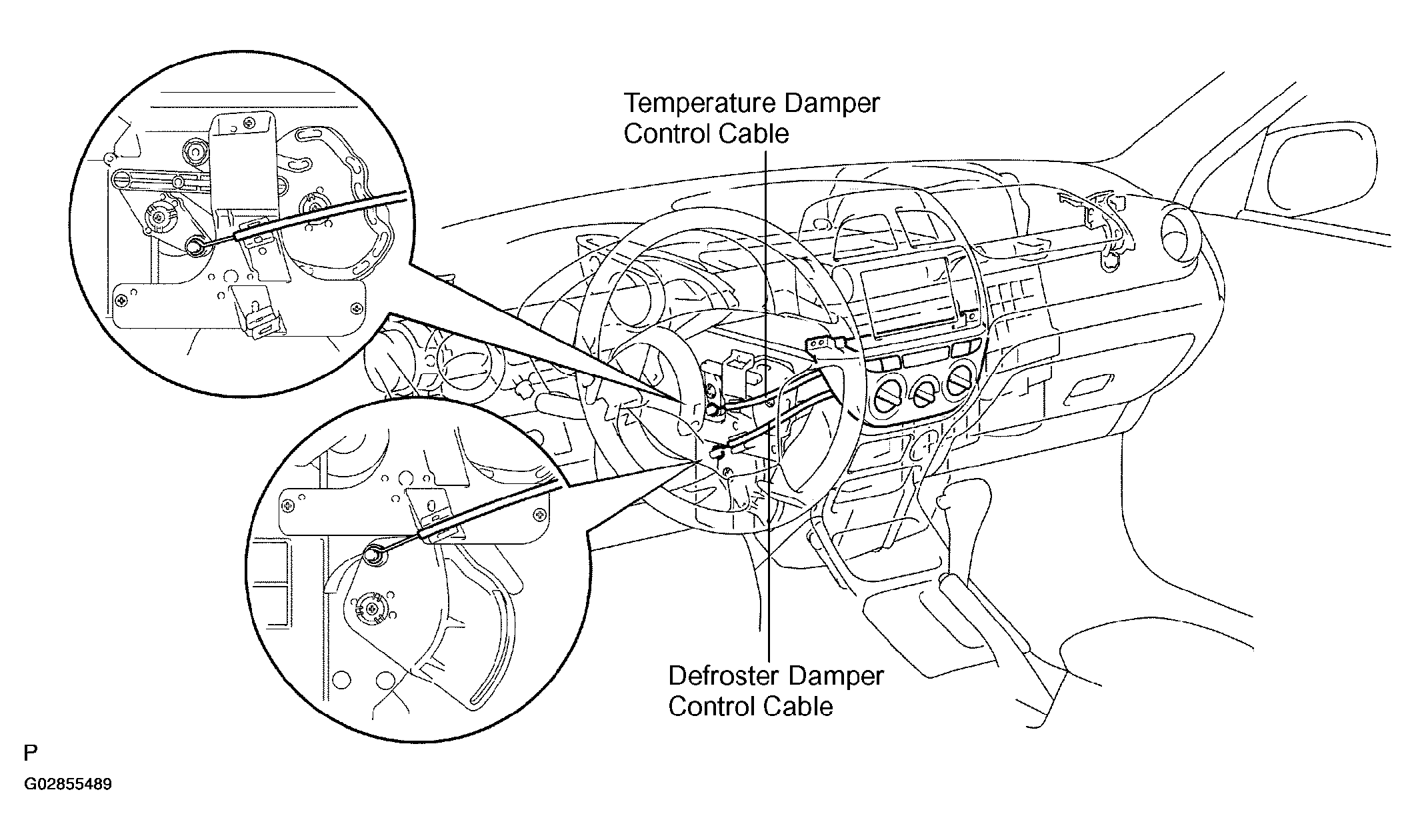

Fig 3: Disconnecting Heater Control Cables
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER CONTROL ASSEMBLY

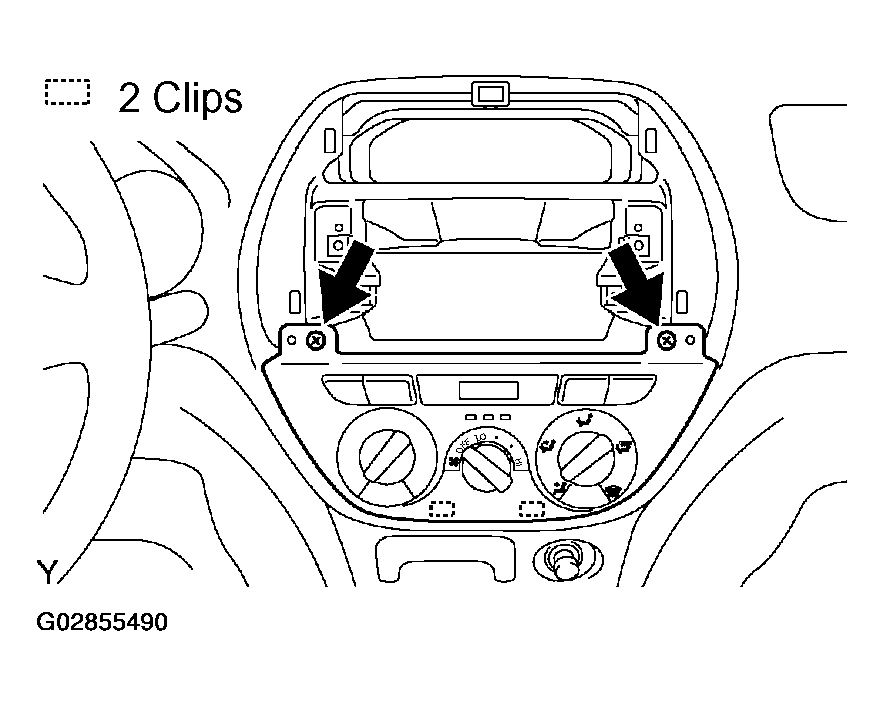

Fig 4: Removing Heater Control Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws.
2. Using a screwdriver, remove the heater control assembly.
  NOTE: Tape the screwdriver tip before use.
3. Disconnect the 2 connectors.
