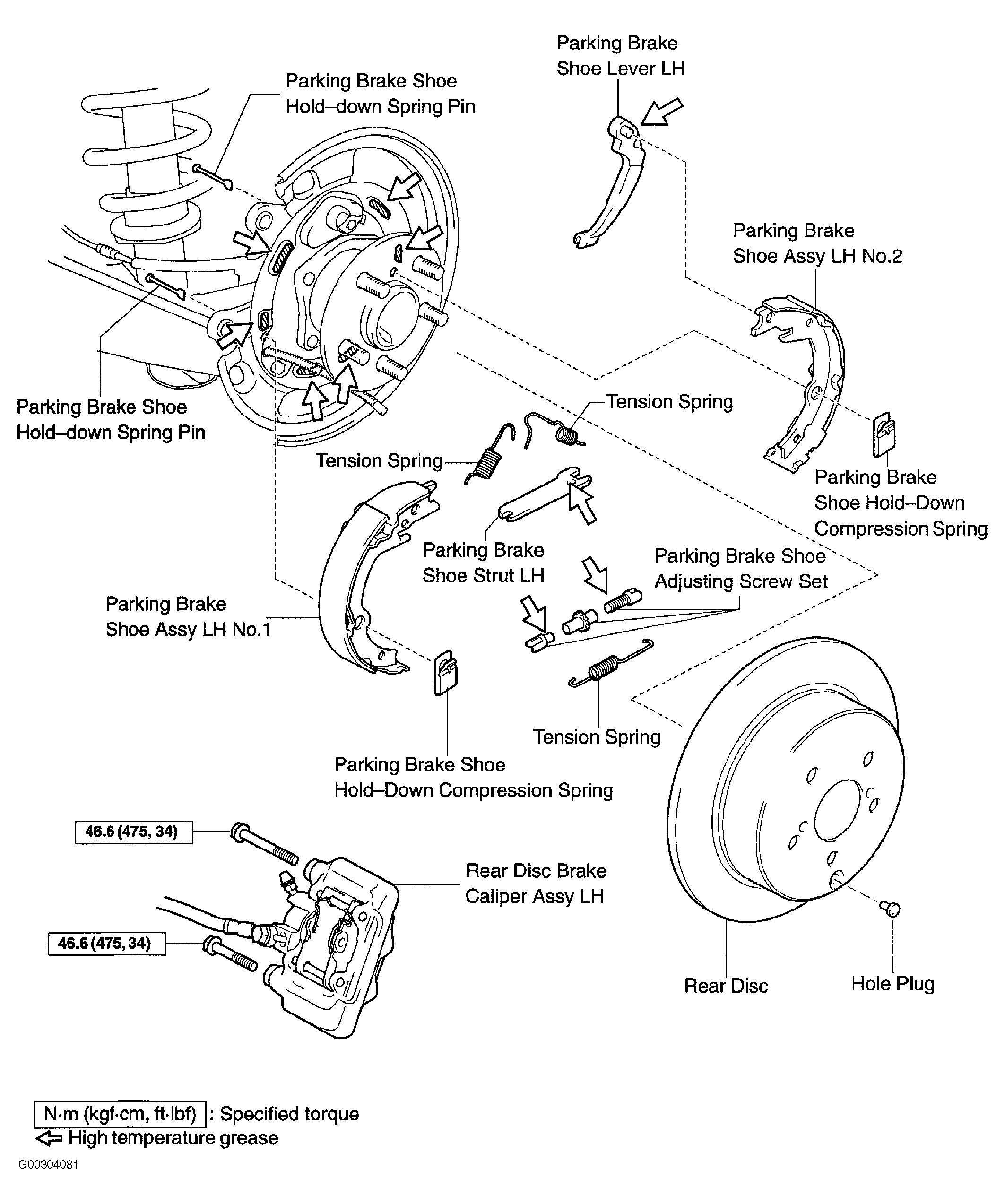

Rear Parking Brake (Internal Shoe): Installation
To install, reverse removal procedure. Apply non-melting grease to sliding surfaces of shoes and adjuster threads. Align rotor to hub marks made during rear brake rotor removal procedure. Adjust parking brake shoe clearance. See REAR BRAKE SHOES under ADJUSTMENTS. To complete installation, reverse removal procedure.
