Master Cylinder: Installation

To install, reverse removal procedure. Tighten nuts to specification. See TORQUE SPECIFICATIONS . Bleed brake system. See BLEEDING BRAKE SYSTEM .

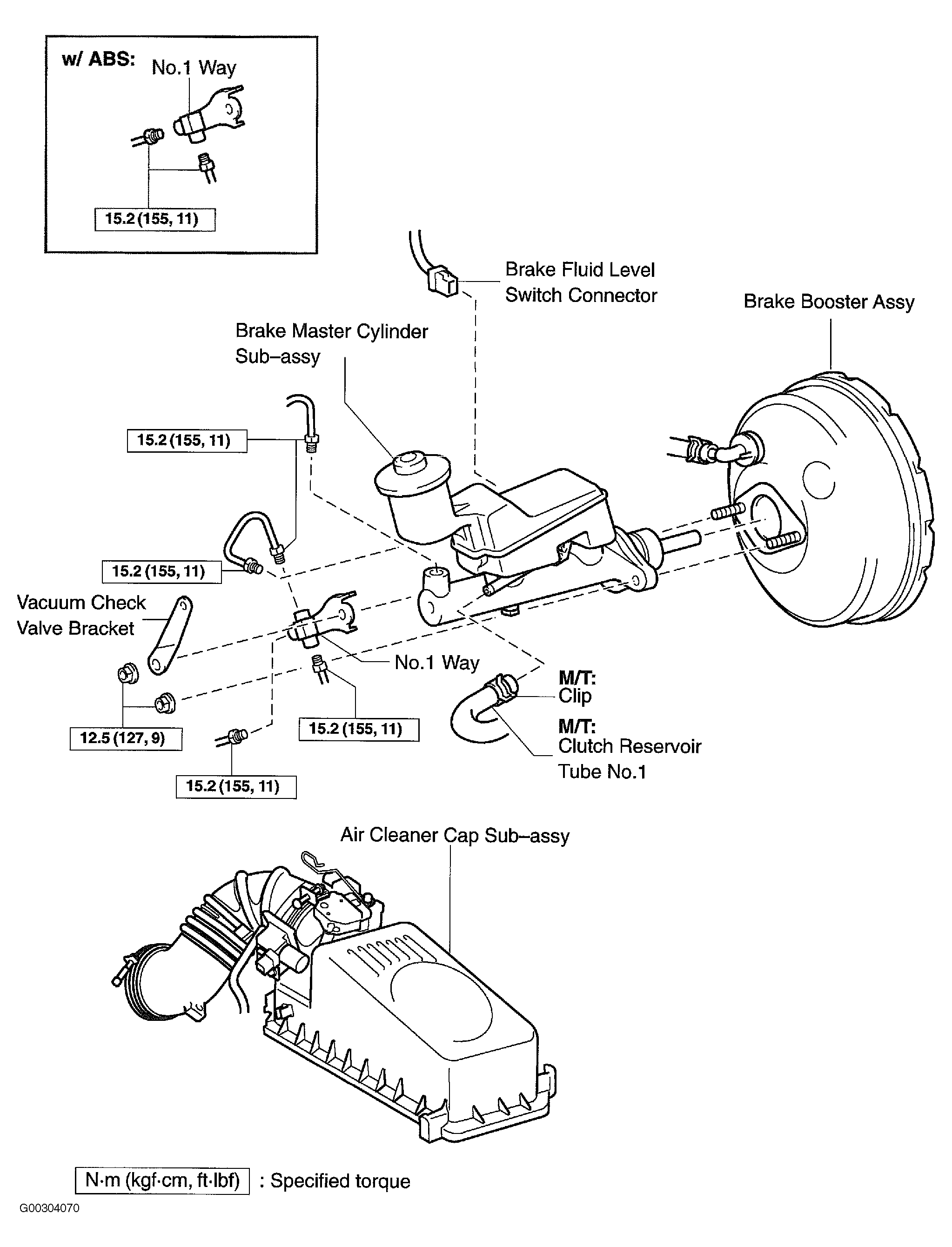

Fig 1: Locating Brake Master Cylinder Components
G00304070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
