Front Disc Brake Pads: Installation

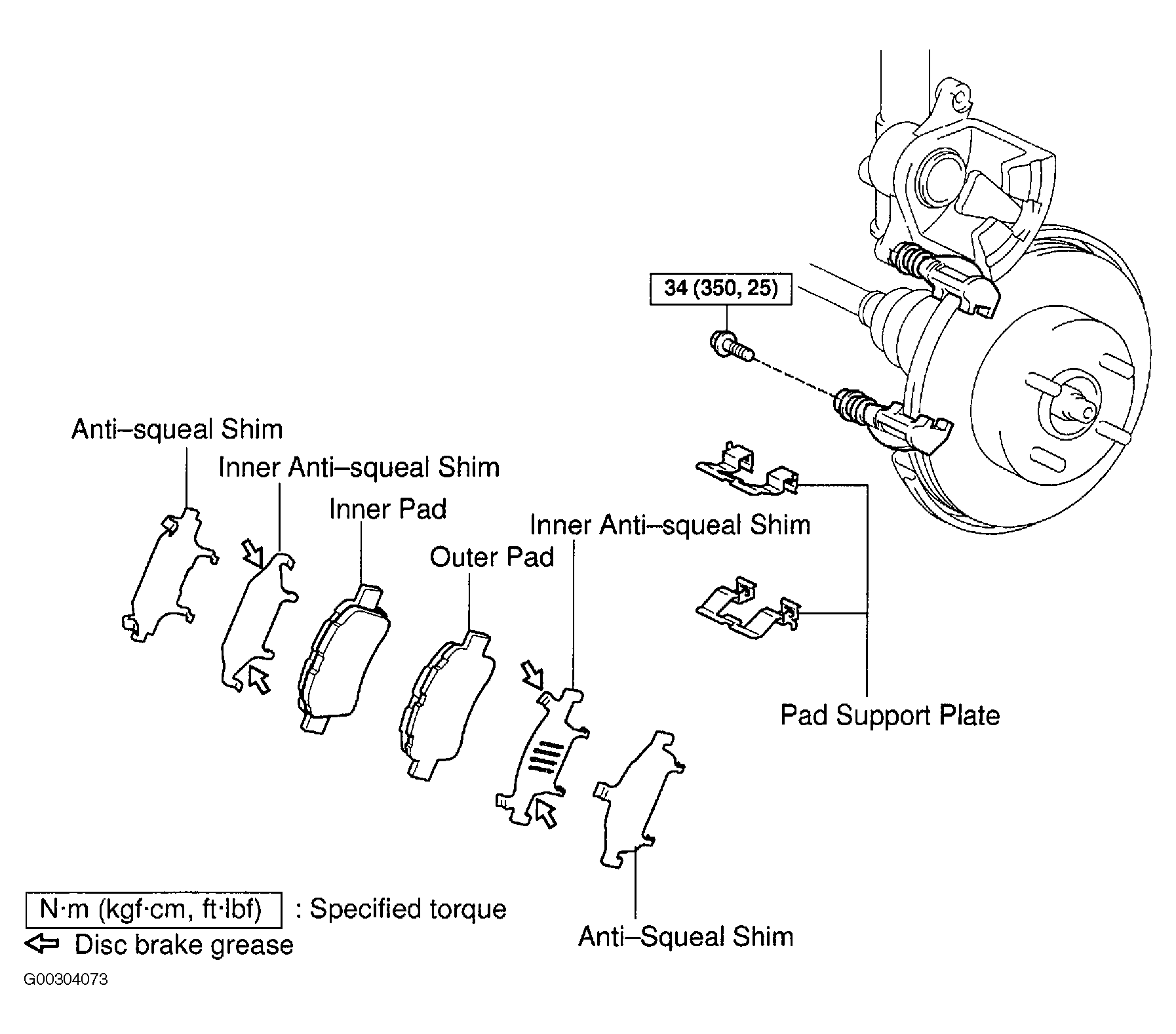

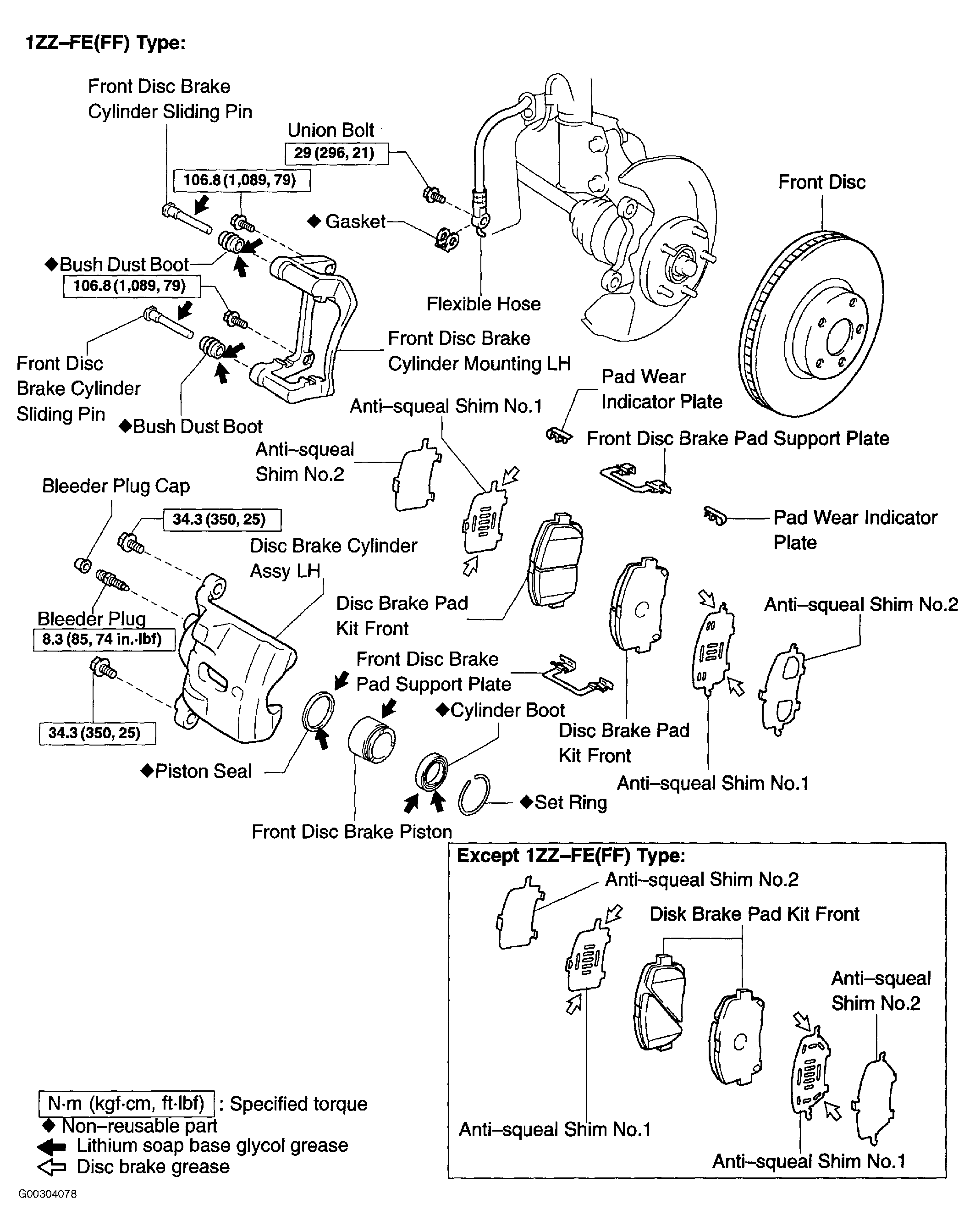

- Install pad support plates and NEW pads. Install pad wear indicators, anti-squeal shims and anti-rattle springs (if equipped). Apply disc brake grease to inner anti-squeal shims. DO NOT allow grease to contact rubbing face of pads. Wear indicator must be on top side of pad.NOTE: Pushing piston into caliper bore forces fluid back into master cylinder reservoir. Remove reservoir cap when compressing piston.
- Press piston into caliper bore. DO NOT let piston dust boot wedge against edge of pads. To complete installation, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Check reservoir fluid level.
