Brake Booster: Installation

To install, reverse removal procedure. Use NEW gasket for mounting brake booster. Tighten nuts to specification. See TORQUE SPECIFICATIONS .

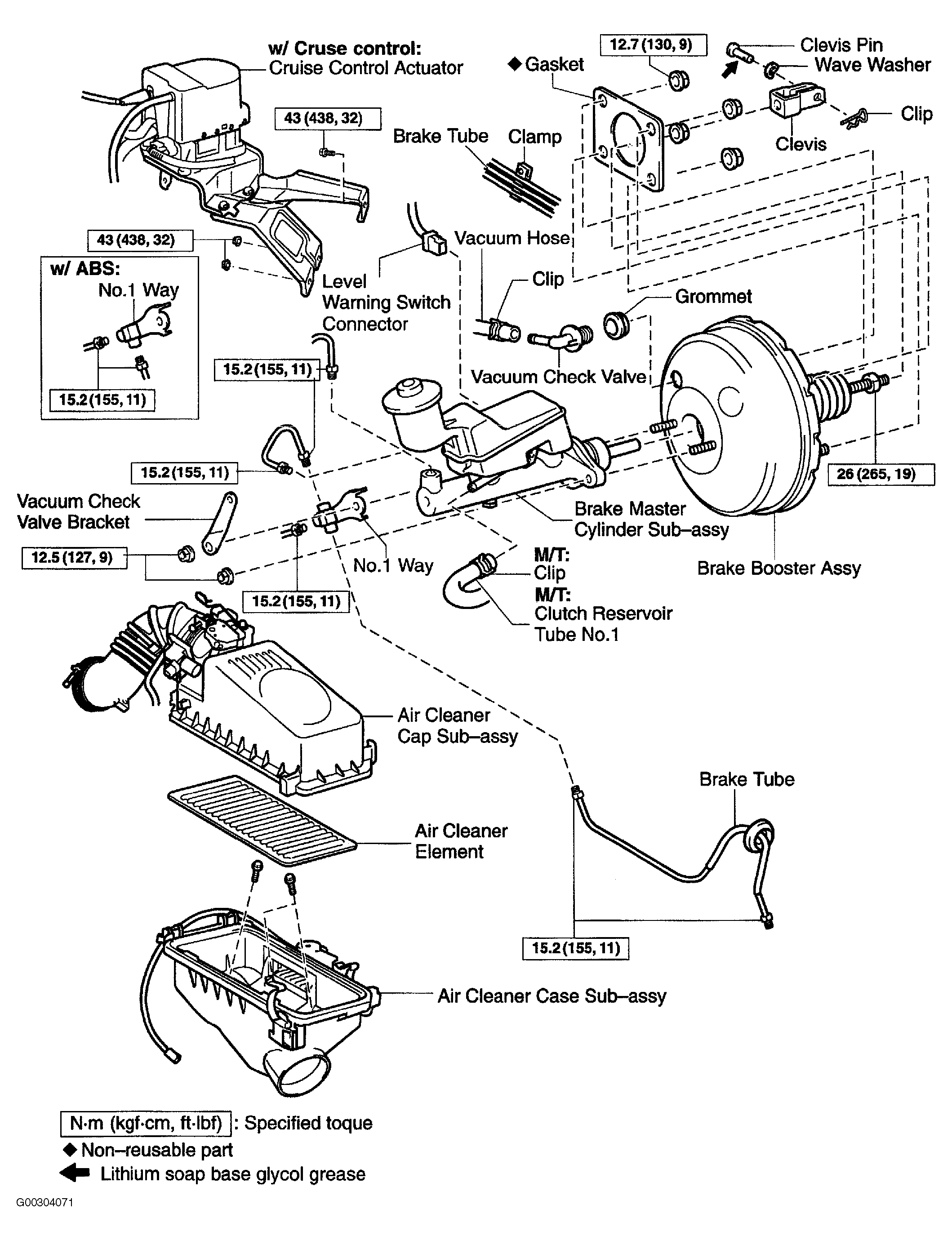

Fig 1: Locating Brake Booster Assembly Components
G00304071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
