Front Bumper: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE RADIATOR GRILLE LOWER

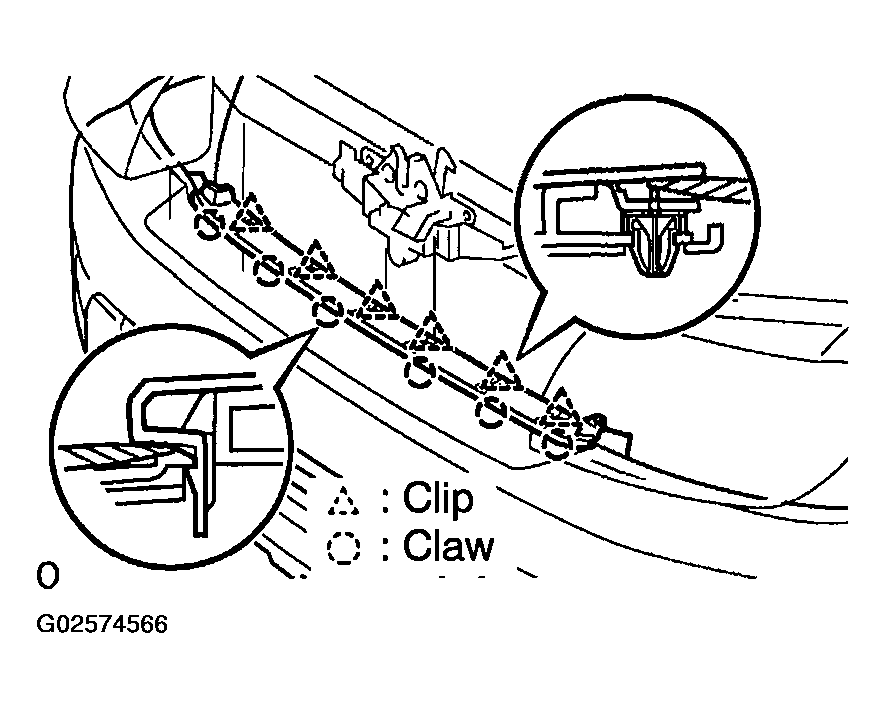

   1. Using a screwdriver, disengage the 6 clips and 6 claws, and remove the radiator grille.

   HINT:

   Tape the screwdriver tip before use.

   Fig 1: Removing Radiator Grille Lower

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT BUMPER COVER SUB-ASSY
   1. Disconnect the 2 turn signal lamp connectors.
   2. w/ Fog lamp:

      Disconnect the 2 fog lamp connectors.

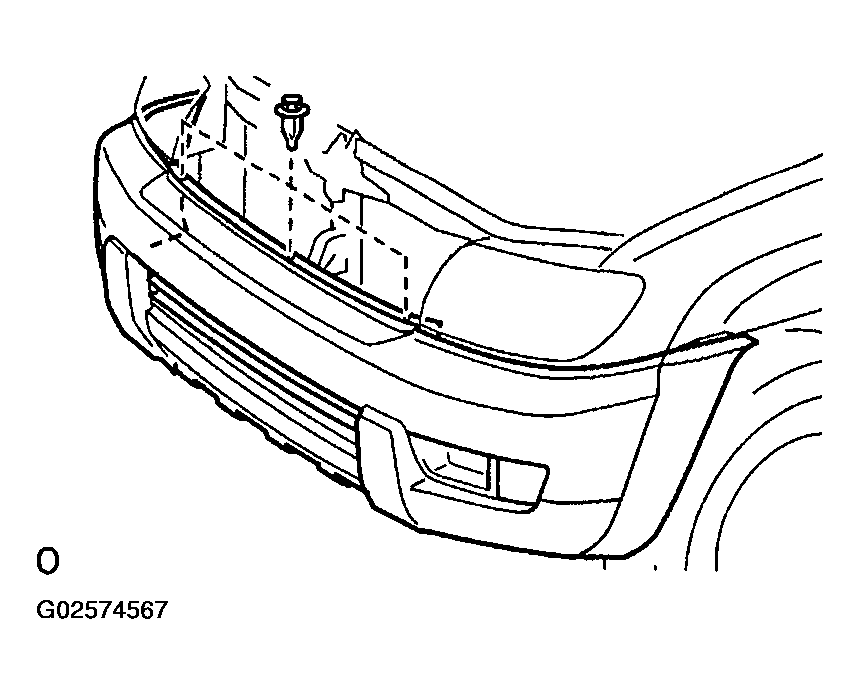

   3. Remove the 3 clips.
      Fig 2: Removing Front Bumper Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

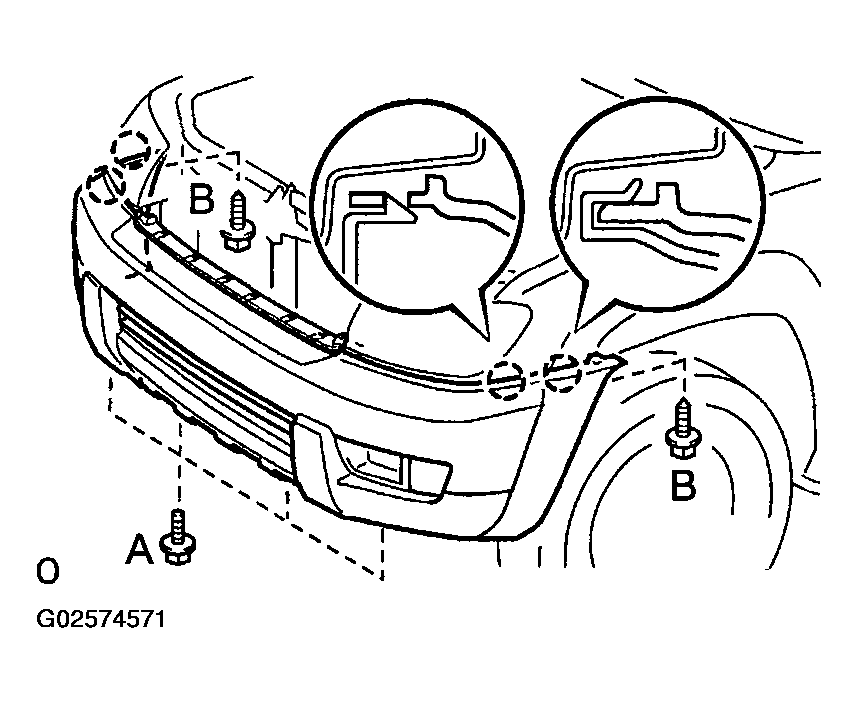

   4. Remove the 6 bolts and front bumper cover.
   5. Using a screwdriver, disengage the 4 claws and remove the bumper cover.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Removing Front Bumper Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT BUMPER ENERGY ABSORBER
4. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSY

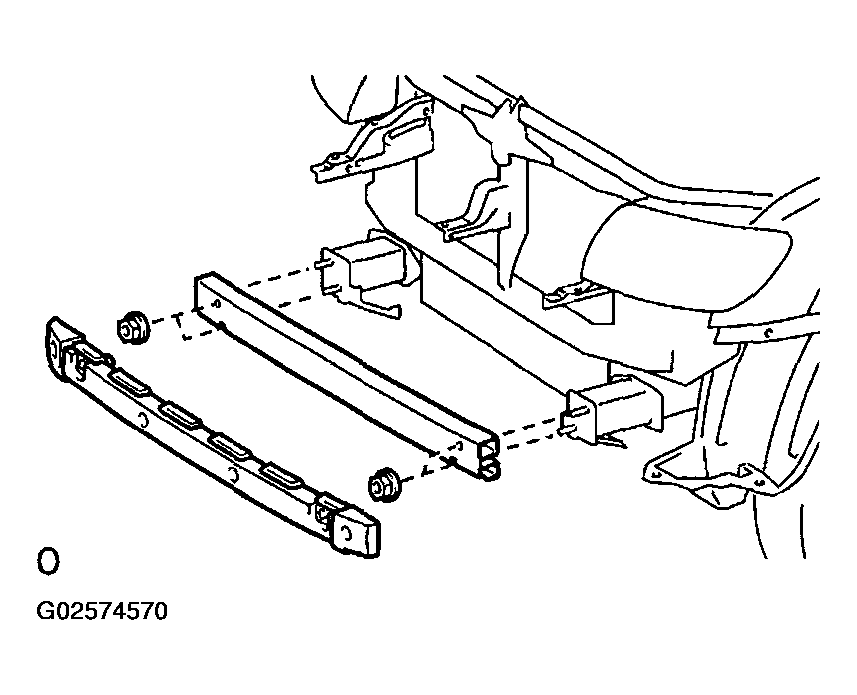

   1. Remove the 4 nuts and bumper reinforcement.
   Fig 4: Removing Front Bumper Reinforcement Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT BUMPER REINFORCEMENT PLATE
   1. Using a screwdriver, remove the reinforcement plate.

   HINT:

   Tape the screwdriver tip before use.

6. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET LH
   1. Using a screwdriver, remove the mounting bracket.

   HINT:

   Tape the screwdriver tip before use.

7. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET RH

   HINT:

   Use the same procedures described above for the LH side.

8. REMOVE FRONT BUMPER SIDE SUPPORT LH
   1. Remove the 2 bolts and side support.
9. REMOVE FRONT BUMPER SIDE SUPPORT RH
10. REMOVE FRONT VALANCE PANEL
    1. Remove the 5 nuts and valance panel.
11. REMOVE FRONT BUMPER HOLE COVER LH (W/O FOG LAMP)
    1. Remove the 2 screws and hole cover LH.
12. REMOVE FRONT BUMPER HOLE COVER RH (W/O FOG LAMP)
    1. Remove the 2 screws and hole cover RH.
13. REMOVE FOG LAMP ASSY LH (W/ FOG LAMP) (SEE  FOG LAMP UNIT LH  )
14. REMOVE FOG LAMP ASSY RH (W/ FOG LAMP)
15. REMOVE FRONT TURN SIGNAL LAMP LH (SEE  FRONT TURN SIGNAL LAMP LENS LH  )
16. REMOVE FRONT TURN SIGNAL LAMP RH
17. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSY
    1. Install the bumper reinforcement with the 4 nuts.

    Torque: 58 N.m (591 kgf.cm, 43 ft.lbf)

    Fig 5: Installing Front Bumper Reinforcement Sub-Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL FRONT BUMPER ENERGY ABSORBER
19. INSTALL FRONT TURN SIGNAL LAMP LH (SEE  FRONT TURN SIGNAL LAMP LENS LH  )
20. INSTALL FRONT TURN SIGNAL LAMP RH
21. INSTALL FOG LAMP ASSY LH (W/ FOG LAMP) (SEE  FOG LAMP UNIT LH  )
22. INSTALL FOG LAMP ASSY RH (W/ FOG LAMP)
23. INSTALL FRONT BUMPER HOLE COVER RH (W/O FOG LAMP)
    1. Install the hole cover RH with the 2 screws.
24. INSTALL FRONT BUMPER HOLE COVER LH (W/O FOG LAMP)
    1. Install the hole cover LH with the 2 screws.
25. INSTALL FRONT VALANCE PANEL
    1. Install the valance panel with the 5 nuts.

       Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

26. INSTALL FRONT BUMPER SIDE SUPPORT RH
    1. Install the front bumper side support RH with the 2 screws.

       Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)

27. INSTALL FRONT BUMPER SIDE SUPPORT LH
    1. Install the front bumper side support LH with the 2 screws.

       Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)

28. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET RH
    1. Install the front bumper side mounting bracket RH.
29. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET LH
    1. Install the front bumper side mounting bracket LH.
30. INSTALL FRONT BUMPER REINFORCEMENT PLATE
    1. Install the front bumper reinforcement plate.
31. INSTALL FRONT BUMPER COVER SUB-ASSY

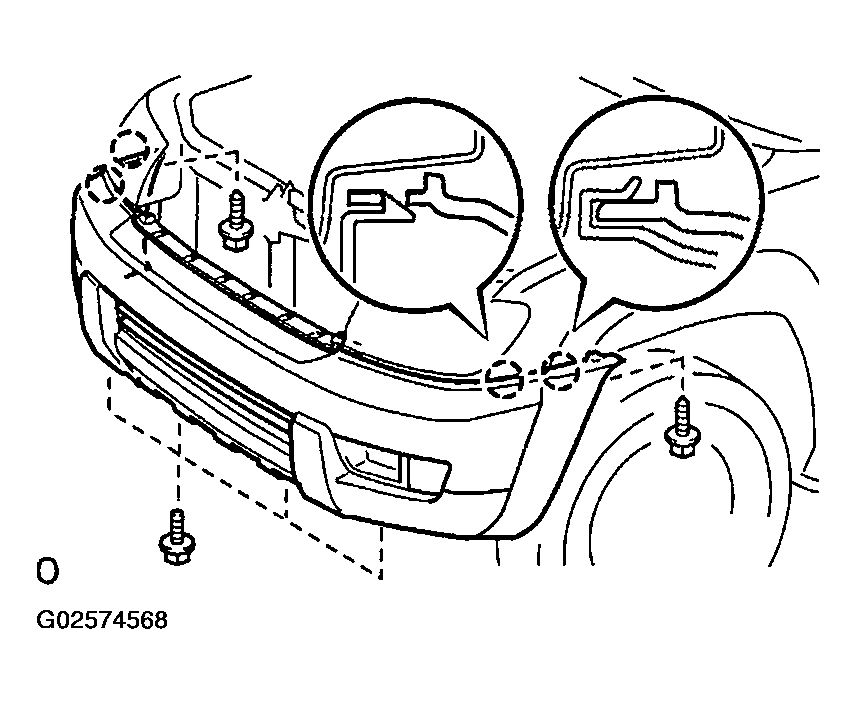

    1. Install the bumper cover with the 6 bolts.

       Torque:

       • 5.0 N.m (51 kgf.cm, 44 in.lbf) (bolt A)
       • 3.0 N.m (31 kgf.cm, 27 in.lbf) (bolt B)
    2. Install the 3 clips.
    3. w/ Fog lamp:

       Connect the 2 fog lamp connectors.

    4. Connect the 2 turn signal lamp connectors.
    Fig 6: Installing Front Bumper Cover Sub-Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. INSTALL RADIATOR GRILLE LOWER
    1. Install the radiator grille.
33. ADJUST FOG LIGHT AIM (W/ FOG LAMP) (SEE  ADJUSTMENT  )
34. CHECK FOG LIGHT AIM (W/ FOG LAMP) (SEE  ADJUSTMENT  )
