Floor Shift ASSY: Adjustment

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SHIFT LEVER POSITION
    1. When shifting from P to R position only with ignition switch ON and depress brake pedal, make sure that the shifting lever moves smoothly and can be moderately operated.
    2. When starting engine, make sure that the vehicle moves forward when shifting from N to D position and moves rearward when shifting to R position.
  2. ADJUST SHIFT LEVER POSITION
    1. Loosen the nut.
    2. Push the control shaft fully rearward.
    3. Return the control shaft lever 2 notches to N position.
    4. Set the shift lever to N position.
    5. While holding the shift lever lightly toward the R position side, tighten the nut.

      Torque: 15.6 kgf.cm (159 kgf.cm, 12 ft.lbf)

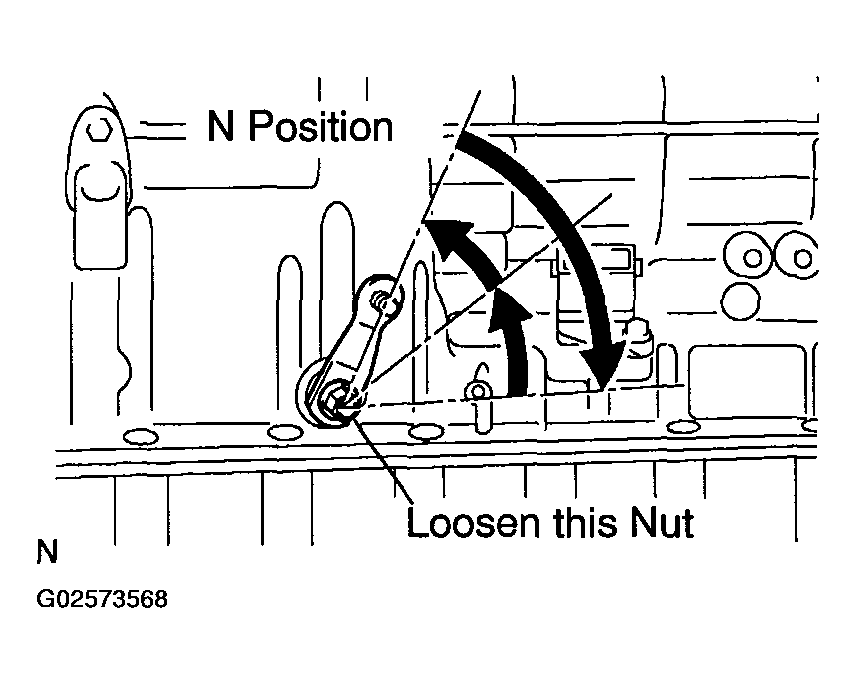

      Fig 1: Adjusting Shift Lever Position
      G02573568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
