System Diagram

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

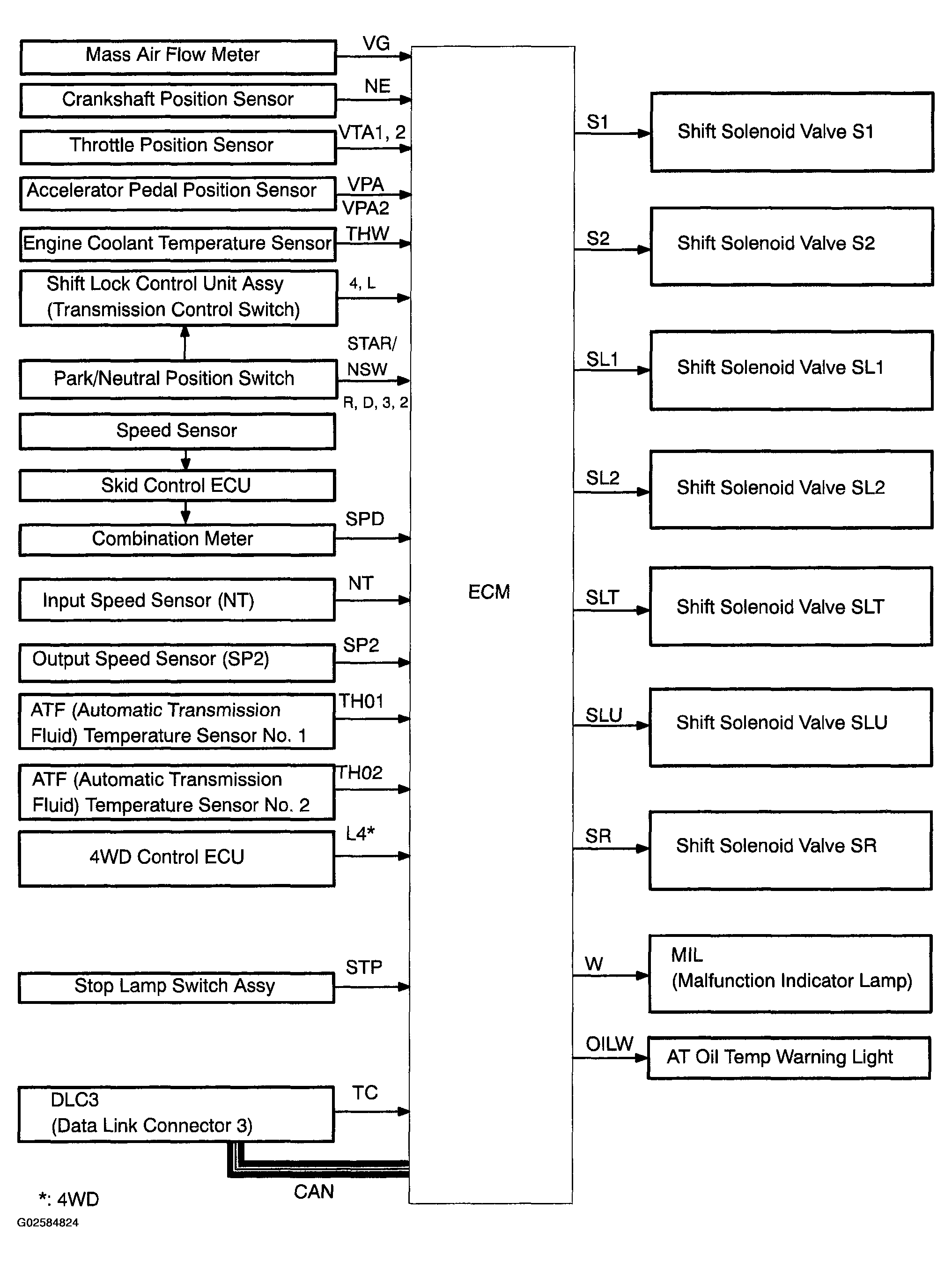

The configuration of the electronic control system in the A750E/A750F automatic transmission is as shown in the following chart.

Fig 1: Identifying Electronic Controlled Automatic Transmission System Diagram
G02584824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
