DTC P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU): Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

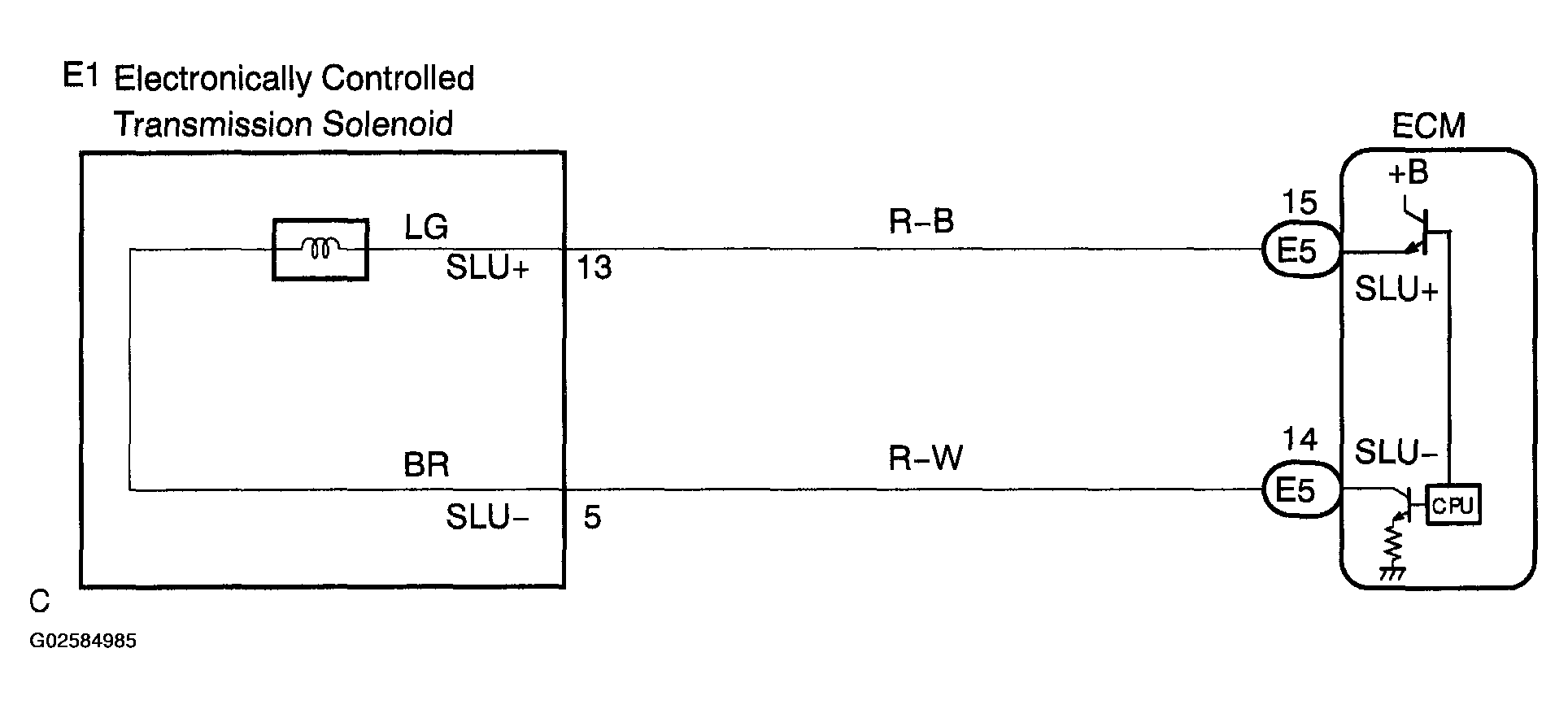

Fig 1: Identifying Torque Converter Clutch Pressure Control Solenoid Wiring Diagram
G02584985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
