System Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

The 1-2 shift valve performs shifting to 1st gear and other gears.

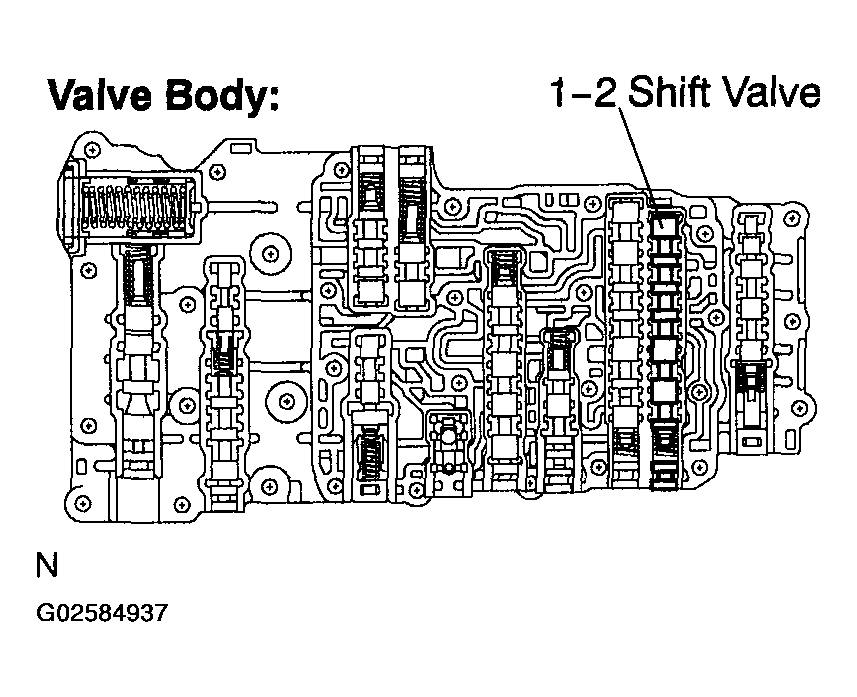

Fig 1: Identifying Shift Valve
G02584937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

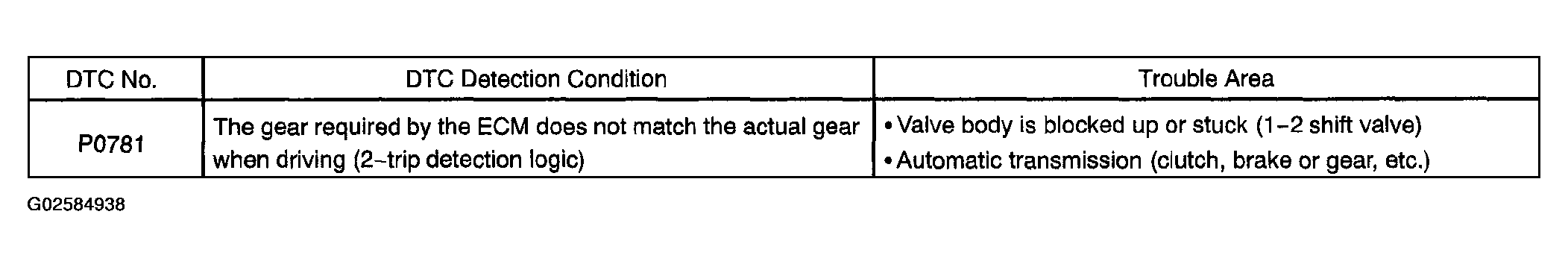

Fig 2: Identifying DTC Chart
G02584938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
