Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten labor time.

NOTE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Warm up the engine.
Turn the ignition switch off.
Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
Turn the ignition switch to the ON position.
Turn on the tester.
Select the item "DIAGNOSIS / ENHANCED OBD II / DATA LIST".
According to the display on tester, read the "DATA LIST".

DIAGNOSIS CHART

Item	Measurement Item/ Range (display)	Normal Condition
SPD (SP2)	Output shaft Speed/ min.: 0 km/h (0 mph) max.: 255 km/h (158 mph)	Vehicle stopped: 0 km/h (0 mph) [HINT] Equal to vehicle speed

HINT:

SPD (SP2) is always 0 while driving:
Open or short in the sensor or circuit.
The SPD (SP2) value displayed on the tester is much lower than the actual vehicle speed:
Sensor trouble, improper installation, or intermittent connection trouble of the circuit.

INSPECT SPEED SENSOR INSTALLATION
1. Check the speed sensor (SP2) installation.
  OK:

  The installation bolt is tightened properly and there is no clearance between the sensor and transmission case.

  Fig 1: Checking Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE SPEED SENSOR(SP2)
2. OK: GO TO NEXT STEP.

Disconnect the speed sensor connector from the transmission.

Measure the resistance according to the value(s) in the table below.

Standard:

SPEED SENSOR STANDARD CHART

Tester Connection	Specified Condition 20°C (68°F)
1 -2	560 to 680 Ω

Fig 2: Inspecting Speed Sensor (Sp2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPEED SENSOR(SP2)
OK: GO TO NEXT STEP.

CHECK HARNESS AND CONNECTOR (SPEED SENSOR - ECM)

Connect the speed sensor connector.
Disconnect the ECM connector.

Measure the resistance according to the value(s) in the table below.

Standard:

HARNESS AND CONNECTOR STANDARD CHART

Tester Connection	Specified Condition 20°C (68°F)
E5 - 34 (SP2+) - E5 - 26 (SP2-)	560 to 680 Ω

Measure the resistance according to the value(s) in the table below.
Standard (Check for short):

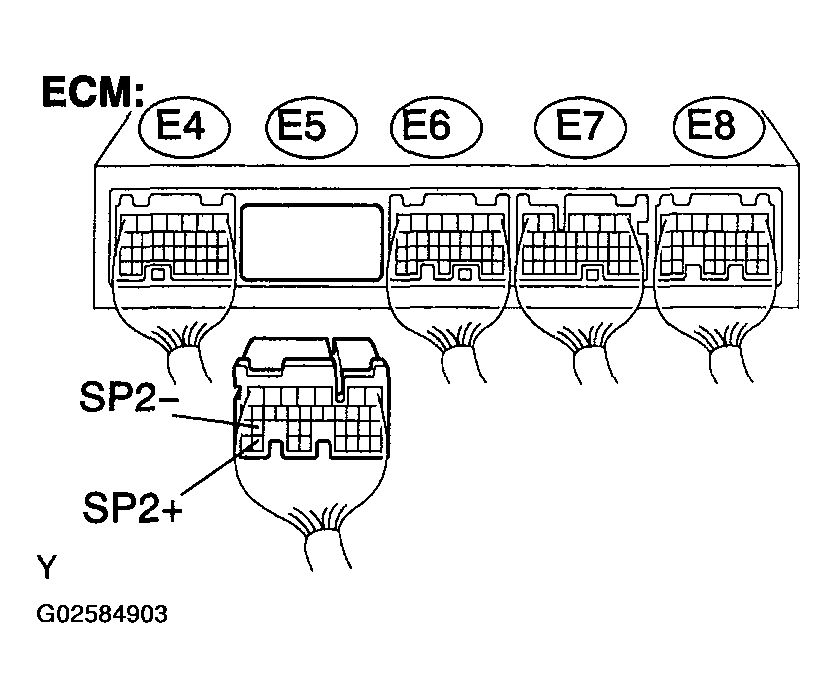

Fig 3: Connecting Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Tester Condition Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: GO TO NEXT STEP.

REPLACE ECM (2UZ-FE)
