Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT TERMINAL VOLTAGE(L4 - BODY GROUND)
    1. Disconnect the four wheel drive control ECU connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)

      Tester Connection Specified Condition
      F9 - 24 (L4) - Body ground 10 to 14 V
    1. OK: CHECK AND REPLACE FOUR WHEEL DRIVE CONTROL ECU (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
      Fig 1: Inspecting Terminal Voltage (L4 - Body Ground)
      G02584821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. NG: GO TO NEXT STEP
  2. INSPECT TERMINAL VOLTAGE(L4 - BODY GROUND)
    1. Turn the ignition switch ON.
    2. Measure the voltage according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)

      Tester Connection Specified Condition
      E6 - 13 (L4) - Body ground 10 to 14V
    1. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )

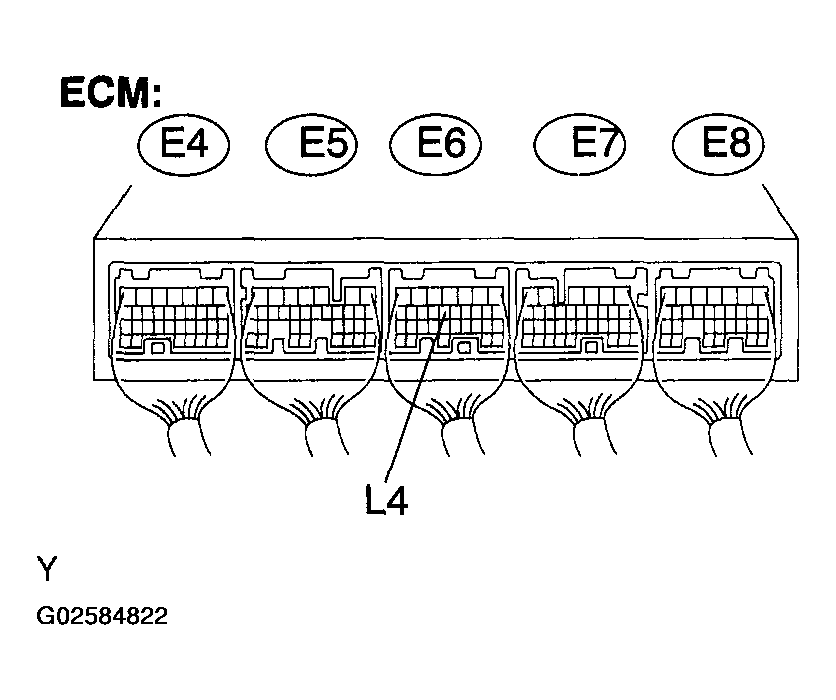

      Fig 2: Inspecting Terminal Voltage (ECM L4 - Body Ground)
      G02584822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. NG: GO TO NEXT STEP

      REPLACE  ECM (1GR-FE)
