Circuit Description
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
ATF (Automatic Transmission Fluid) temperature sensor No.2 is on the transmission and just in front of the oil cooler inlet pipeline.
If ECM detects the abnormally high temperature of ATF by this sensor, it draws driver's attention by illuminating the warning lamp.
HINT:
- The temperature of ATF easily rises when towing, climbing hills and in traffic, etc.
- If the ATF temperature sensor No.2 becomes short-circuited, the signal that indicates the ATF temperature is 150°C (302°F) or higher is input in ECM.

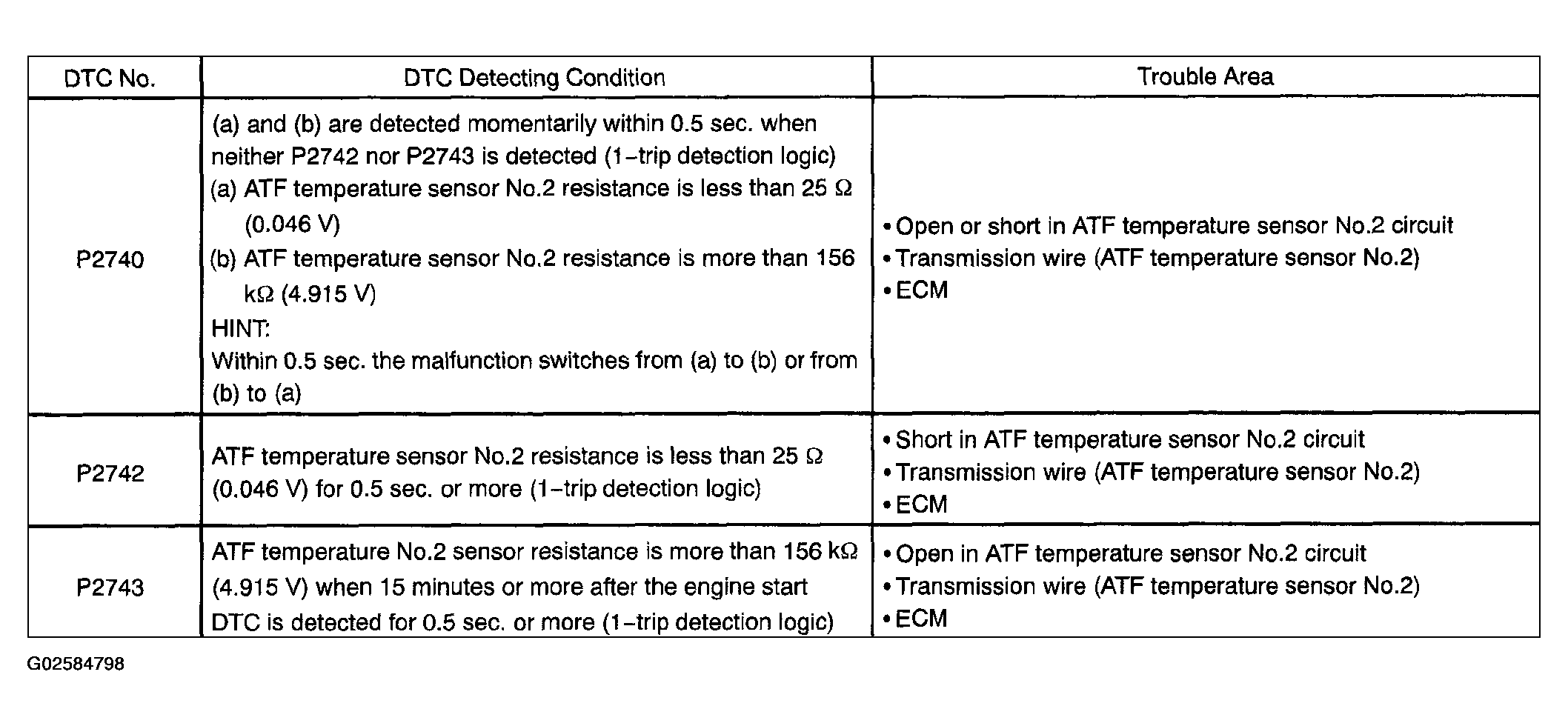

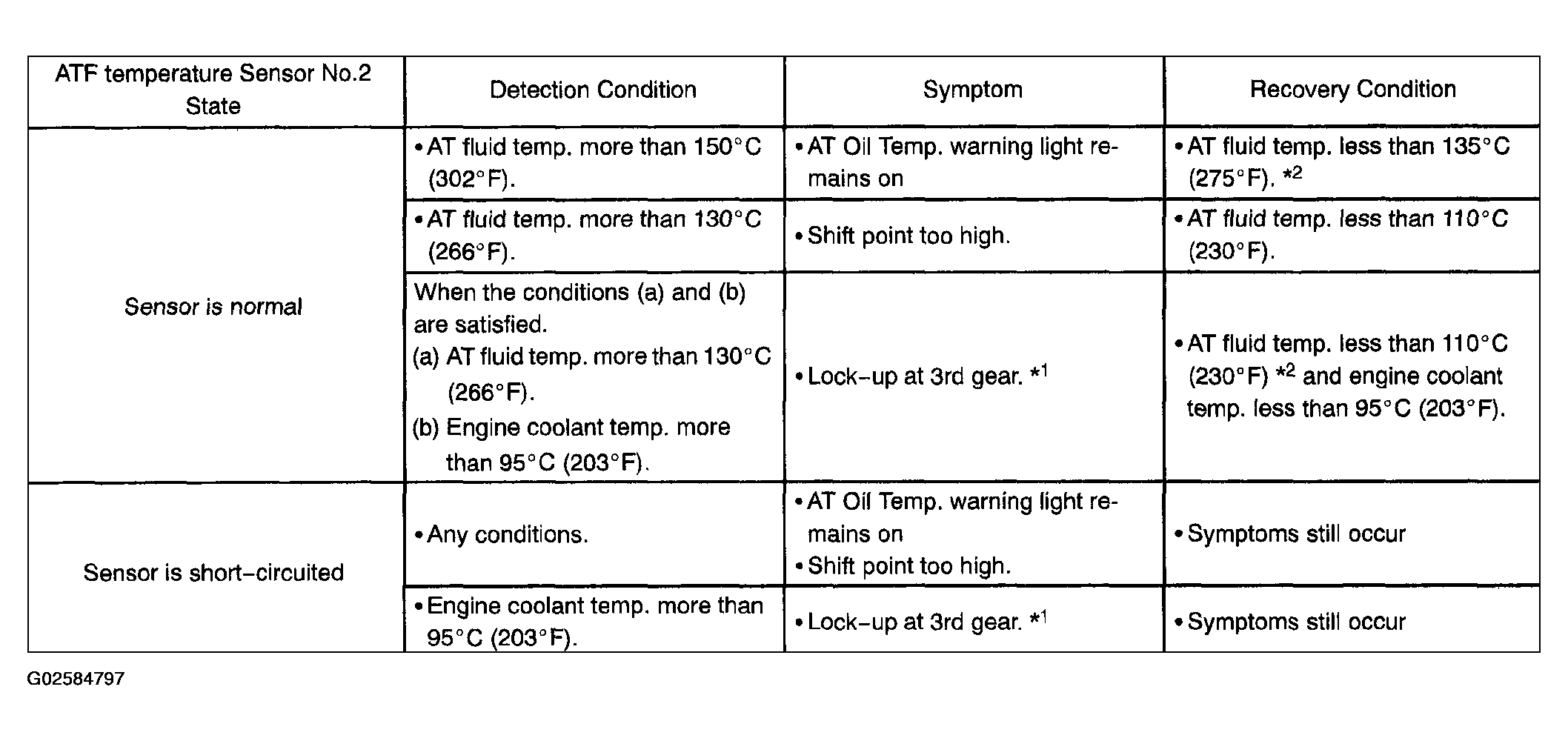

Vehicle conditions when sensor is normal and when the sensor is short-circuited are indicated in the table below.
HINT:
*1: When AT fluid temperature is normal, transmission locks up at 5th gear with the shift lever in D position and at 4th gear with the shift lever in 4 position.
*2: When AT fluid temperature is in normal range, it decreases to less than 135°C (275°F) within 5 minutes with the shift lever in P or N position in an idling state.
