Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

See DTC P2714 PRESSURE CONTROL SOLENOID "D" PERFORMANCE (SHIFT SOLENOID VALVE SLT)  .

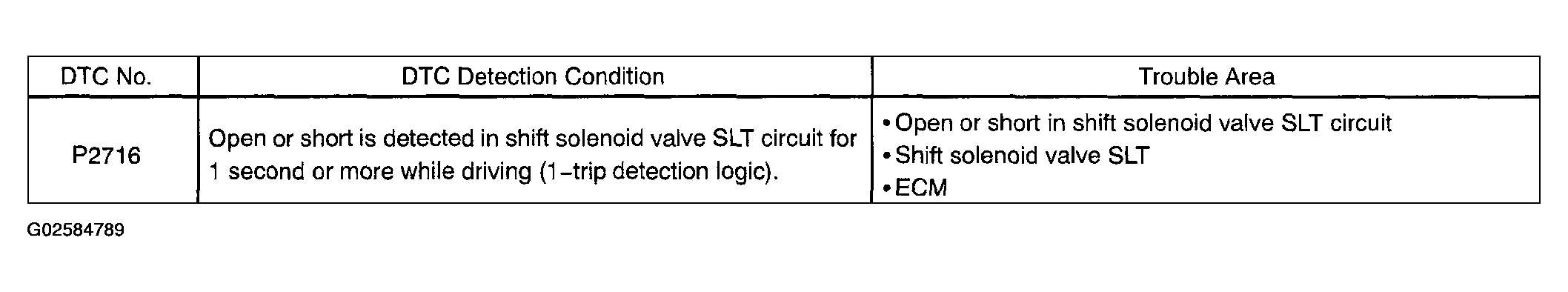

Fig 1: DTC Trouble Detection Chart
G02584789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
