Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The shift solenoid valve SL2 is turned on/off normally when the shift lever is in the D position:

Inspection Procedure Data List Chart

ECM command gearshift	1st	2nd	3rd	4th	5th
Shift solenoid valve SL2	ON	ON	ON	ON	OFF

INSPECT TRANSMISSION WIRE (SL2)

Disconnect the transmission wire connector from the transmission.

Measure the resistance according to the value(s) in the table below.

Standard:

TESTER CONNECTION SPECIFIED CONDITION

Test Connection	Specified Condition 20°C (68°F)
11 (SL2+) -3 (SL2-)	5.0 to 5.6 Ω

Fig 1: Inspecting Transmission Wire (SL2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard (Check for short):

TESTER CONNECTION SPECIFIED CONDITION (CHECK FOR SHORT)

Test Connection	Specified Condition
11 (SL2+) - Body ground	10 kΩ or higher
3 (SL2-) - Body ground	^

NG: Go to Step 3
OK: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE - ECM)

Connect the transmission connector to the transmission.
Disconnect the connector from the ECM.

Measure the resistance according to the value(s) in the table below.

Standard:

TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)

Tester Connection	Specified Condition 20°C (68°F)
E5 - 17 (SL2+) - E5 - 16 (SL2-)	5.0 to 5.6 Ω

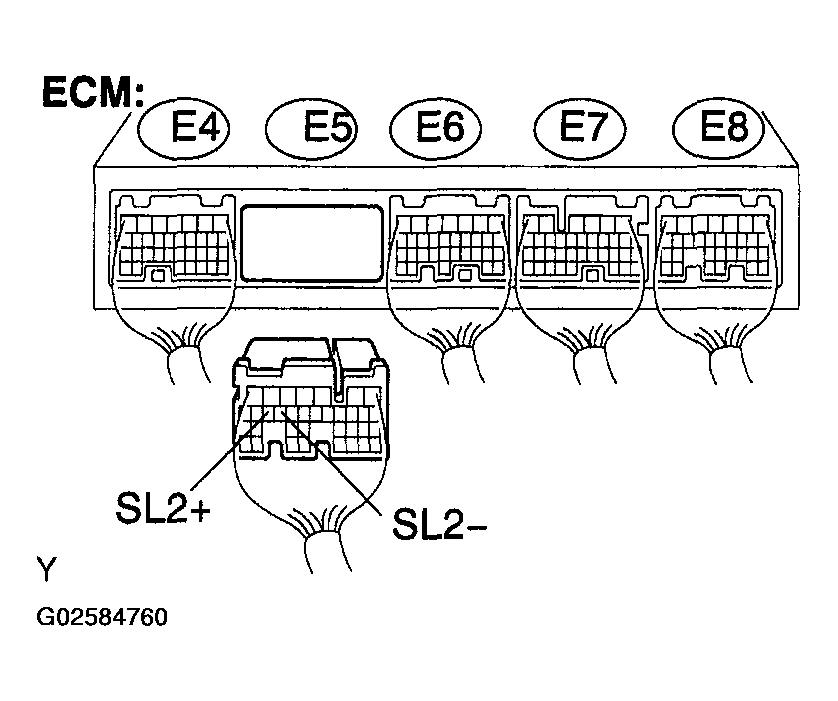

Fig 2: Checking Harness And Connector (Transmission Wire - ECM)

Measure the resistance according to the value(s) in the table below.
Standard (Check for short):

Fig 3: Tester Connection Specified Condition Chart (Check For Short)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: GO TO NEXT STEP

REPLACE ECM (1GR-FE)

INSPECT SHIFT SOLENOID VALVE(SL2)

Remove the shift solenoid valve SL2.

Measure the resistance according to the value(s) in the table below.

Standard:

TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)

Tester Connection	Specified Condition 20°C (68°F)
1 - 2	5.0 to 5.6 Ω

Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
OK:

The solenoid makes an operating sound.

Fig 4: Inspecting Shift Solenoid Valve (SL2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SHIFT SOLENOID VALVE(SL2) (SEE TRANSMISSION VALVE BODY ASSY (A750E/A750F) )
OK: GO TO NEXT STEP

REPAIR OR REPLACE TRANSMISSION WIRE (A750E/A750F)
