Monitor Strategy

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

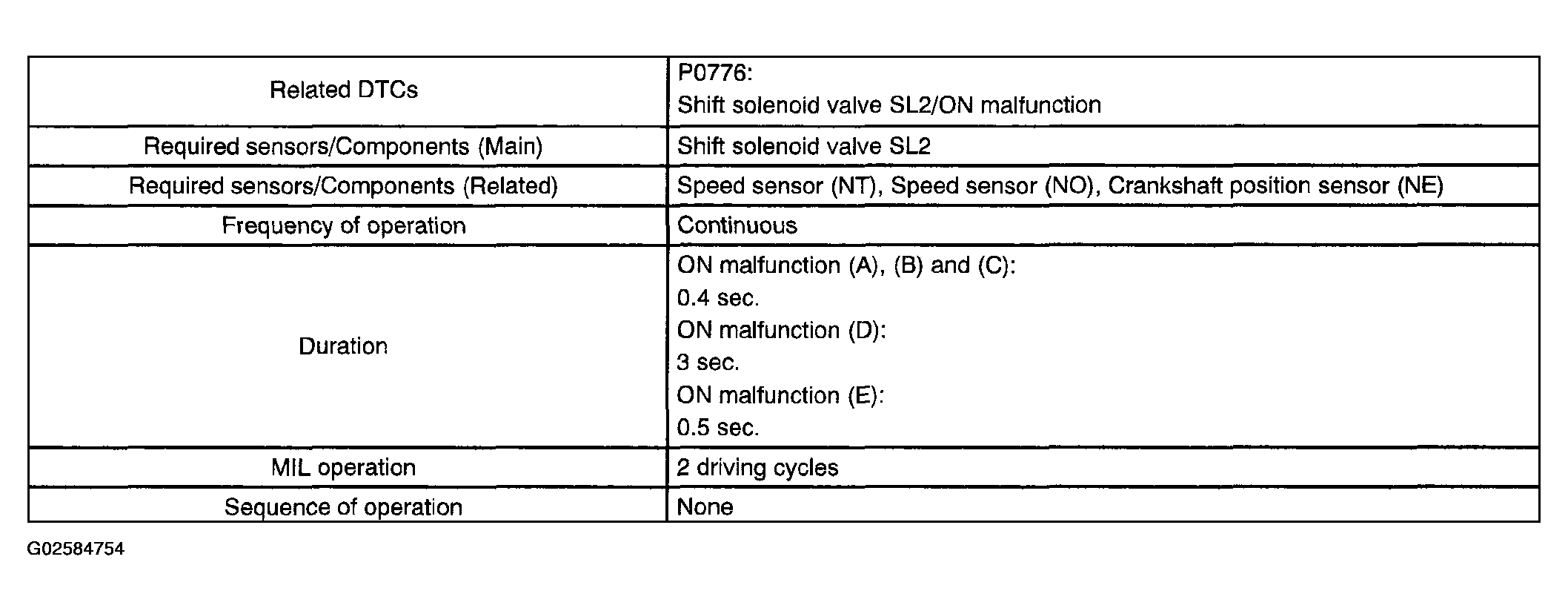

Fig 1: Monitor Strategy Chart
G02584754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
