Inspection Procedure

HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten labor time.

1. Warm up the engine.
2. Turn the ignition switch off.
3. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
4. Turn the ignition switch to the ON position.
5. Turn on the tester.
6. Select the item "DIAGNOSIS / ENHANCED OBD II / DATA LIST'.
7. According to the display on tester, read the "DATA LIST".

   Standard:

   Fig 1: Inspection Procedure Data List Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: In the table above, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

1. NG: Go to step 2
2. OK: Go to step   3

1. Remove the stop lamp switch assy
2. Measure the resistance according to the value(s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)



   Switch position	Tester Connection	Specified Condition
   Switch pin free	1 -2	Below 1 Ω
   Switch pin pushed in	Ω	10 kΩ or higher
   Switch pin free	3-4	10 kΩ or higher
   Switch pin pushed in	urarr	Below 1 Ω

   Fig 2: Inspecting Stop Lamp Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE STOP LAMP SWITCH ASSY
2. OK: Go to next step.

1. Install the stop lamp switch assy.
2. Measure the voltage according to the value(s) in the table below when the brake pedal is depressed and released.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)



   Condition	Tester Connection	Specified Condition
   Brake pedal is depressed	E8-15(STP)-Body ground	10 to 14 V
   Brake pedal is released	urarr	Below 1 V

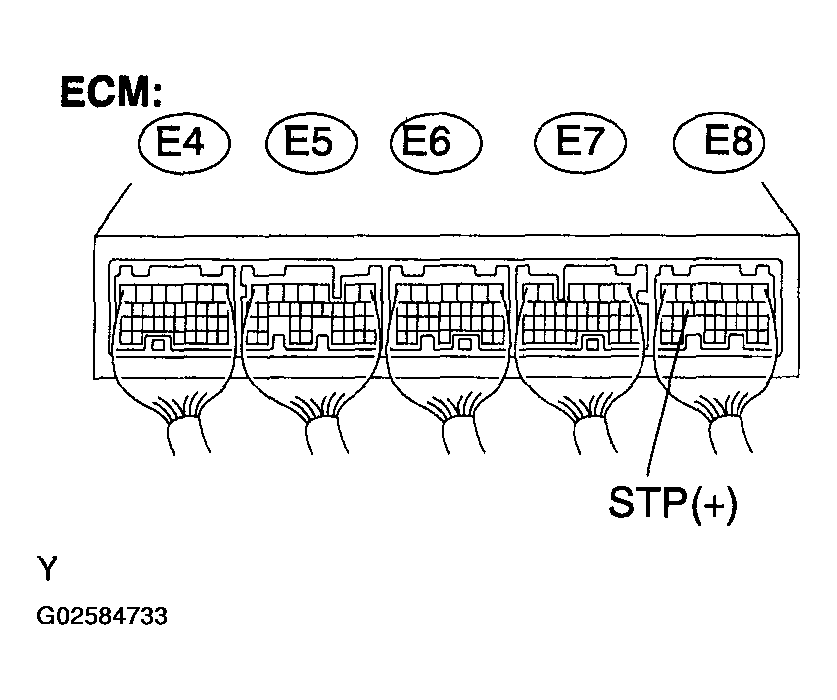

   Fig 3: Checking Harness And Connector (Stop Lamp Switch Assy - ECM)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
2. OK: Go to next step.

   REPLACE  ECM (1GR-FE)
