Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

DATA LIST
HINT:

According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten labor time.

NOTE: In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
1. Warm up the engine.
2. Turn the ignition switch off.
3. Connect the hand-held tester together with the CAN VIM (controller area network vehicle interface module) to the DLC3.
4. Turn the ignition switch to the ON position.
5. Turn on the tester.
6. Select the item "DIAGNOSIS / ENHANCED OBD II / DATA LIST".
7. According to the display on the tester, read the "DATA LIST".

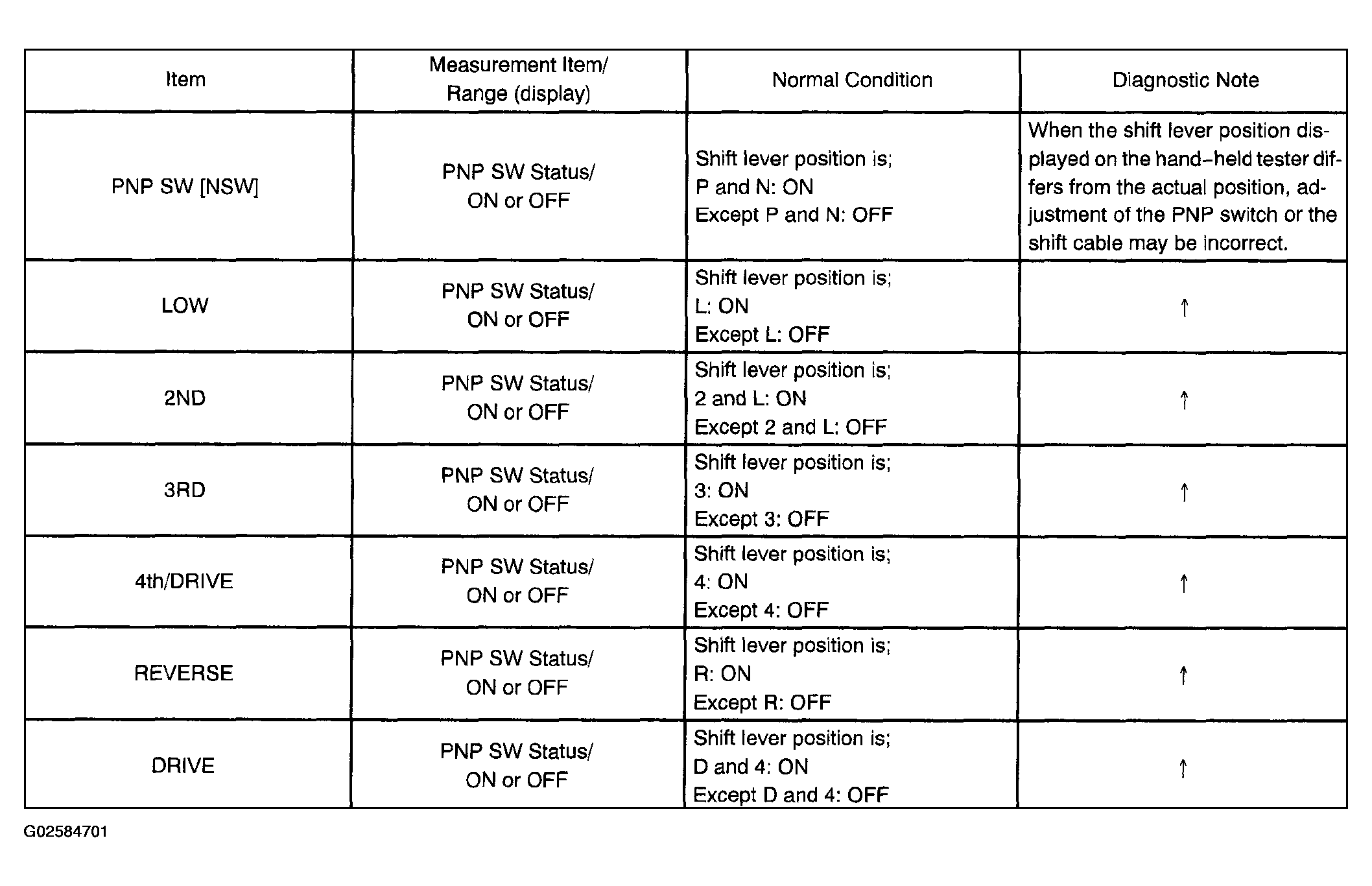

  Fig 1: Inspection Procedure Data List Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT PARK/NEUTRAL POSITION SWITCH ASSY

Jack up the vehicle.
Disconnect the park/neutral position switch connector.

Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Standard:

Fig 1: Inspecting Park/Neutral Position Switch Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION SPECIFIED CONDITION (1 OF 2)

Shift Position	Tester Connection	Specified Condition
P	2 - 6 and 4 - 5	Below 1 Ω
Except P	urarr	10 kΩ or higher
R	2-1	Below 1 Ω
Except R	urarr	10 kΩ or higher
N	2-9 and 4-5	Below 1 Ω
Except N	urarr	10 kΩ or higher
D and 4	2-7	Below 1 Ω
Except D and 4	urarr	10 kΩ or higher
3	2-3	Below 1 Ω
Except 3	urarr	10 kΩ or higher
2 and L	2-8	Below 1 Ω
Except 2 and L	urarr	10 kΩ or higher

NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSY
OK: Go to next step.

INSPECT SHIFT LOCK CONTROL ECU SUB-ASSY(TRANSMISSION CONTROL SWITCH)

Connect the park/neutral position switch connector.
Disconnect the shift lock control ECU connector.

Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Standard:

TESTER CONNECTION SPECIFIED CONDITION (2 OF 2)

Shift position	Tester connection	Specified condition
D	9-2 (NSSD - ATD)	Below 1 Ω
4	9-2 (NSSD - ATD)	10 kΩ or higher
D	9-3 (NSSD - AT4)	10 kΩ or higher
4	9-3 (NSSD - AT4)	Below 1 Ω
2	10-5(NSSL-AT2)	Below 1 Ω
L	10-5(NSSL-AT2)	10 kΩ or higher
2	10-4 (NSSL-ATL)	0 kΩ or higher
L	10-4 (NSSL-ATL)	Below 1 Ω

Fig 2: Inspecting Shift Lock Control ECU Sub-Assy (Transmission Control Switch)

NG: REPLACE SHIFT LOCK CONTROL ECU SUB-ASSY (SEE FLOOR SHIFT ASSY )
OK: Go to next step.

CHECK HARNESS AND CONNECTOR(PARK/NEUTRAL POSITION SWITCH ECM)
1. Connect the shift lock control ECU connector.
2. Turn the ignition switch to the ON position, and measure the voltage according to the value(s) in the table below when the shift lever is moved to each position.

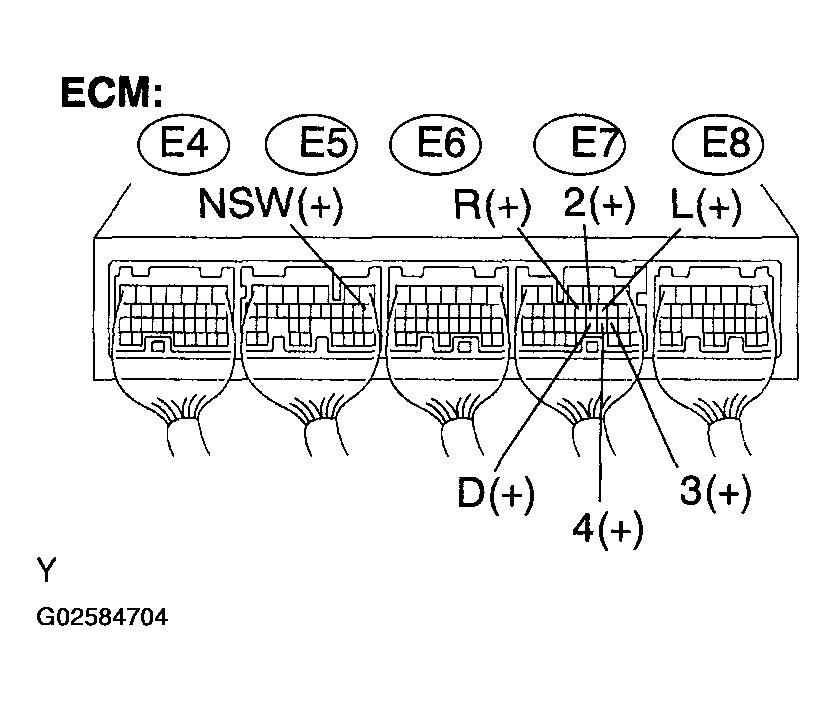

  Fig 3: Checking Harness And Connector (Park/Neutral Position Switch ECM)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

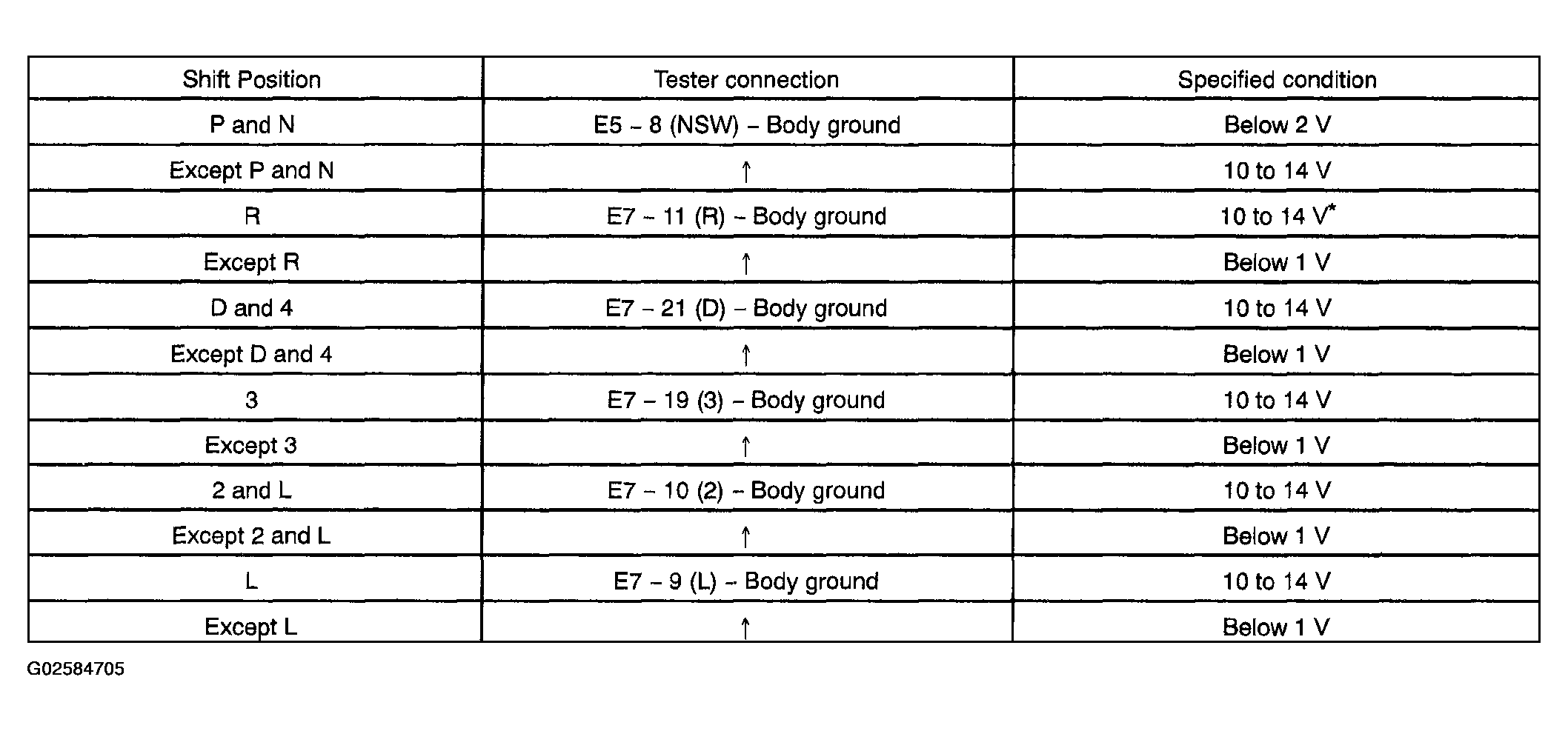

  Fig 4: Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:

*: The voltage will drop slightly due to the turning on of the back up light.
1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
2. OK: GO TO NEXT STEP
  REPLACE ECM (1GR-FE)
