Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

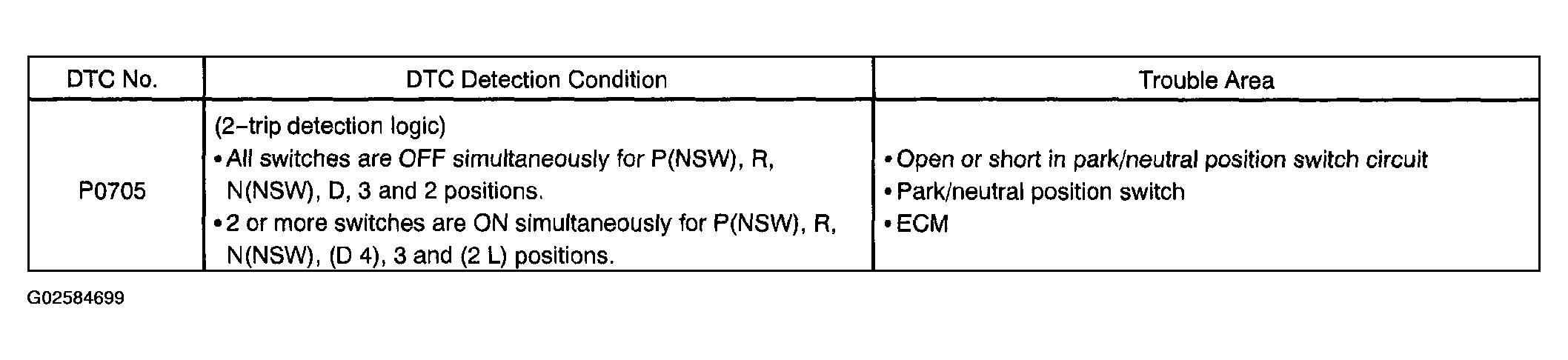

Fig 1: DTC Trouble Detection Chart
G02584699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
