DTC C1258/58: Open Circuit In 2-4 Signal Change Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

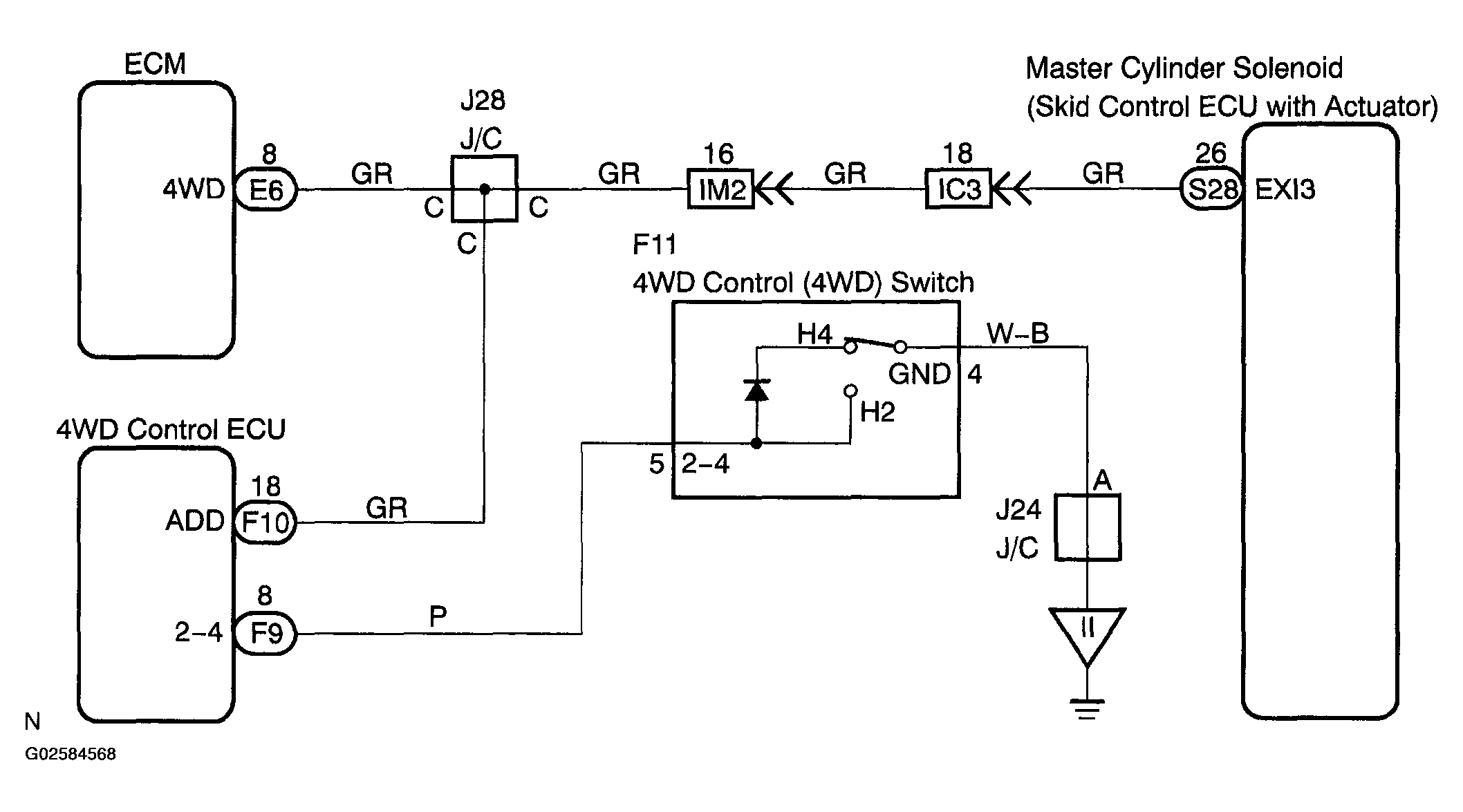

Fig 1: Identifying Open Circuit Signal Change Circuit Wiring Diagram
G02584568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
