Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Transfer condition (2WD or 4WD) is detected.

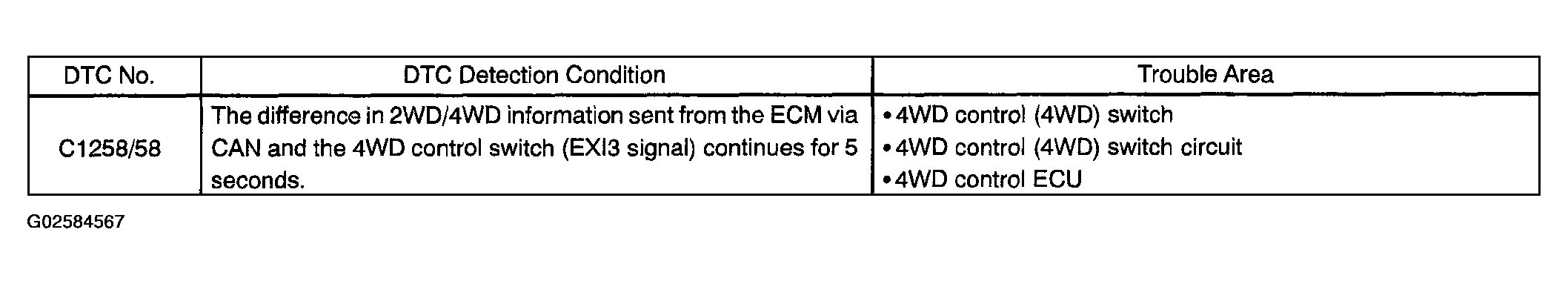

Fig 1: DTC Detection Condition And Trouble Area Chart
G02584567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
