Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

The master cylinder pressure sensor is connected to the skid control ECU in the master cylinder solenoid.

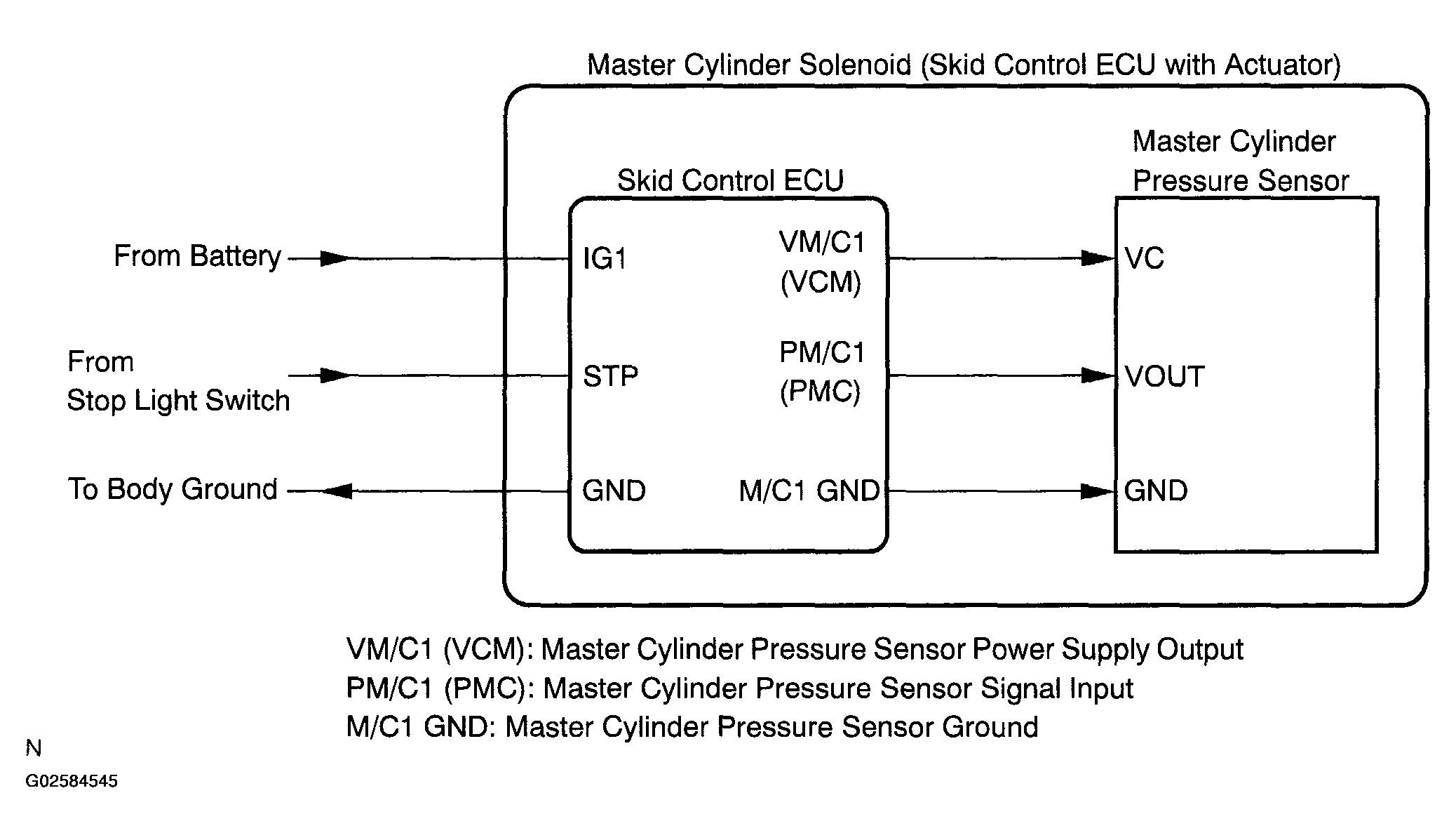

Fig 1: Identifying Malfunction In Master Cylinder Pressure Sensor Circuit Description
G02584545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

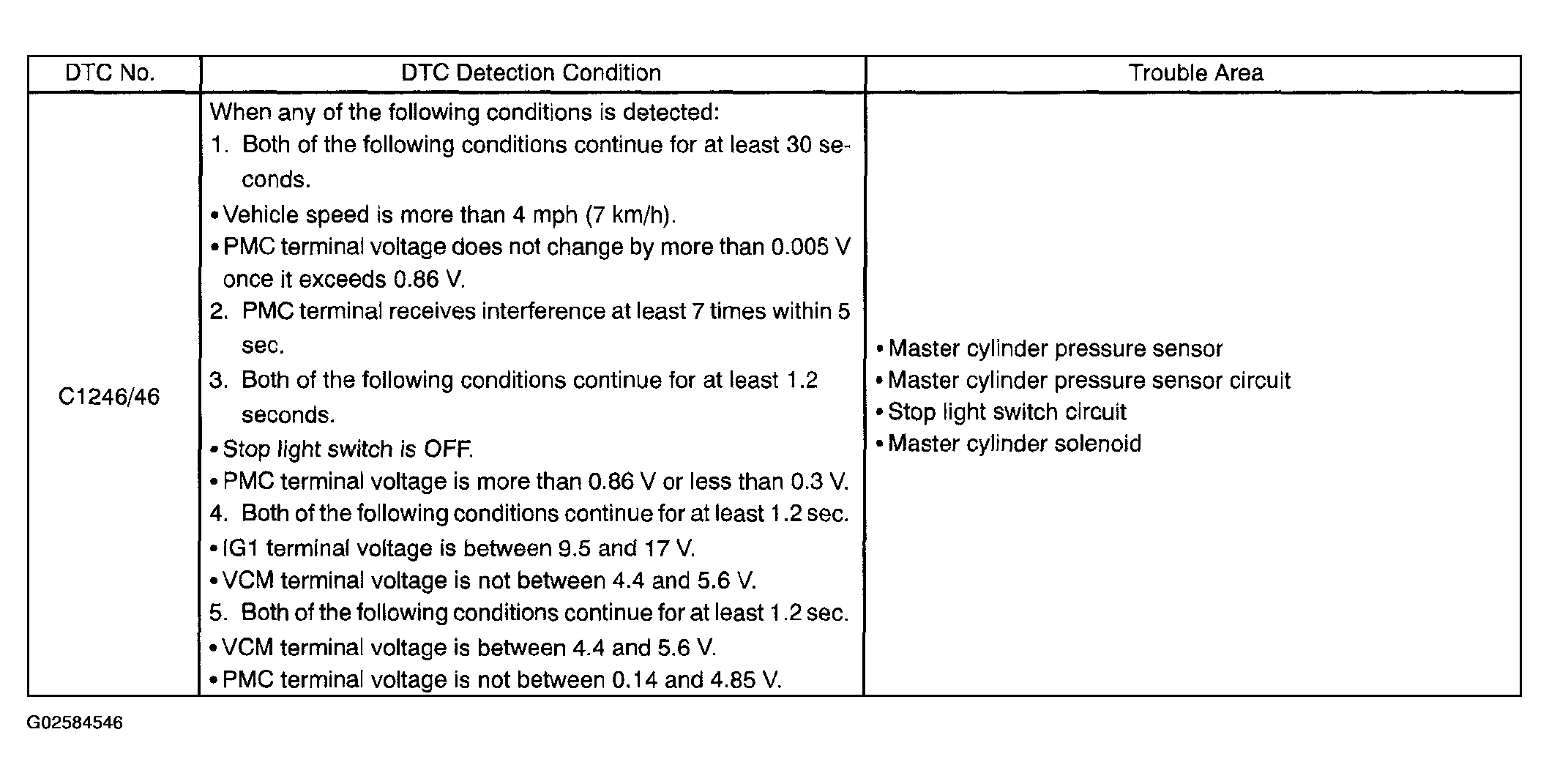

Fig 2: DTC Detection Condition And Trouble Area Chart
G02584546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
