Circuit Description
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
The brake fluid level warning switch sends the appropriate signal to the skid control ECU when the brake fluid level drops.
HINT:

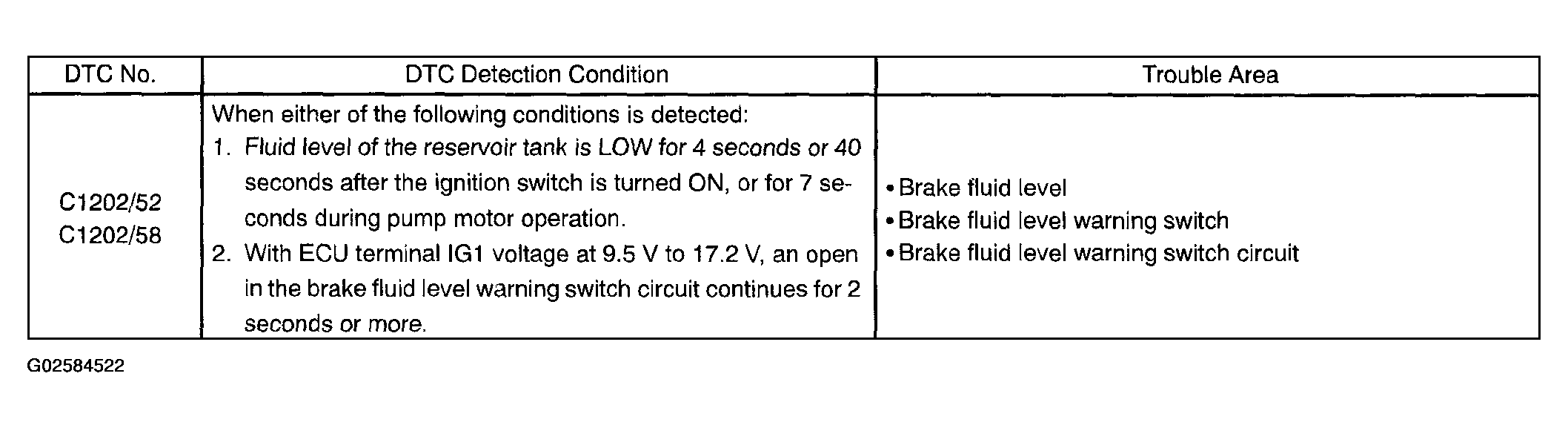

If this code (C1202/52) is output, the following situations will occur:
- The VSC TRAC and brake warning lights, and the VSC OFF indicator light will come on.
- Control of all systems other than ABS and EBD is canceled. If this code (C1202/58) is output, the following situations will occur:
- The ABS, VSC TRAC, and brake warning lights, and the slip and VSC OFF indicator lights will come on.
- Control of all systems other than EBD is canceled.
