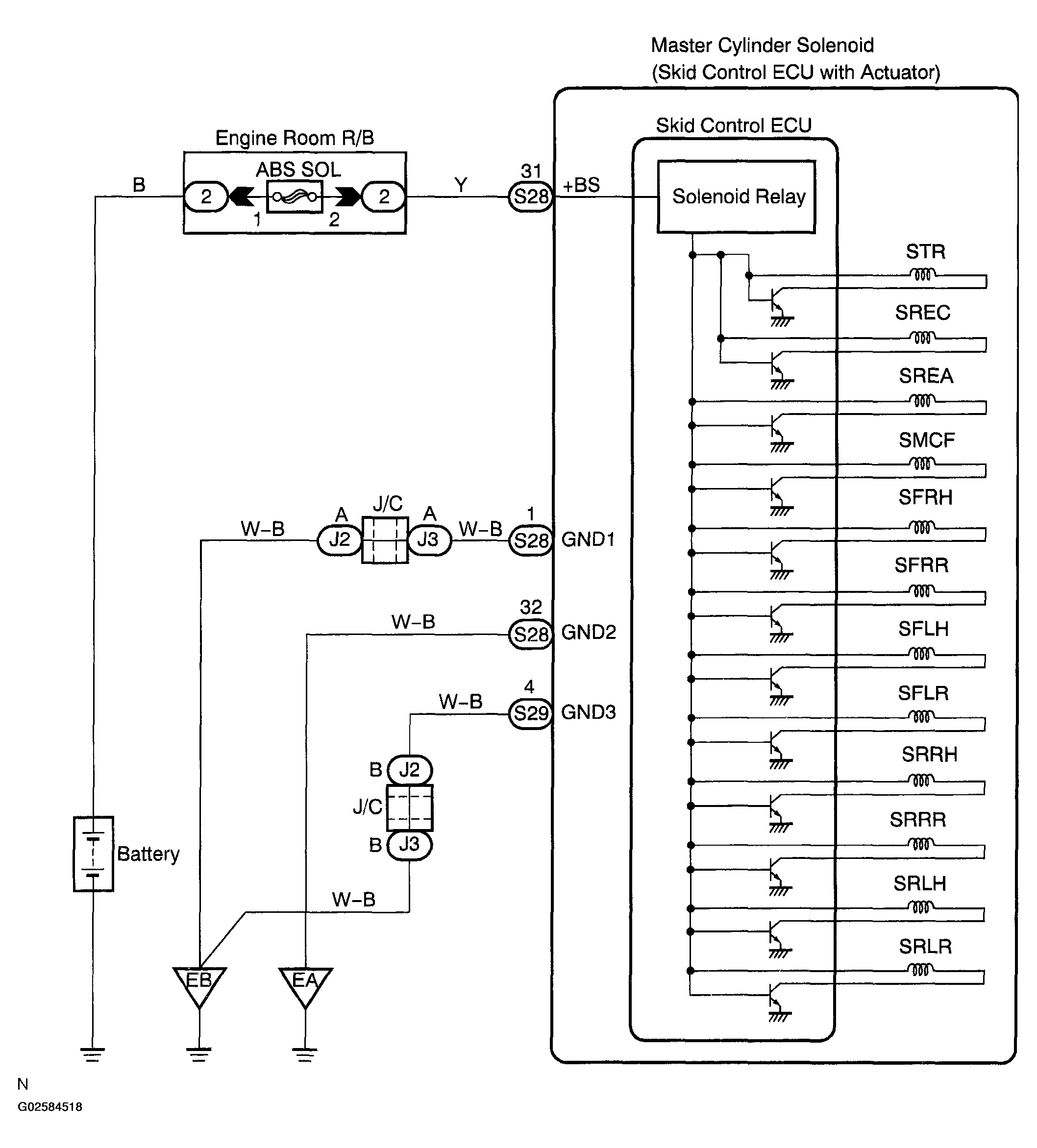

DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25, C1226/26, C1227/27, C1228/28: Open Or Short Circuit In Hydraulic Brake Booster Solenoid Circuit (SFR/SFL/SRR/SRL Circuit) & Open Or Short In Hydraulic Brake Booster Solenoid Circuit (SMC/SPC(SA1/SA2/SA3) Circuit): Wiring Diagram
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
