Circuit Description
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
Refer to DTC C0200/31, C0205/32, C1235/35, and C1236/36 on DTC C0200/31 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL MALFUNCTION, DTC C0205/32 LEFT FRONT WHEEL SPEED SENSOR SIGNAL MALFUNCTION, DTC C1235/35 METAL STICK TO SPEED SENSOR (FR), DTC C1236/36 METAL STICK TO SPEED SENSOR (FL) .
HINT:

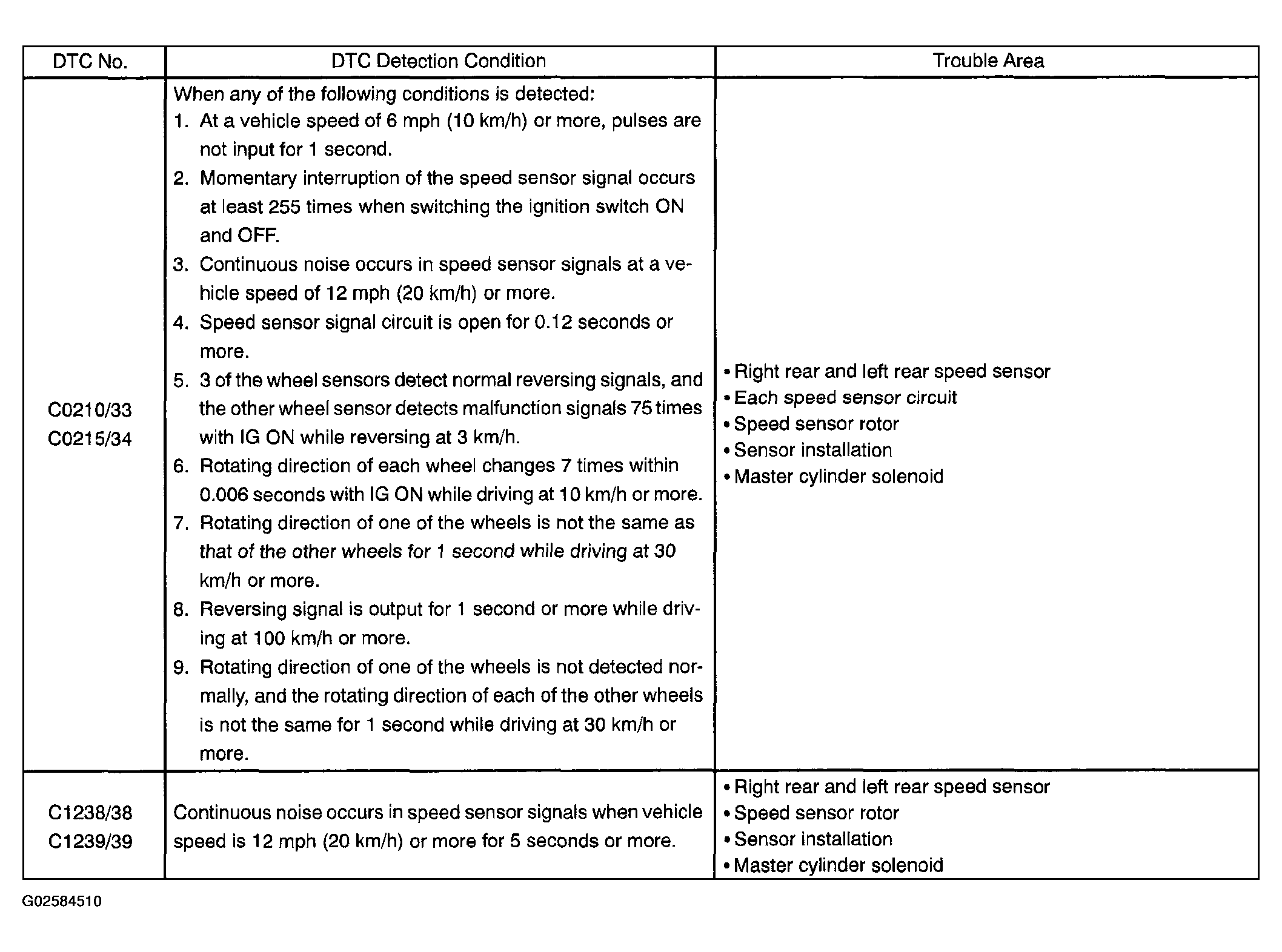

- DTC C0210/33 and C1238/38 are for the right rear speed sensor.
- DTC C0215/34 and C1239/39 are for the left rear speed sensor.
