Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .
  1. INSPECT AUTO LSD INDICATOR LIGHT
    1. Disconnect the skid control ECU connector.
    2. Ground terminal INFR of the skid control ECU.
    3. Turn the ignition switch to the ON position.
    4. Check that the AUTO LSD indicator light comes on.

    OK:

    AUTO LSD indicator light comes on.

    1. NG: Go to step 2
    2. OK: GO TO NEXT STEP

      REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )

  2. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND COMBINATION METER) ( HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S28-15 (INFR) - C10-17 Below 1Ω
      S28-15 (INFR) - Body ground 10 kΩ or higher

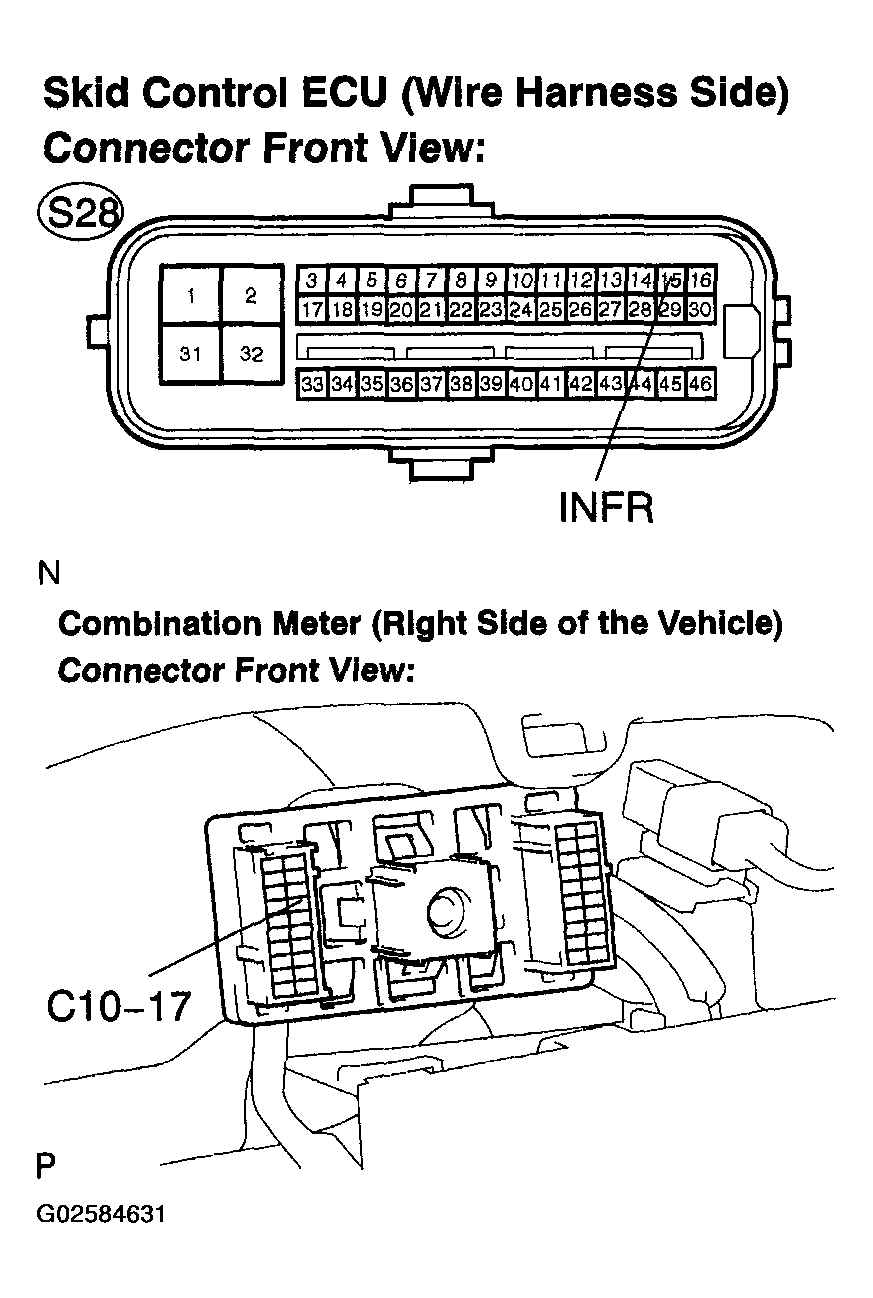

      Fig 1: Identifying Connectors (Skid Control ECU And Combination Meter)
      G02584631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  3. INSPECT COMBINATION METER ASSY
    1. Check the combination meter system (see HOW TO PROCEED WITH TROUBLESHOOTING ).
    1. NG: REPLACE COMBINATION METER ASSY ( COMBINATION METER ASSY  )
    2. OK: GO TO NEXT STEP
  4. INSPECT SKID CONTROL ECU (CSW TERMINAL)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION, CONDITION AND SPECIFIED CONDITION (1 OF 2)

      Tester Connection Condition Specified Condition
      S28-43 (CSW) - Body ground AUTO LSD switch is pushed in Below 1Ω

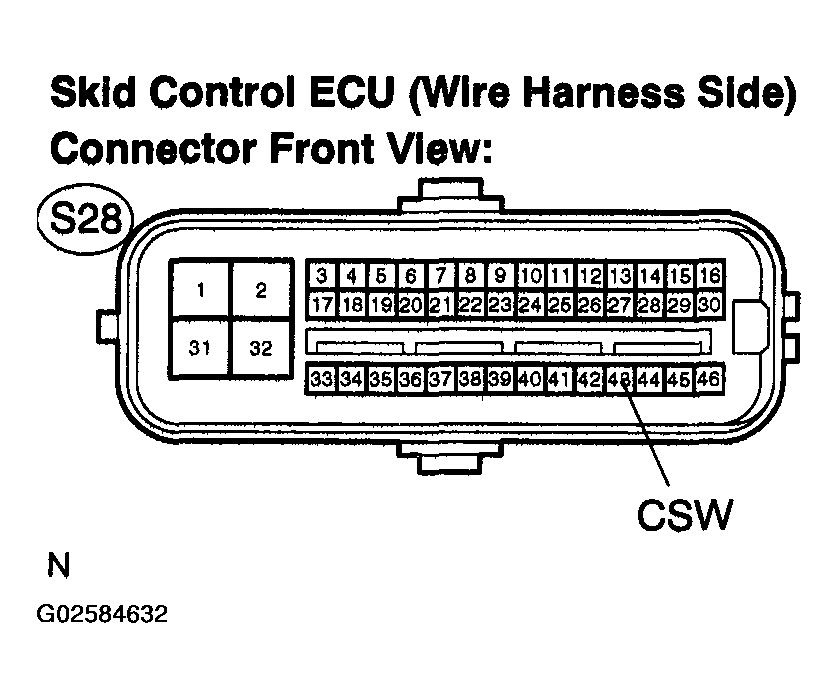

      Fig 2: Inspecting Skid Control ECU Connector (CSW Terminal)
      G02584632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step 5
    2. OK: GO TO NEXT STEP

      REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )

  5. INSPECT AUTO LSD SWITCH
    1. Disconnect the AUTO LSD switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION, CONDITION AND SPECIFIED CONDITION (2 OF 2)

      Tester Connection Condition Specified Condition
      A42-3 - A42-4 Switch is pushed in Below 1Ω
      A42-3 - A42-4 Switch is not pushed in 10 kΩ or higher

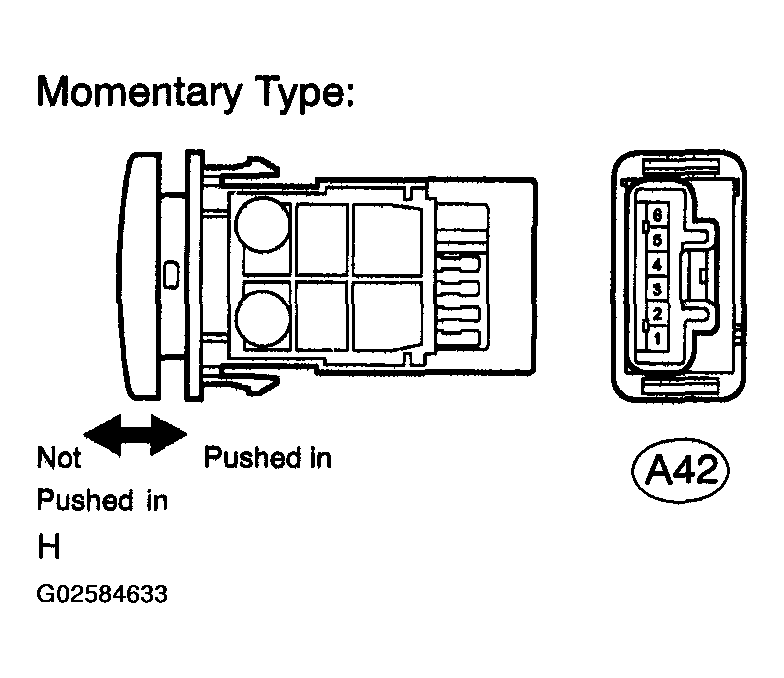

      Fig 3: Inspecting Auto LSD Switch Connector
      G02584633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE AUTO LSD SWITCH
    2. OK: GO TO NEXT STEP
  6. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU, BODY GROUND AND AUTO LSD SWITCH) ( HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S28-43 (CSW) - A42-3 Below 1Ω
      S28-43 (CSW) - Body ground 10 kΩ or higher
      A42-4 - Body ground Below 1Ω

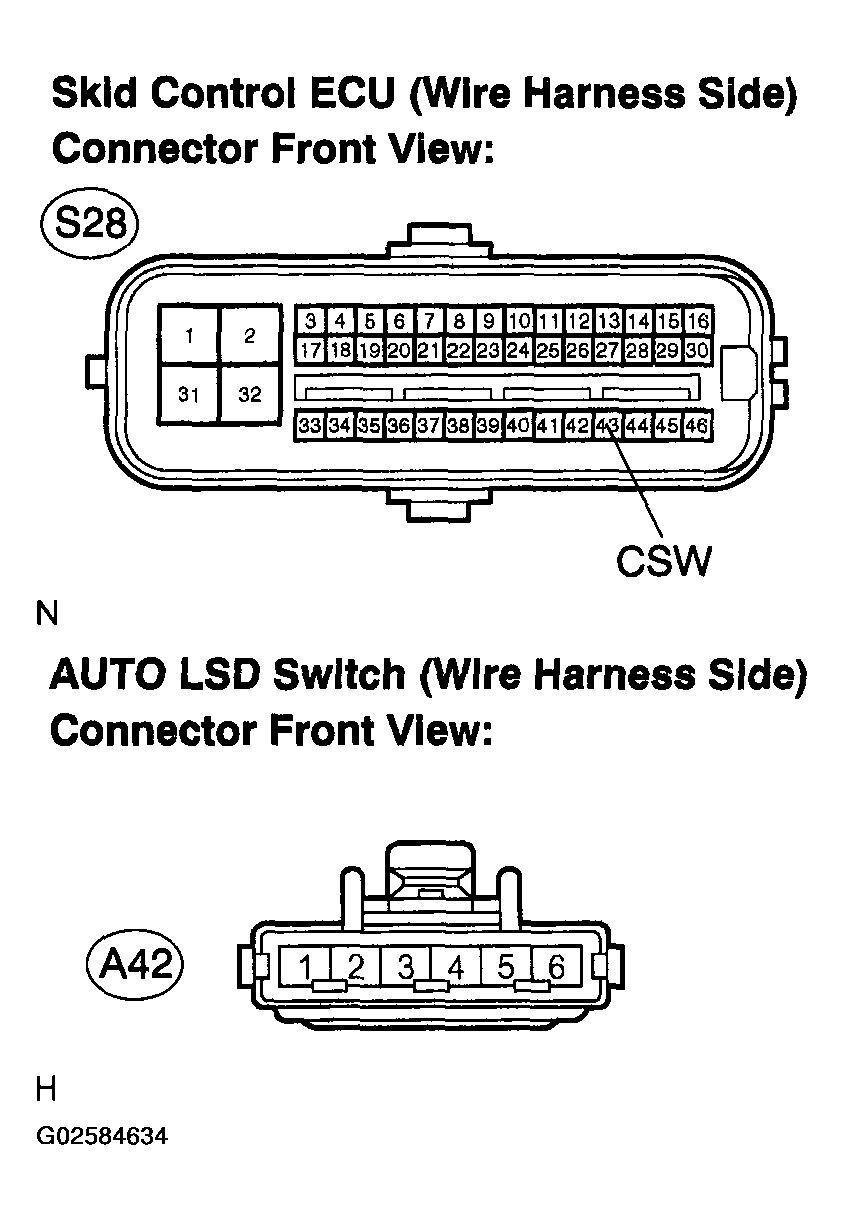

      Fig 4: Identifying Connectors (Skid Control ECU And Auto LSD Switch)
      G02584634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
      2. OK: GO TO NEXT STEP

        END
