Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .
  1. INSPECT IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED
    1. Check the skid control ECU connector's connecting condition.

    OK:

    The connector should be securely connected.

    1. NG: CONNECT CONNECTOR TO ECU
    2. OK: GO TO NEXT STEP
  2. INSPECT BATTERY
    1. Check the battery voltage.

    Standard:

    Voltage: 11 to 14 V

    1. NG: INSPECT CHARGING SYSTEM ( ON-VEHICLE INSPECTION  ,  ON-VEHICLE INSPECTION  )
    2. OK: GO TO NEXT STEP
  3. INSPECT SKID CONTROL ECU (IG1 TERMINAL VOLTAGE)
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION (1 OF 3)

      Tester Connection Specified Condition
      S28-46(IG1)- Body ground 10 to 14 V

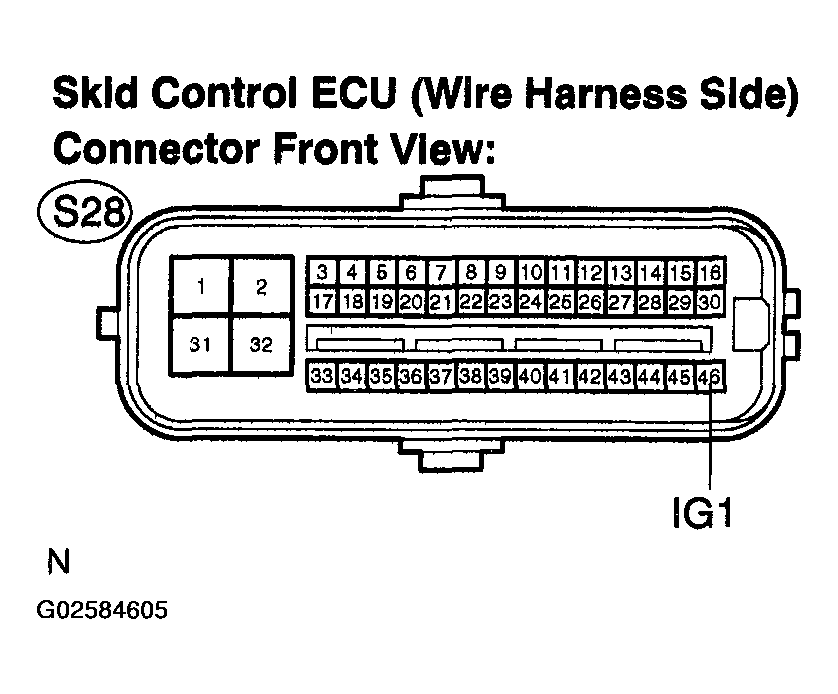

      Fig 1: Identifying Skid Control ECU IG1 Terminal
      G02584605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1 CIRCUIT)
    2. OK: GO TO NEXT STEP
  4. INSPECT SKID CONTROL ECU (GND TERMINAL CONTINUITY)
    1. Disconnect the skid control ECU (S29) connector.
    2. Measure the resistance according to the value(s) in the table below.
      TESTER CONNECTION AND SPECIFIED CONDITION (2 OF 3)

      Tester Connection Specified Condition
      S28-1 (GND1) - Body ground Below 1Ω
      S28-32 (GND2) - Body ground Below 1Ω
      S29-4 (GND3) - Body ground Below 1Ω

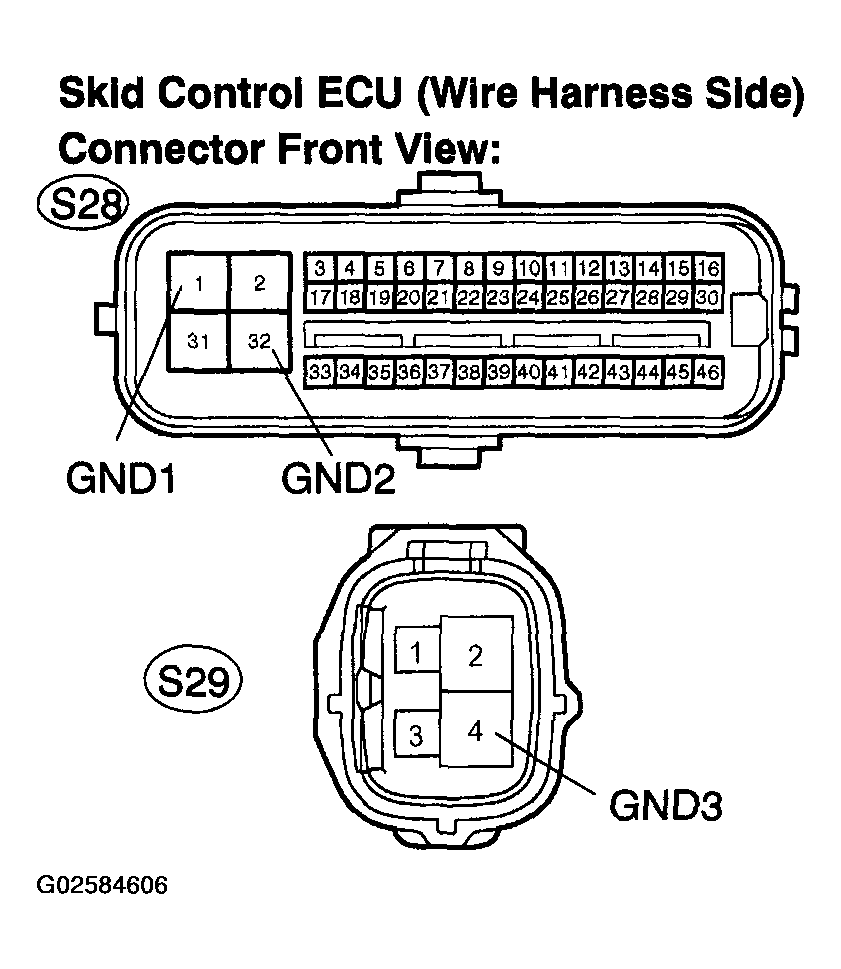

      Fig 2: Inspecting Skid Control ECU (GND Terminal Continuity)
      G02584606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)
    2. OK: GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND COMBINATION METER) ( HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION (3 OF 3)

      Tester Connection Specified Condition
      S28-29 (WA) - C11 -4 Below 1Ω
      S28-29 (WA) - Body ground 10 kΩ or higher

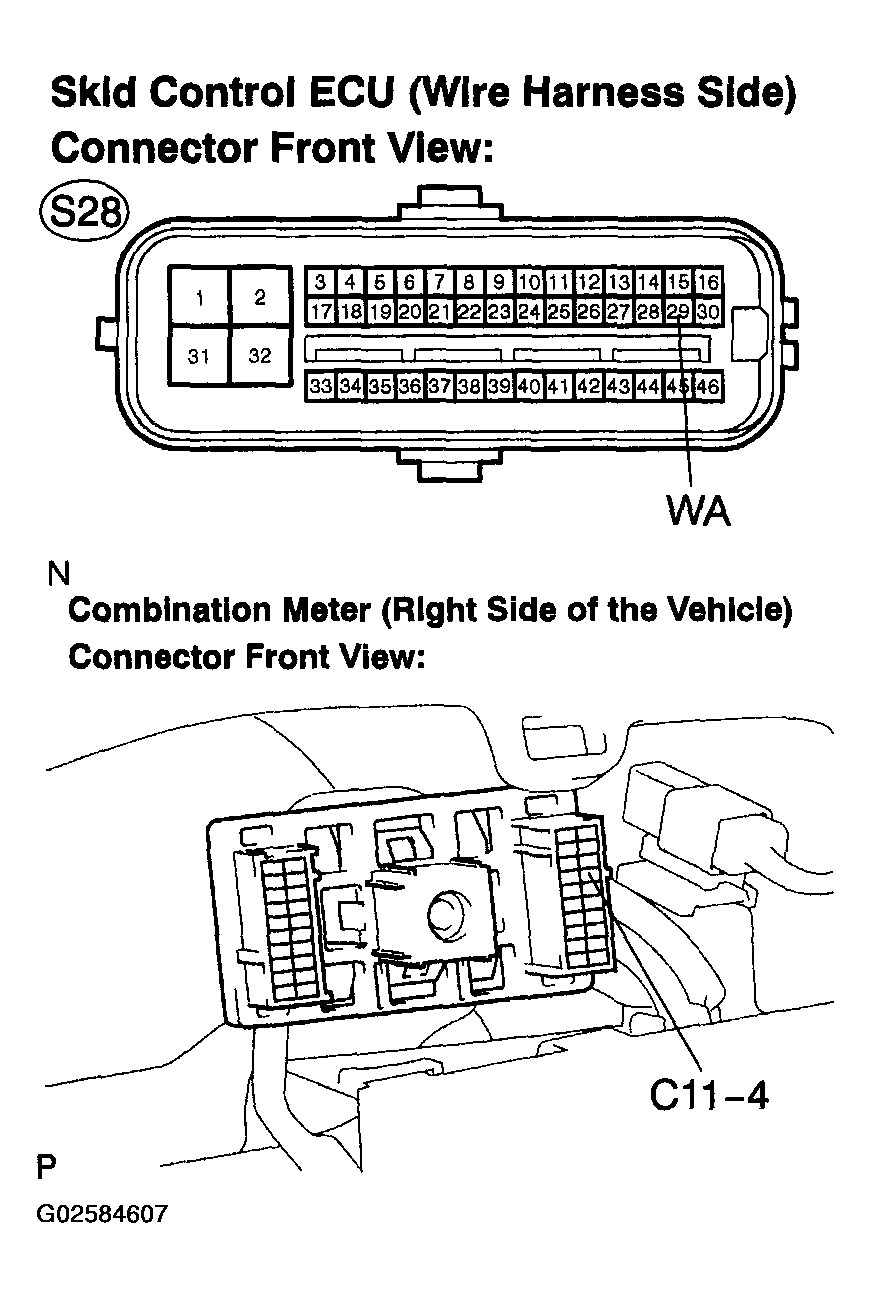

      Fig 3: Identifying Connectors (Skid Control ECU And Combination Meter)
      G02584607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  6. INSPECT COMBINATION METER ASSY
  1. Check the combination meter system (see HOW TO PROCEED WITH TROUBLESHOOTING ).
  1. NG: REPLACE COMBINATION METER ASSY ( COMBINATION METER ASSY  )
  2. OK: GO TO NEXT STEP

    REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )
