Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .
  1. INSPECT ABS WARNING LIGHT
    1. Disconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Check that the ABS warning light comes on.

      OK:

      ABS warning light comes on.

    1. NG: Go to step 2
    2. OK: GO TO NEXT STEP

      REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )

  2. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND COMBINATION METER) ( HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      S28-29 (WA) - C11 -4 Below 1Ω
      S28-29 (WA) - Body ground 10 kΩ or higher

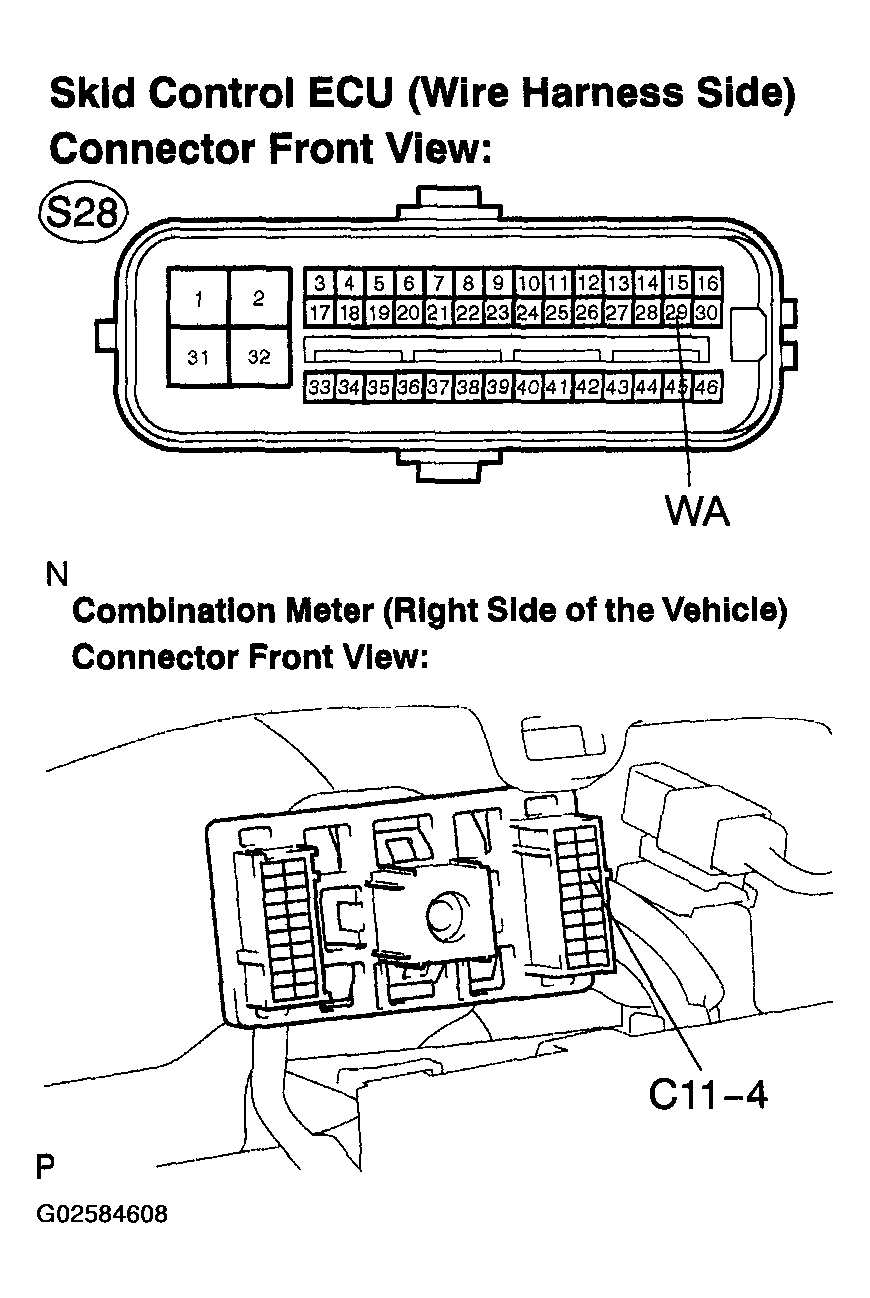

      Fig 1: Identifying Connectors (Skid Control ECU And Combination Meter)
      G02584608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  3. INSPECT COMBINATION METER ASSY
  1. Check the combination meter system (see HOW TO PROCEED WITH TROUBLESHOOTING ).
  1. NG: REPLACE COMBINATION METER ASSY ( COMBINATION METER ASSY  )
  2. OK: GO TO NEXT STEP

    END
