Stoplight Switch

WARNING: This page is about a different car, the 2003 Toyota Prius and 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: On Prius, read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

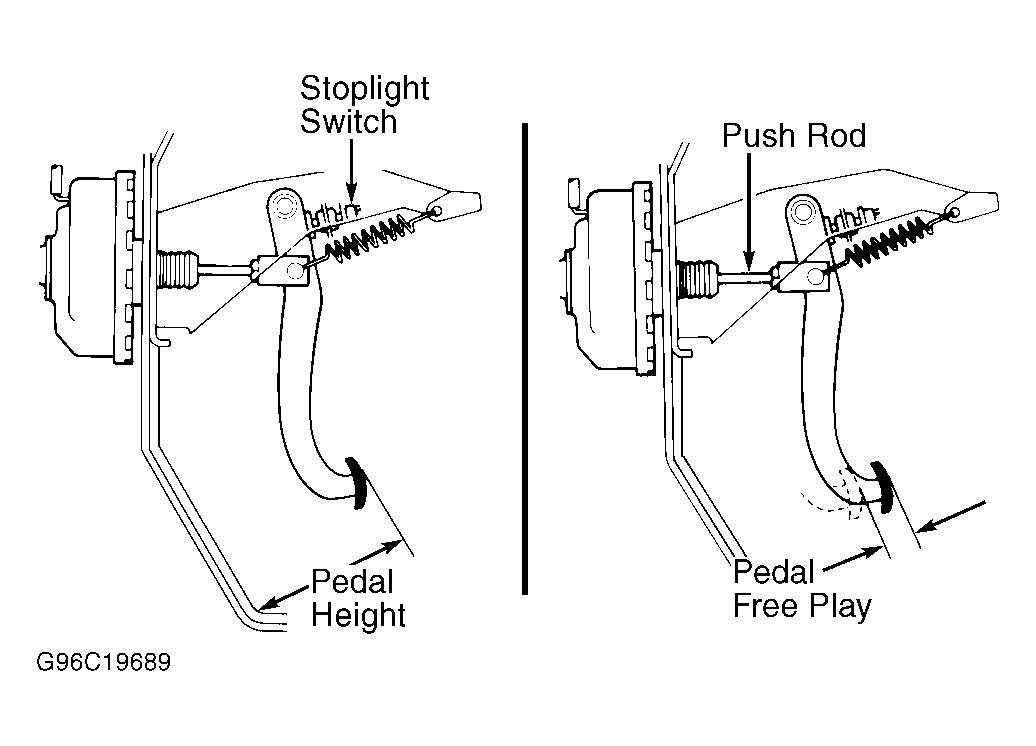

Remove lower instrument panel and air duct (if necessary). Loosen lock nut. Turn switch until clearance between switch and pedal stop is .02-.09" (.5-2.4 mm). See Figure. Check brake pedal height. See BRAKE PEDAL HEIGHT . Check brakelight operation.
