Rear Drum Brake Shoes: Removal
WARNING: This page is about a different car, the 2004 Toyota Corolla and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

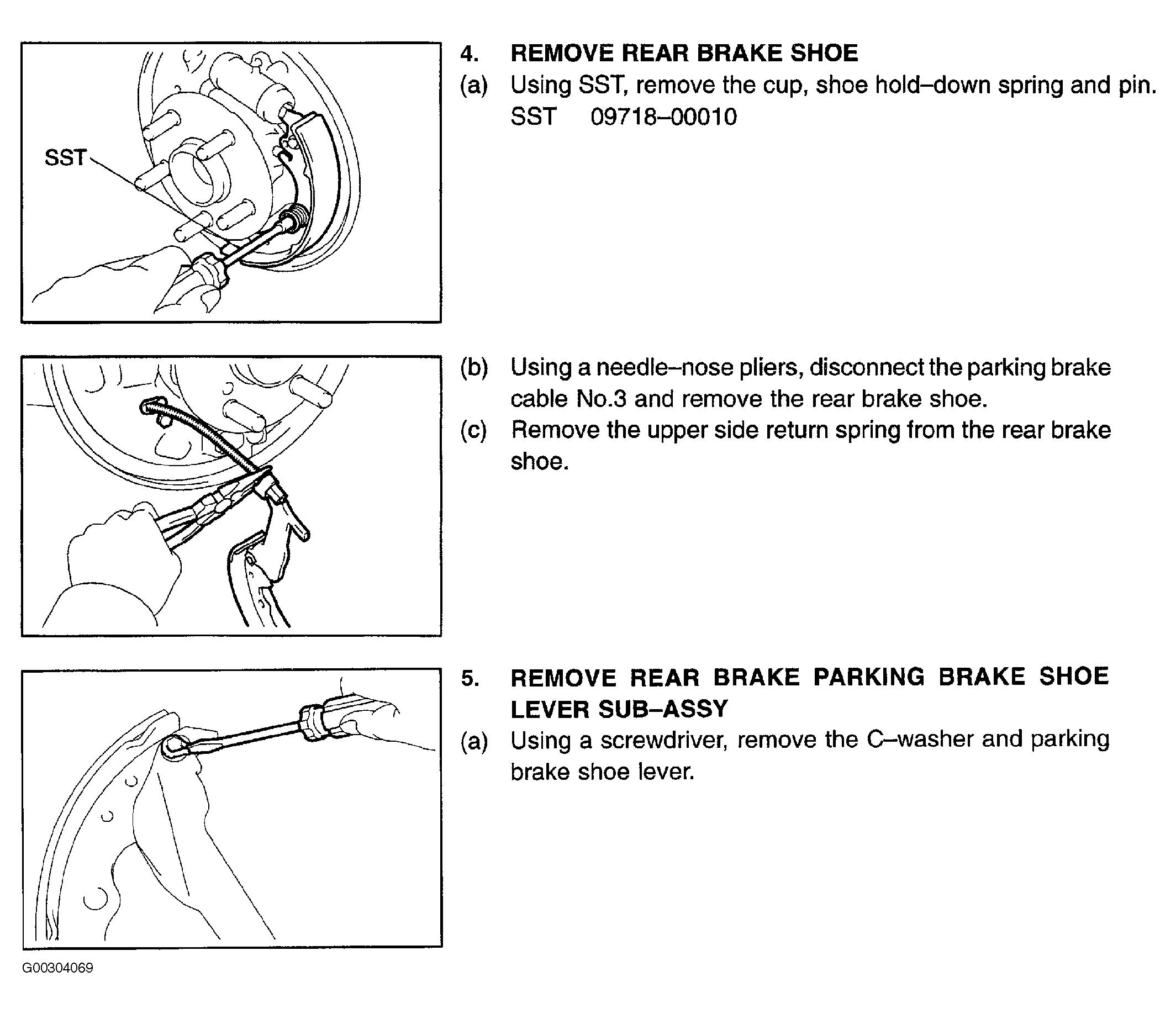

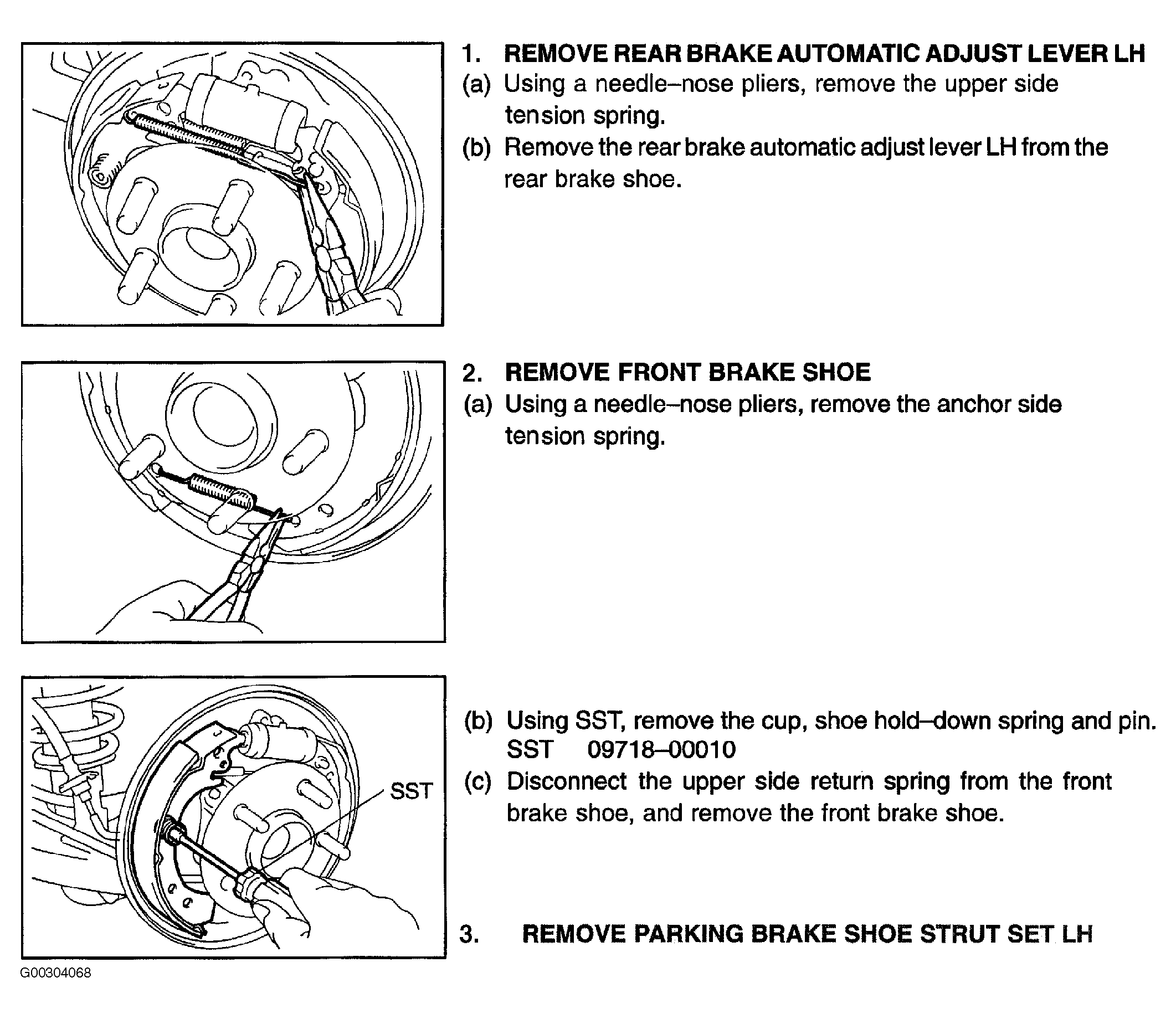

For removal procedure, see Fig 1 and Fig 2 . For component view, see Figure. To install, reverse removal procedure. Apply high-temperature grease to adjuster components. Check and adjust rear brake shoe clearance. See REAR BRAKE SHOES under ADJUSTMENTS. Check and fill master cylinder reservoir.
