Master Cylinder

WARNING: This page is about a different car, the 2004 Toyota Corolla and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

For procedure, see Fig 1. For component view, see Fig 2.

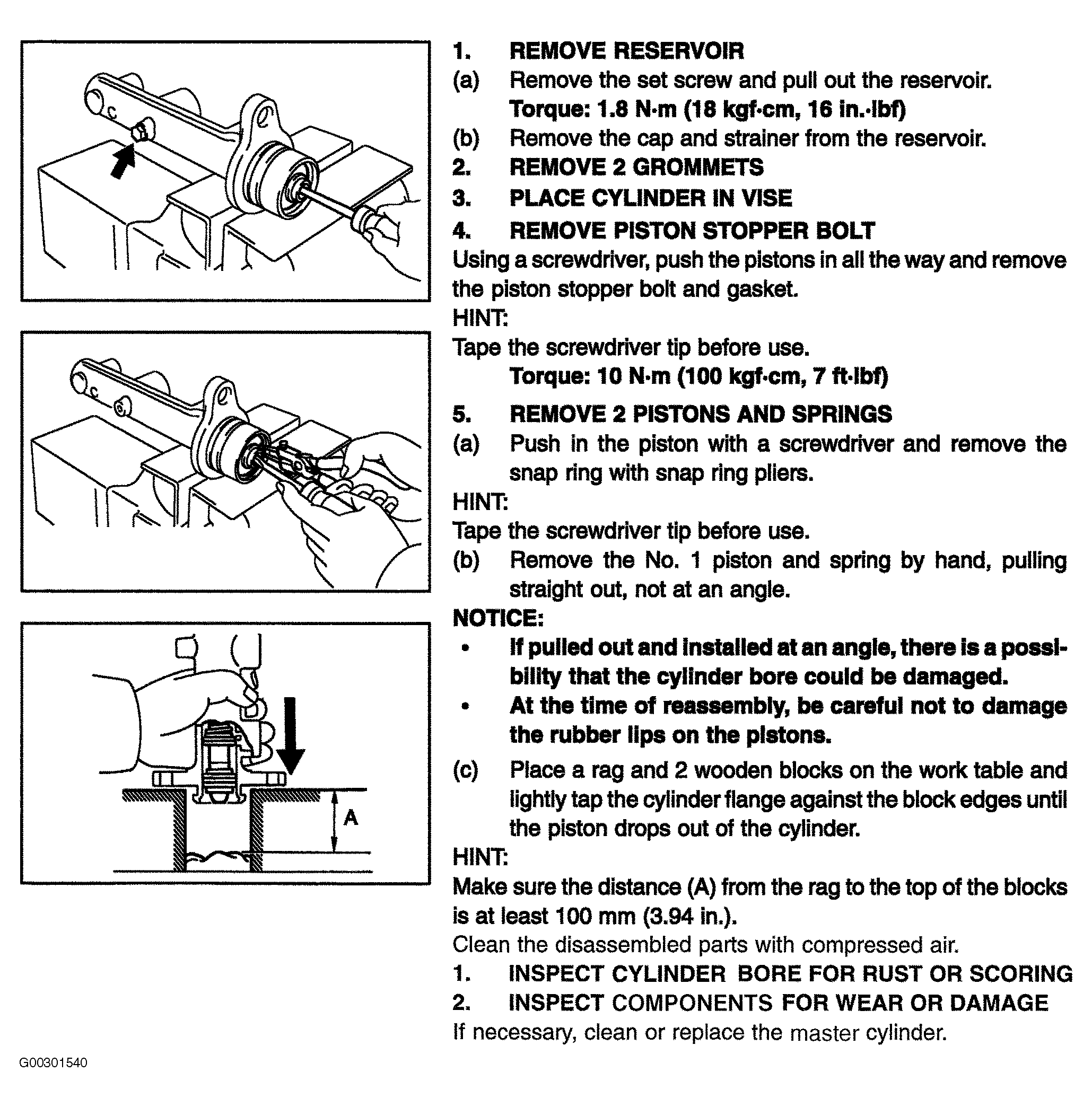

Fig 1: Master Cylinder Overhaul Procedure
G00301540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

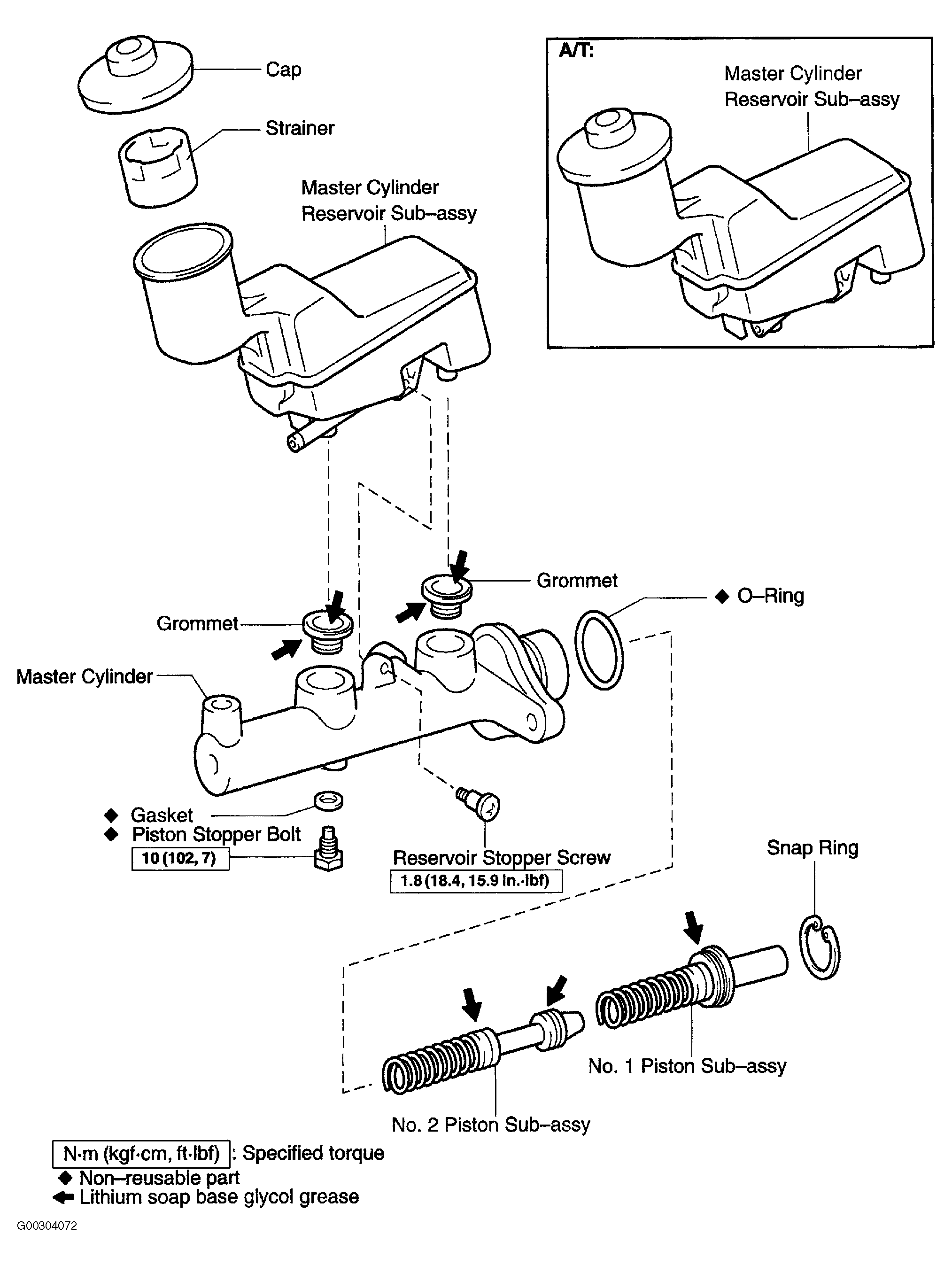

Fig 2: Identifying Brake Master Cylinder Components
G00304072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
