Stoplight Switch
WARNING: This page is about a different car, the 2004 Toyota Corolla and 2003 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

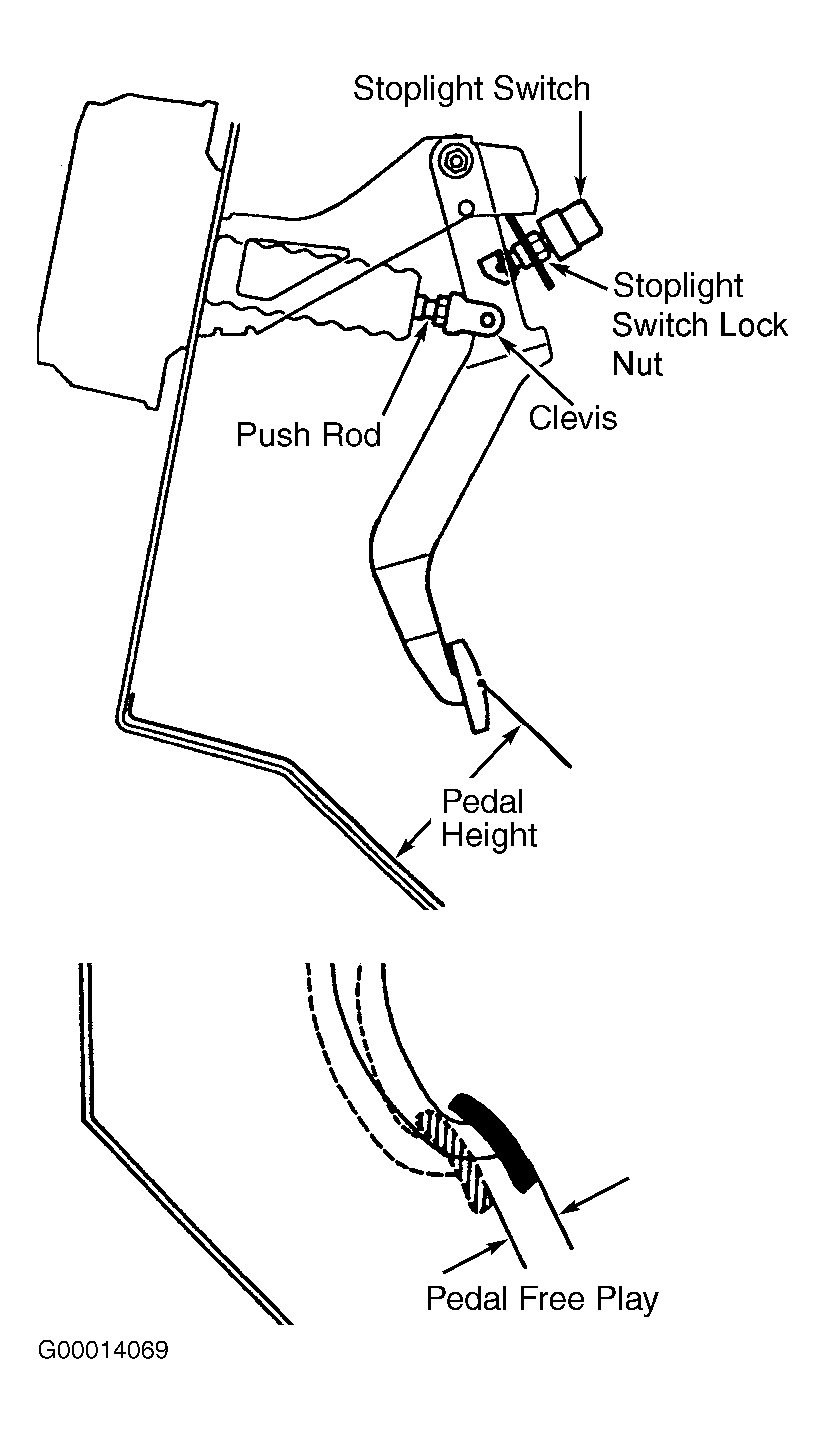

Remove lower instrument panel and air duct (if necessary). Loosen lock nut. Turn switch until clearance between switch and pedal stop is .02-.09 in. (.5-2.4 mm). See Figure. Check brake pedal height. See BRAKE PEDAL HEIGHT . Check brakelight operation.
