WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

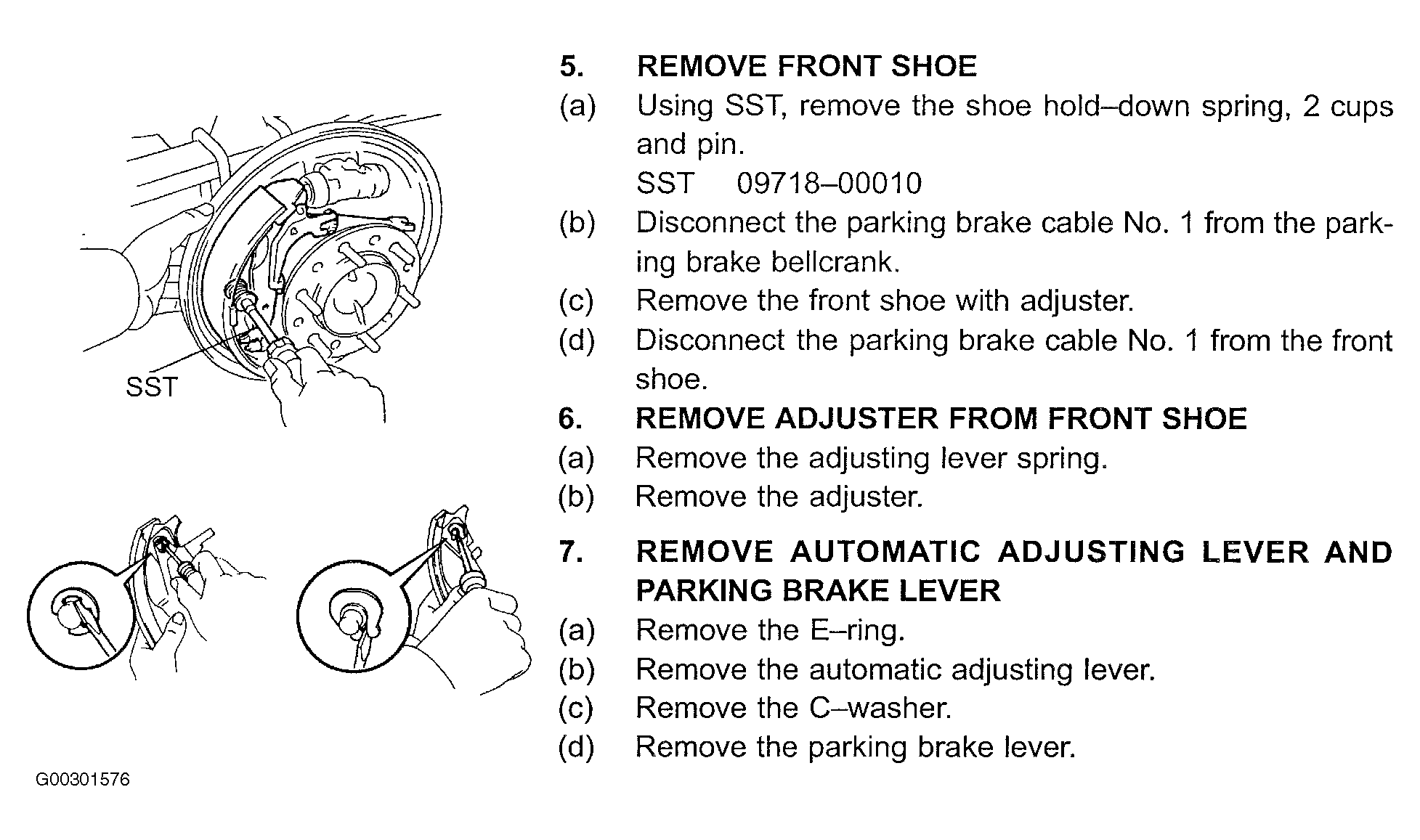

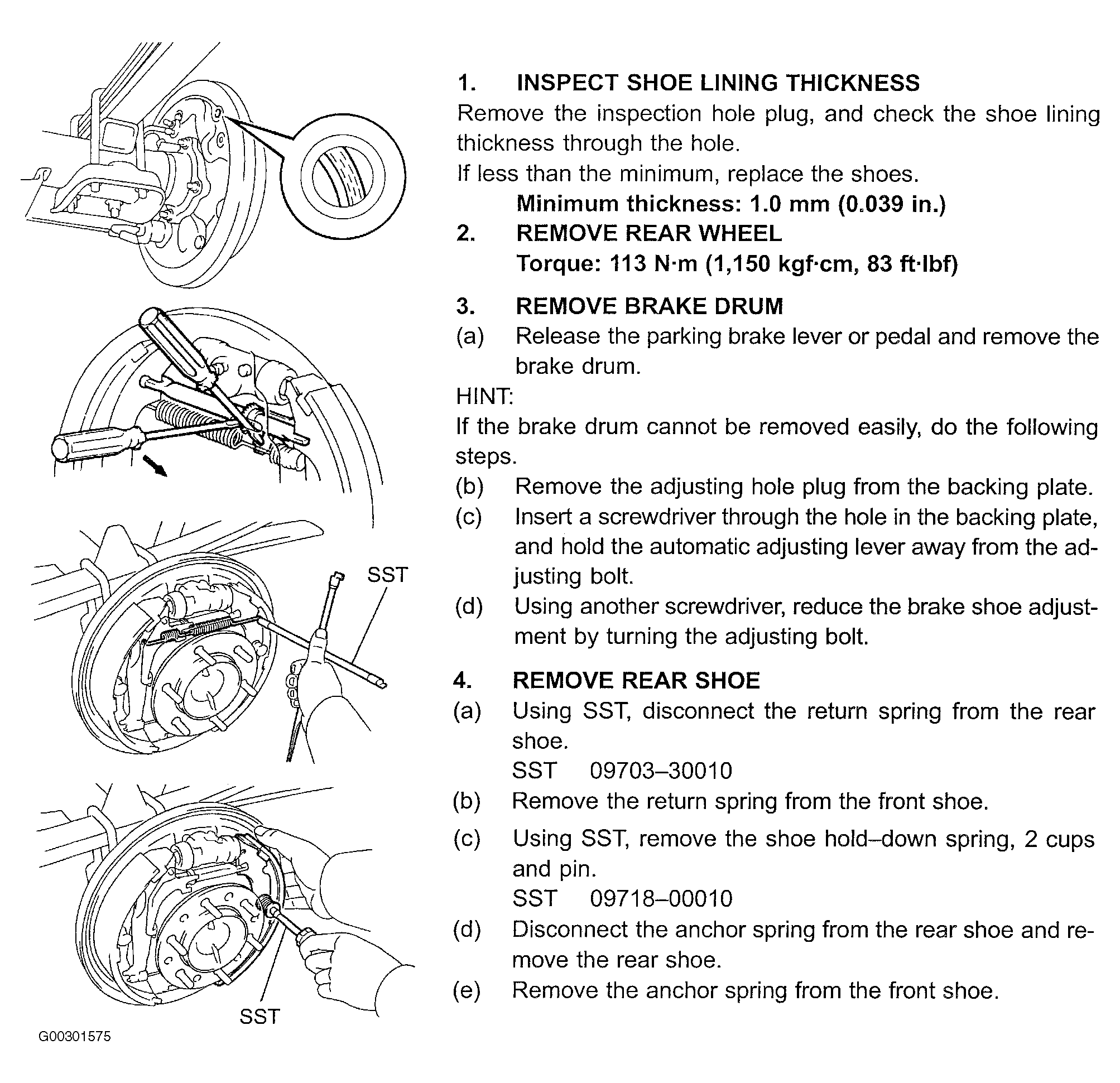

For removal procedure, see Fig 1 and Fig 2
. For component view, see Fig 3.
