Removal & Installation
WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

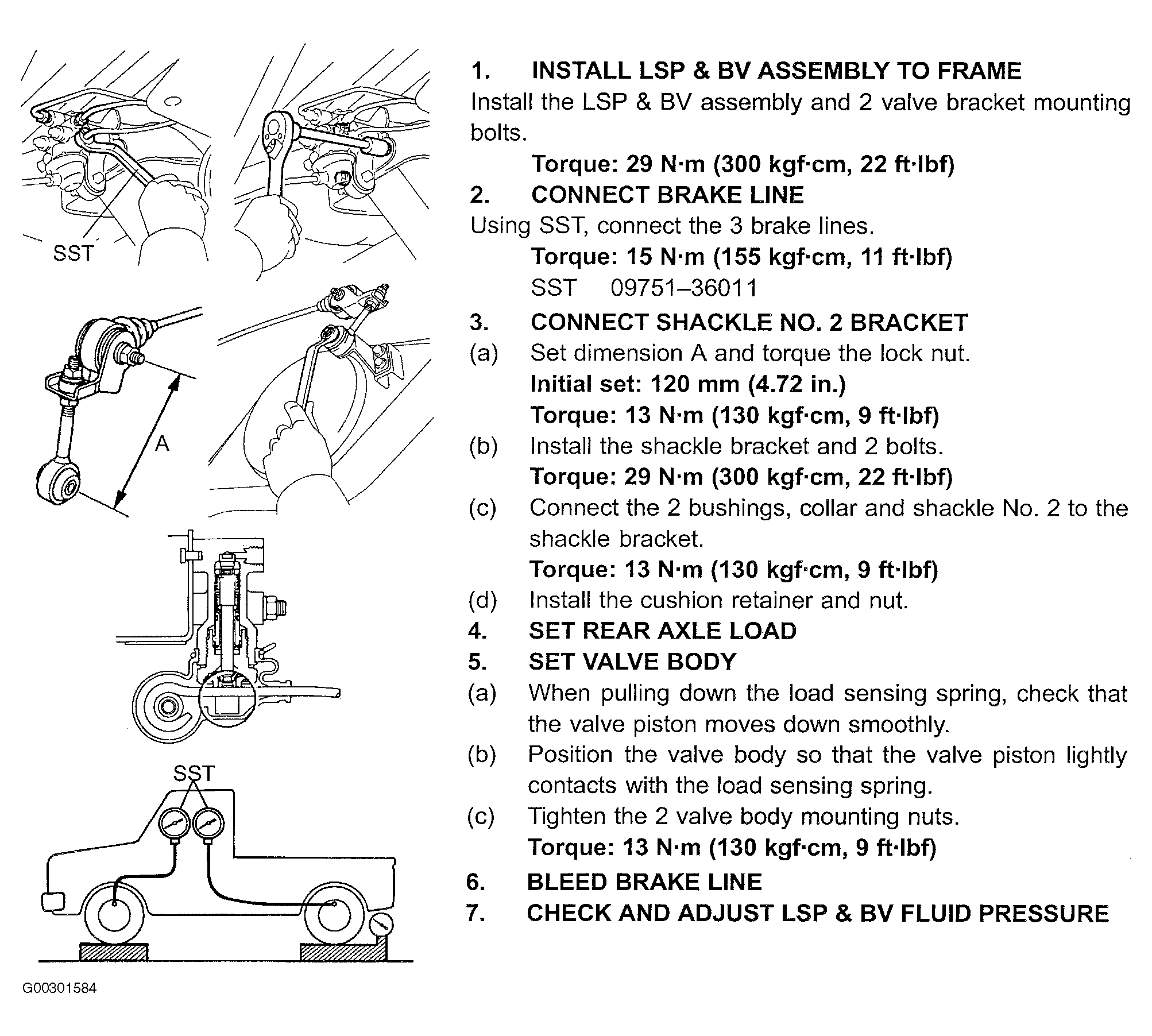

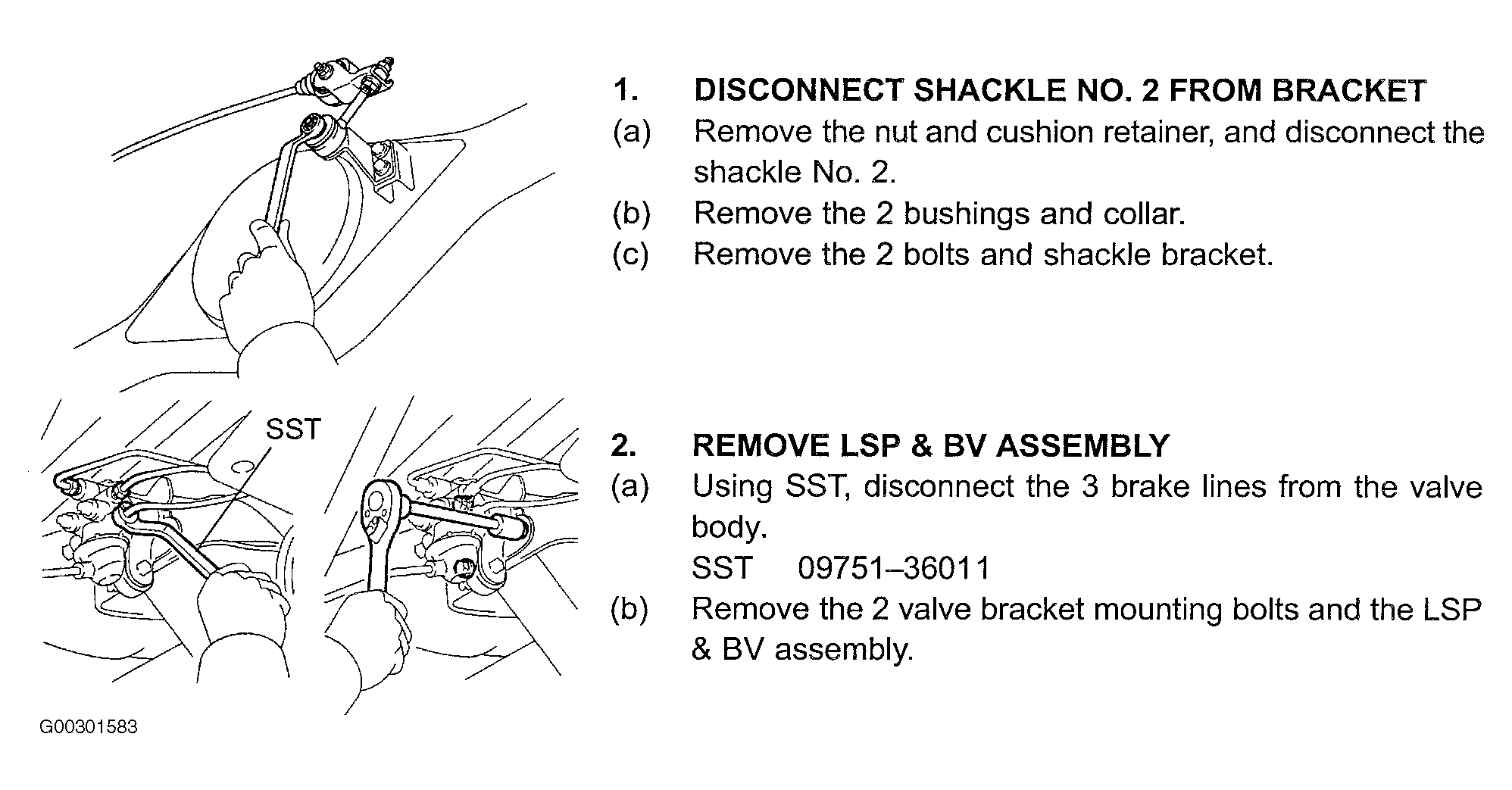

Raise and support vehicle. For procedure, see Fig 1 and Fig 2 . For component view, see Figure. For brake system bleeding procedure, see BLEEDING BRAKE SYSTEM . For adjusting procedure, see LOAD-SENSING PROPORTIONING VALVE (LSPV) & BY-PASS VALVE (BV) in ADJUSTMENTS.
