Removal & Installation

WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Always change pads on one wheel at a time. Opposite piston may be pressed out by fluid pressure.

For procedure, see Fig 1. For component view, see Fig 2. To check disc runout and thickness, see DISC RUNOUT & THICKNESS in ADJUSTMENTS.

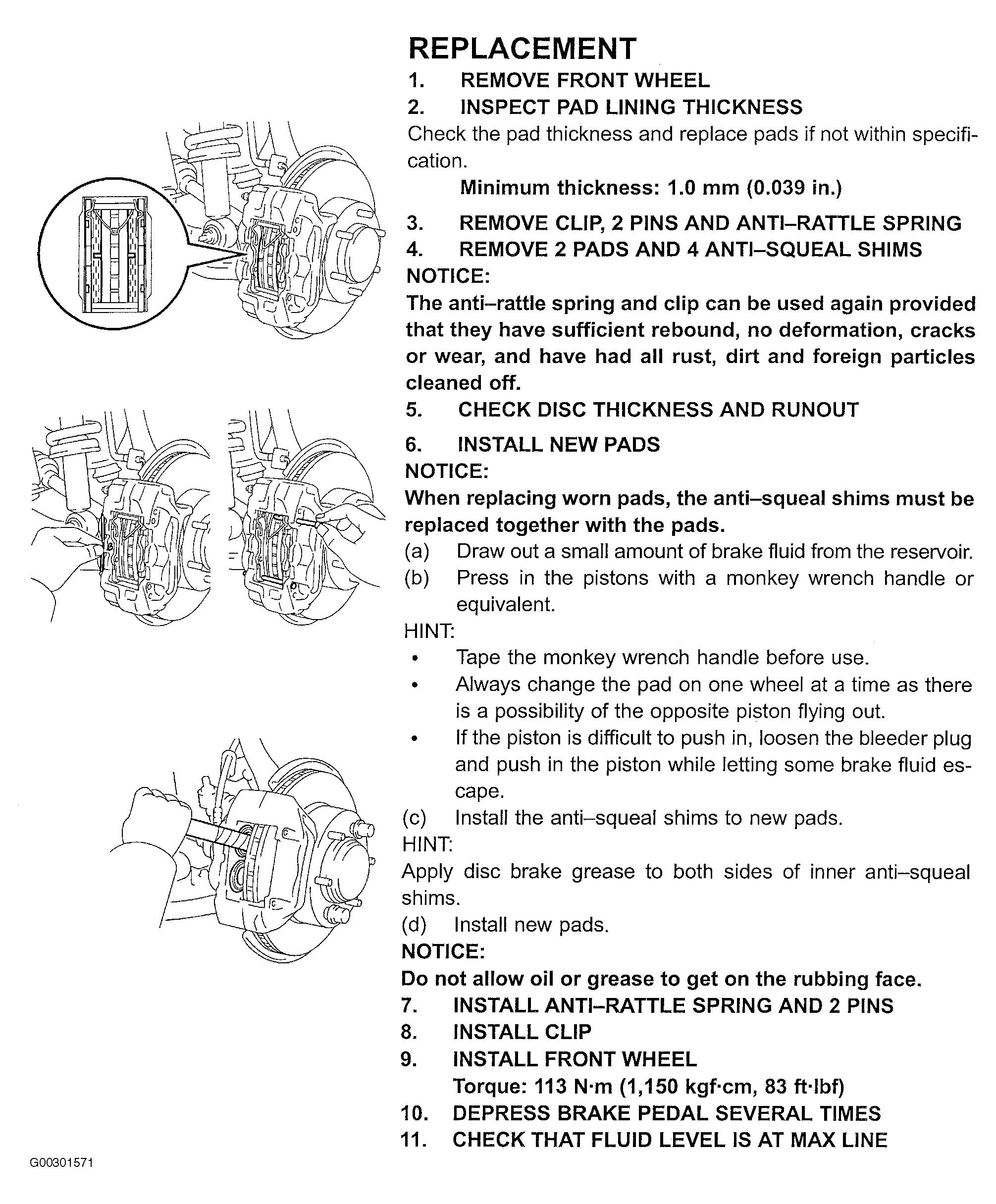

Fig 1: Front Brake Pad Replacement Procedure

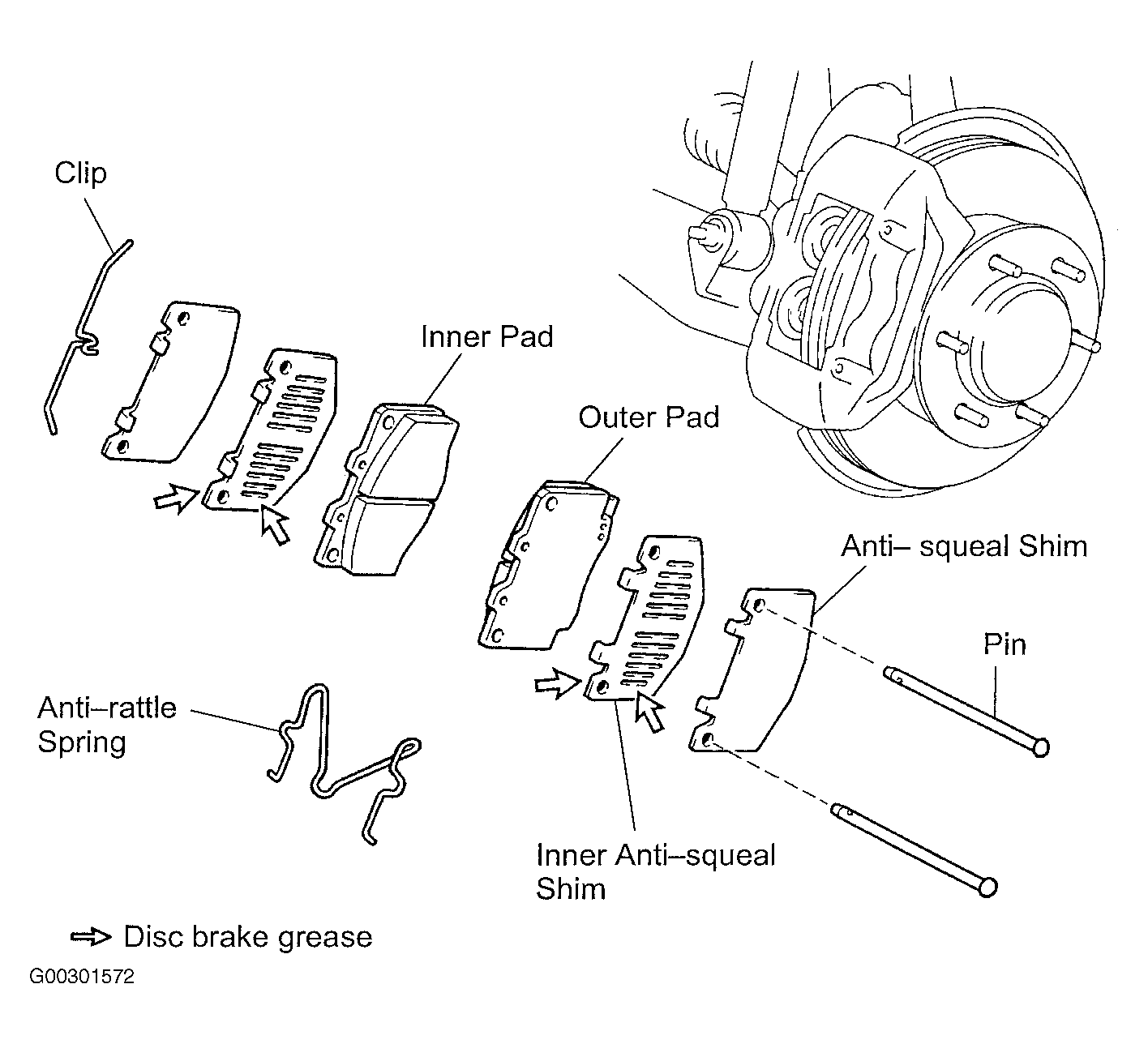

Fig 2: Locating Front Brake Pad Components
