Rear Wheel Cylinders

WARNING: This page is about a different car, the 2003 Toyota Tundra and 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When overhauling wheel cylinder, if cylinder bores are pitted or scored beyond repair by light honing, replace entire assembly.

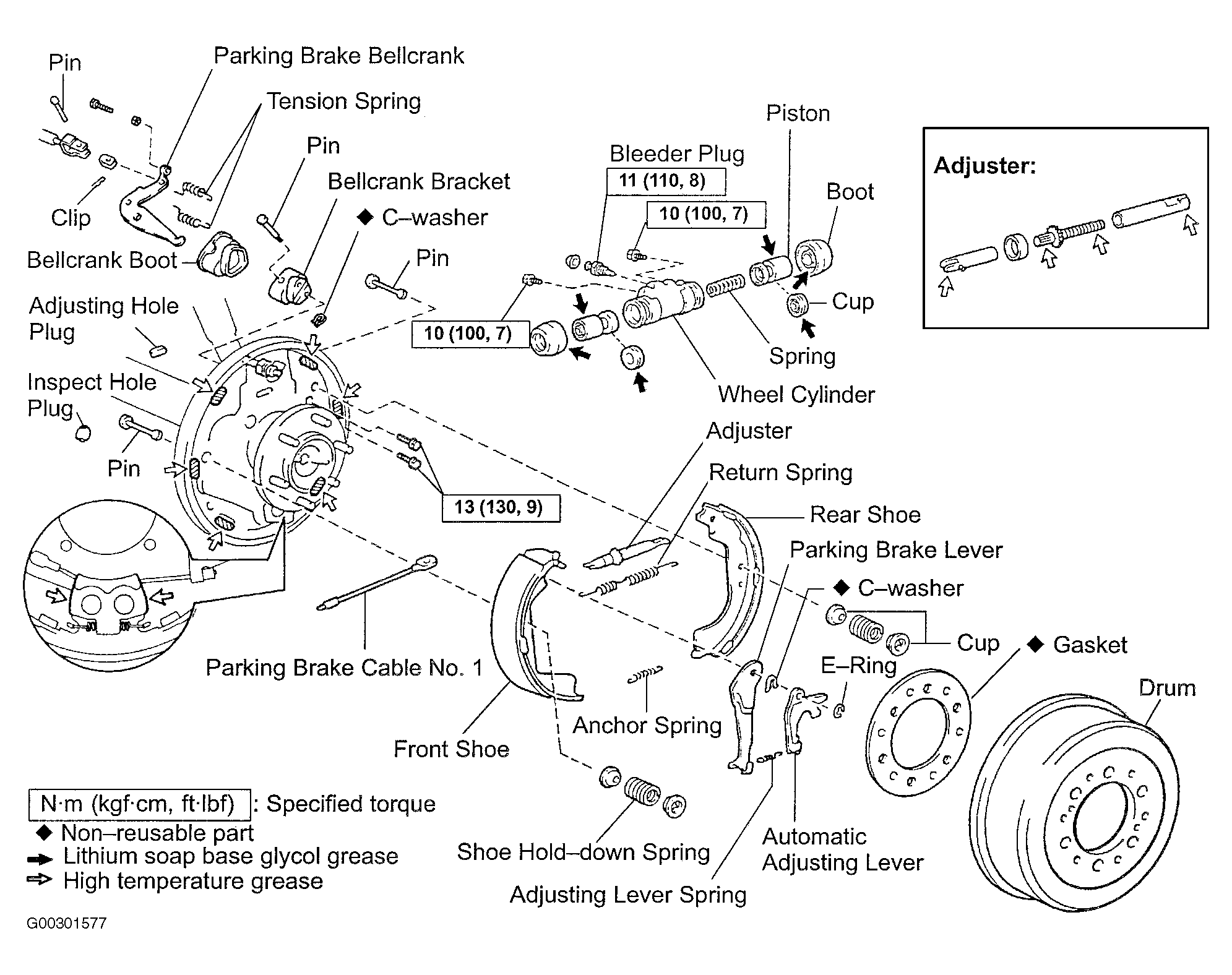

For removal and installation procedure, see REAR BRAKE SHOES  in REMOVAL & INSTALLATION. For overhaul of rear wheel cylinders, see Figure.
