Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash: Wiring Diagram

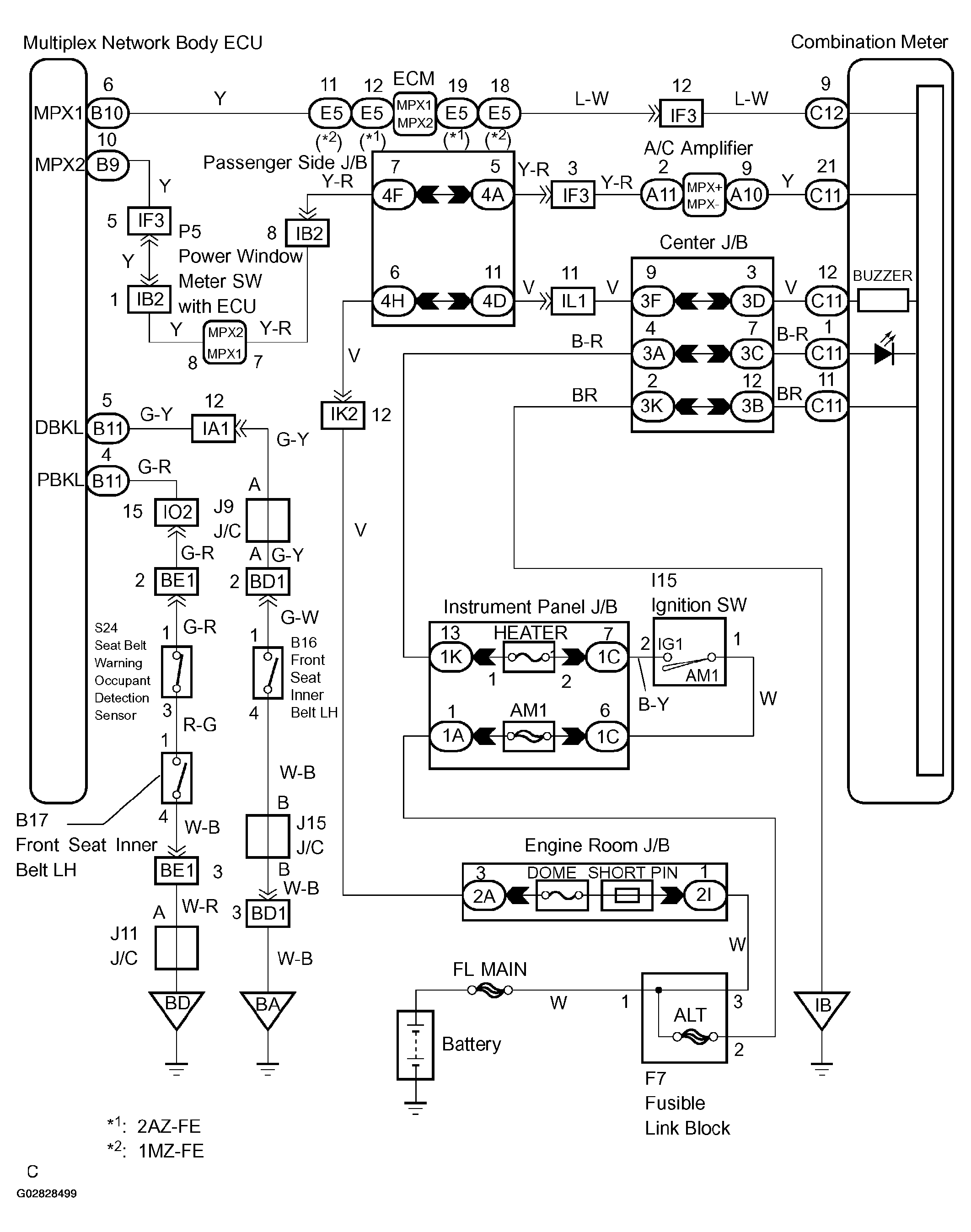

Fig 1: Circuit Diagram - Passenger's Seat Belt Warning Lamp

G02828499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
