Seat Belt Warning Lamp & Buzzer For Driver's Seat Does Not Operate: Wiring Diagram

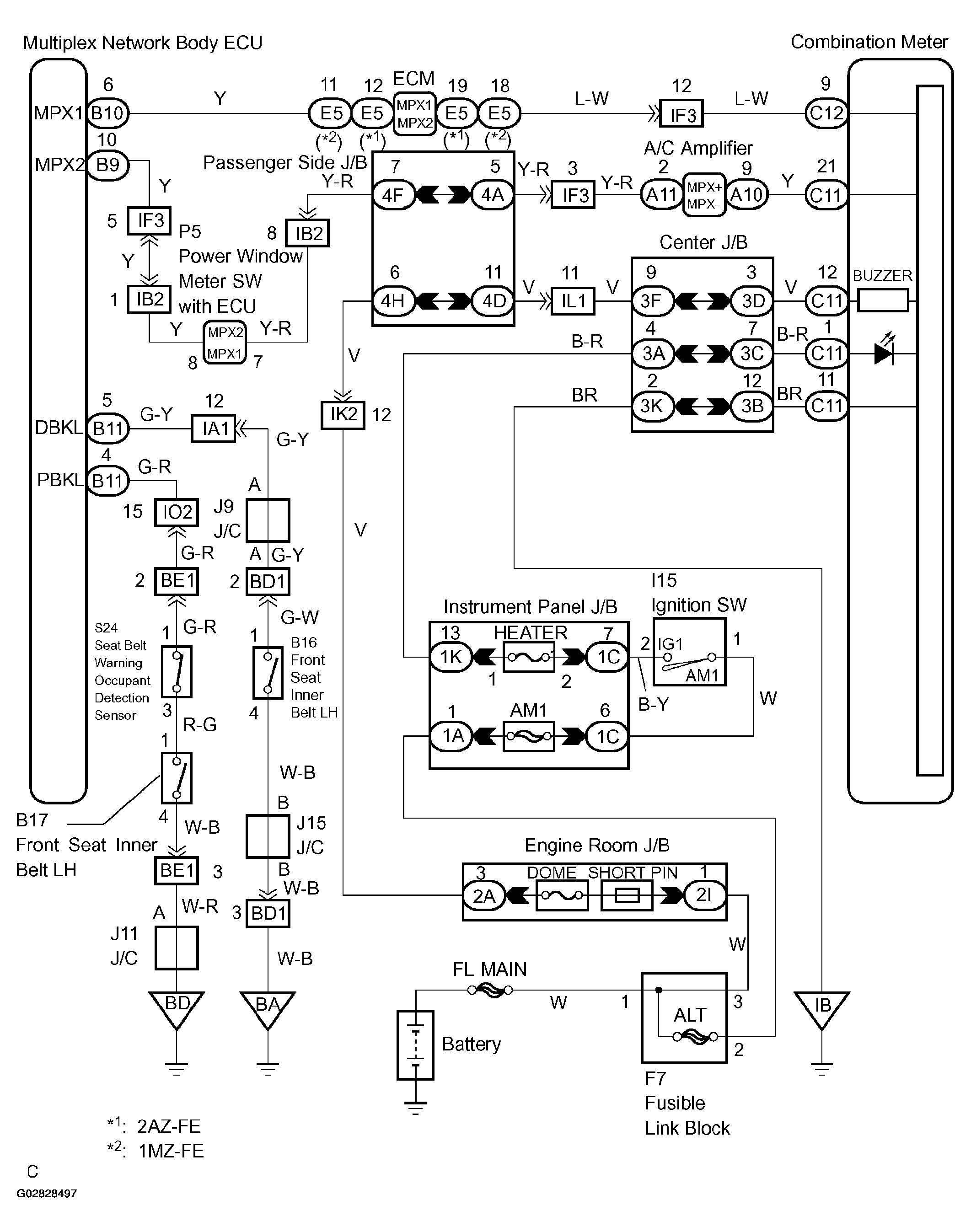

Fig 1: Circuit Diagram - Seat Belt Warning Lamp & Buzzer

G02828497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
