Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

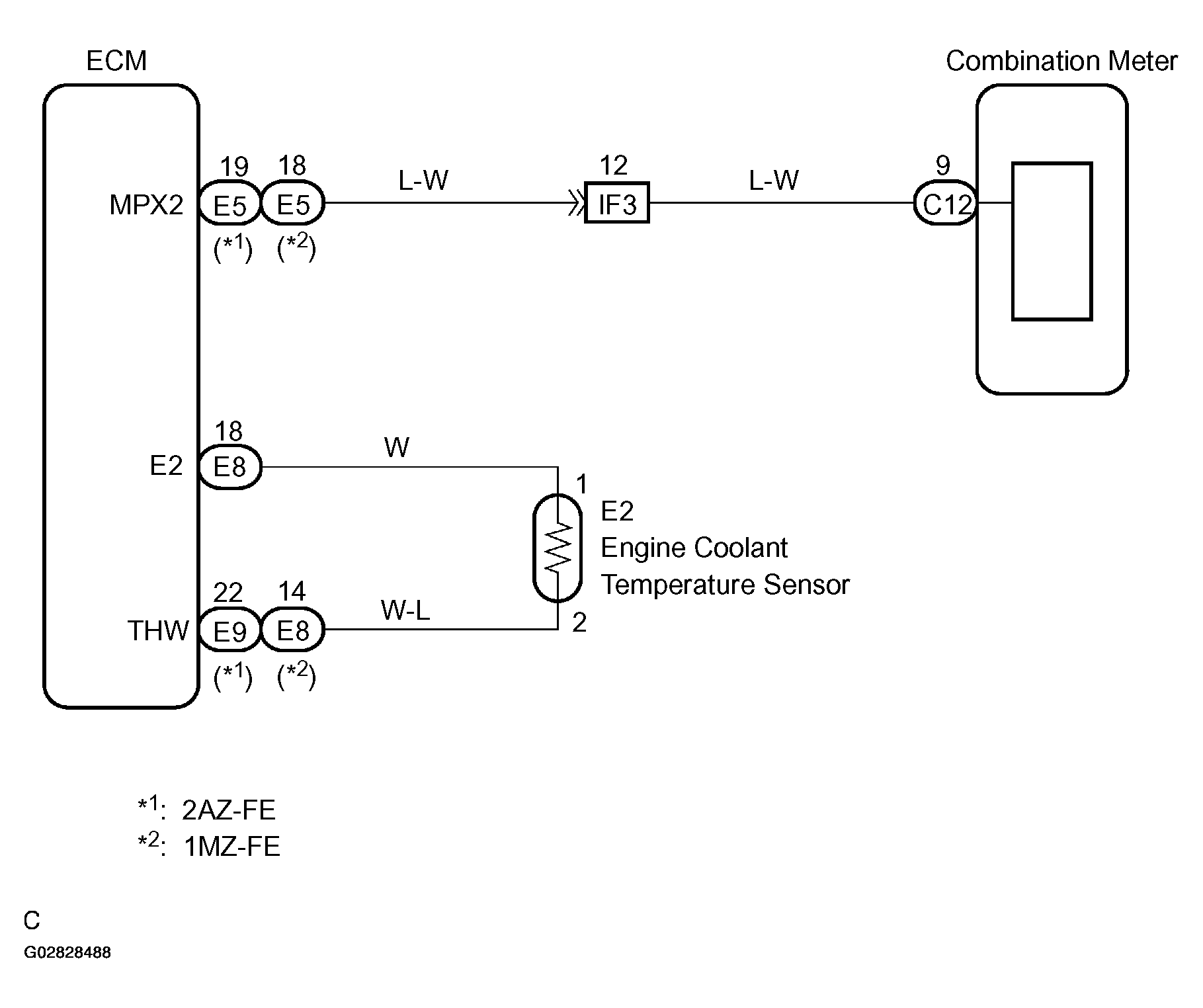

Fig 1: Circuit Diagram - Water Temperature Receiver Gauge

G02828488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
