Combination Meter - Diagnostics: Location

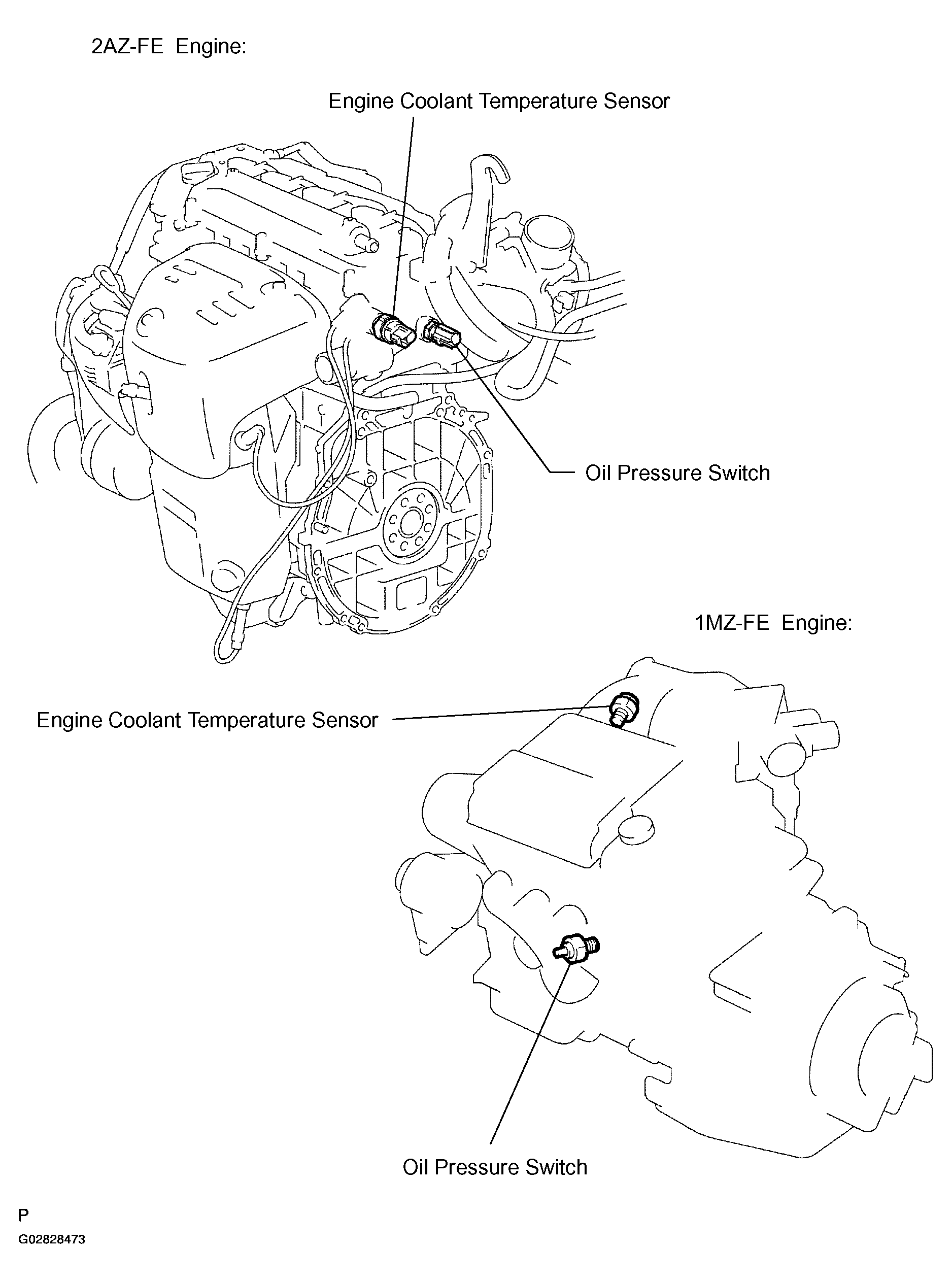

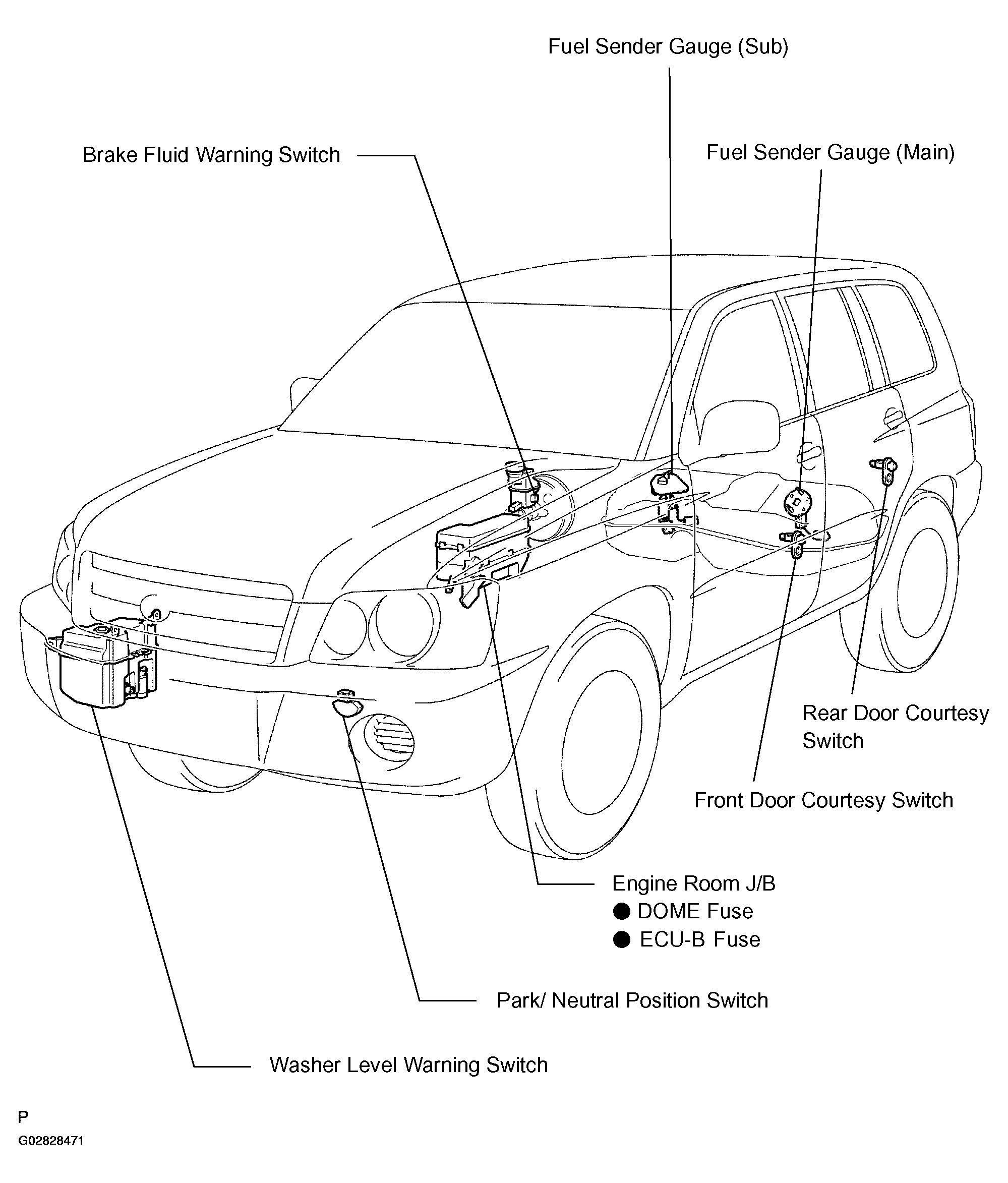

Fig 1: Locating Combination Meter System Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

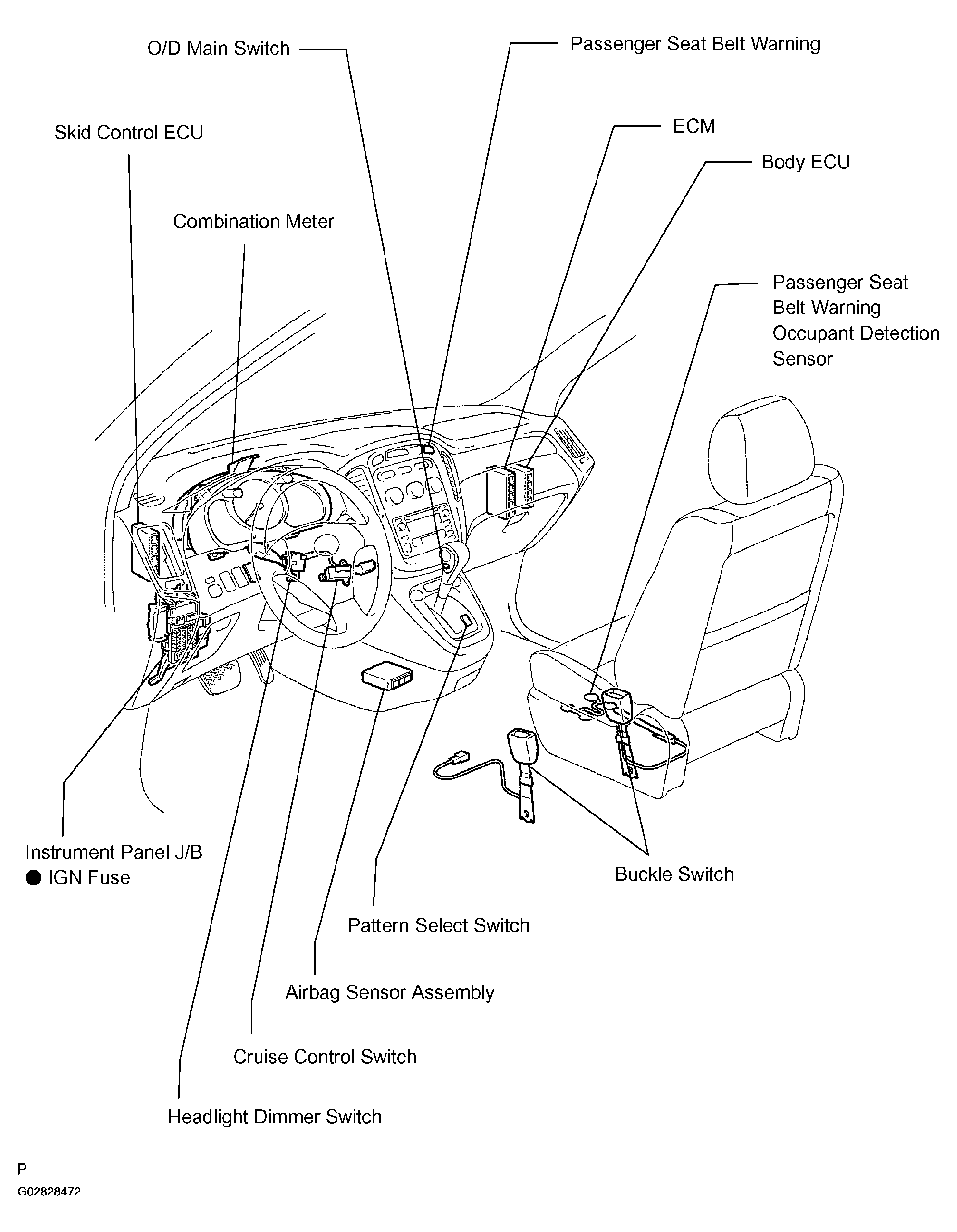

Fig 2: Locating Combination Meter System Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Combination Meter System Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

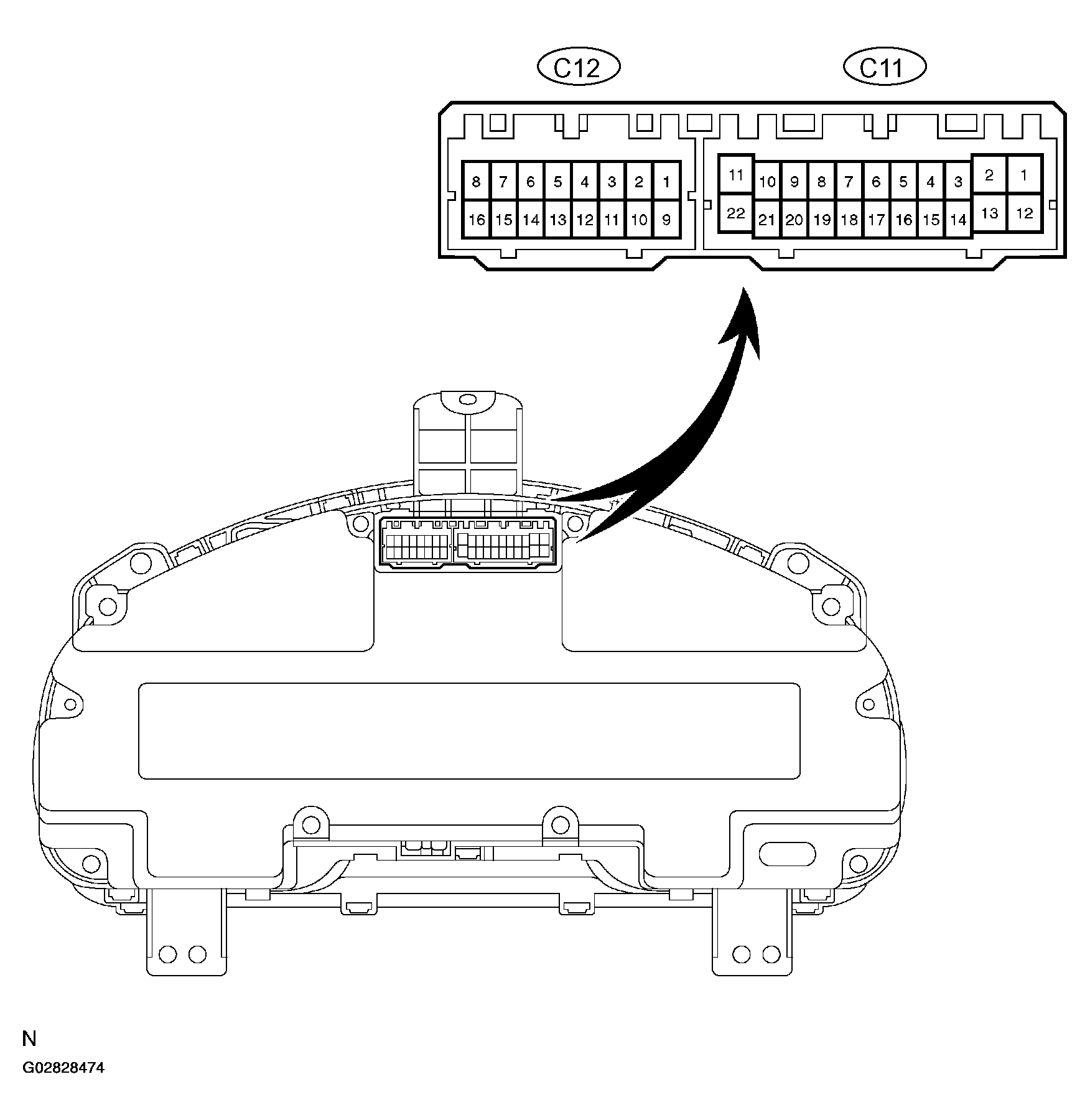

Fig 4: Identifying Combination Meter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

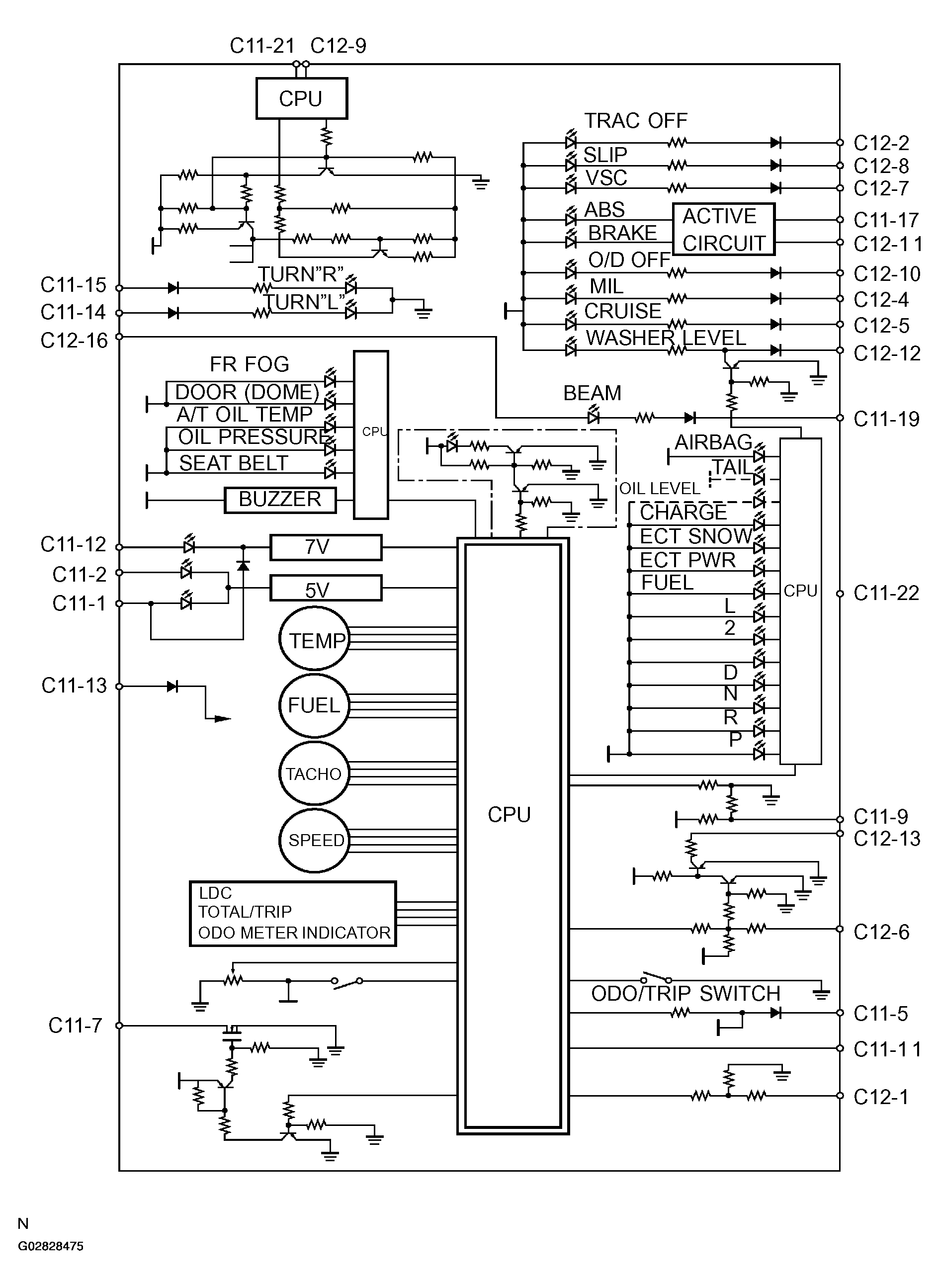

Fig 5: Combination Meter Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

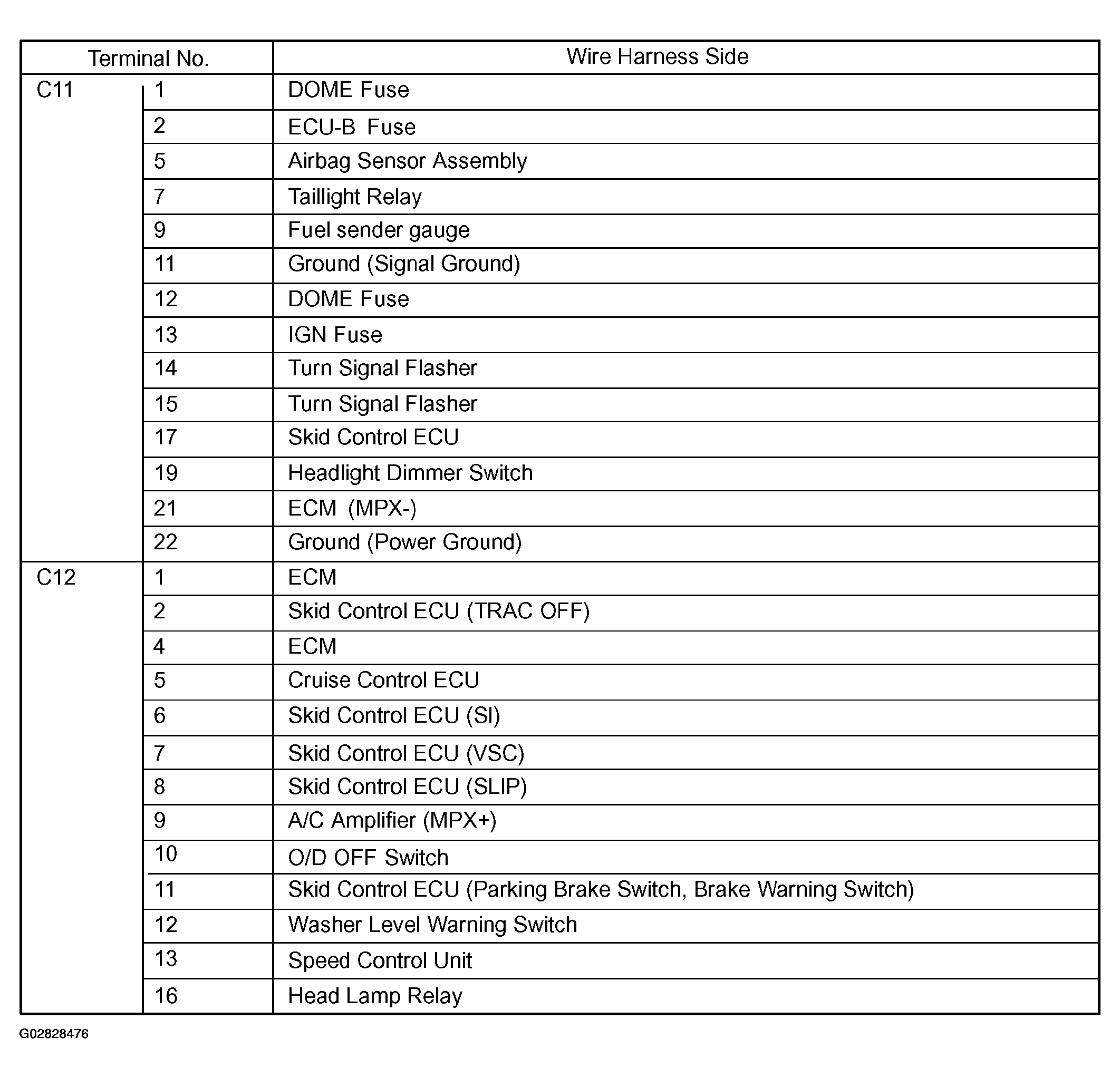

Fig 6: Combination Meter Terminals Description Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
