Entire Combination Meter Does Not Operate: Wiring Diagram

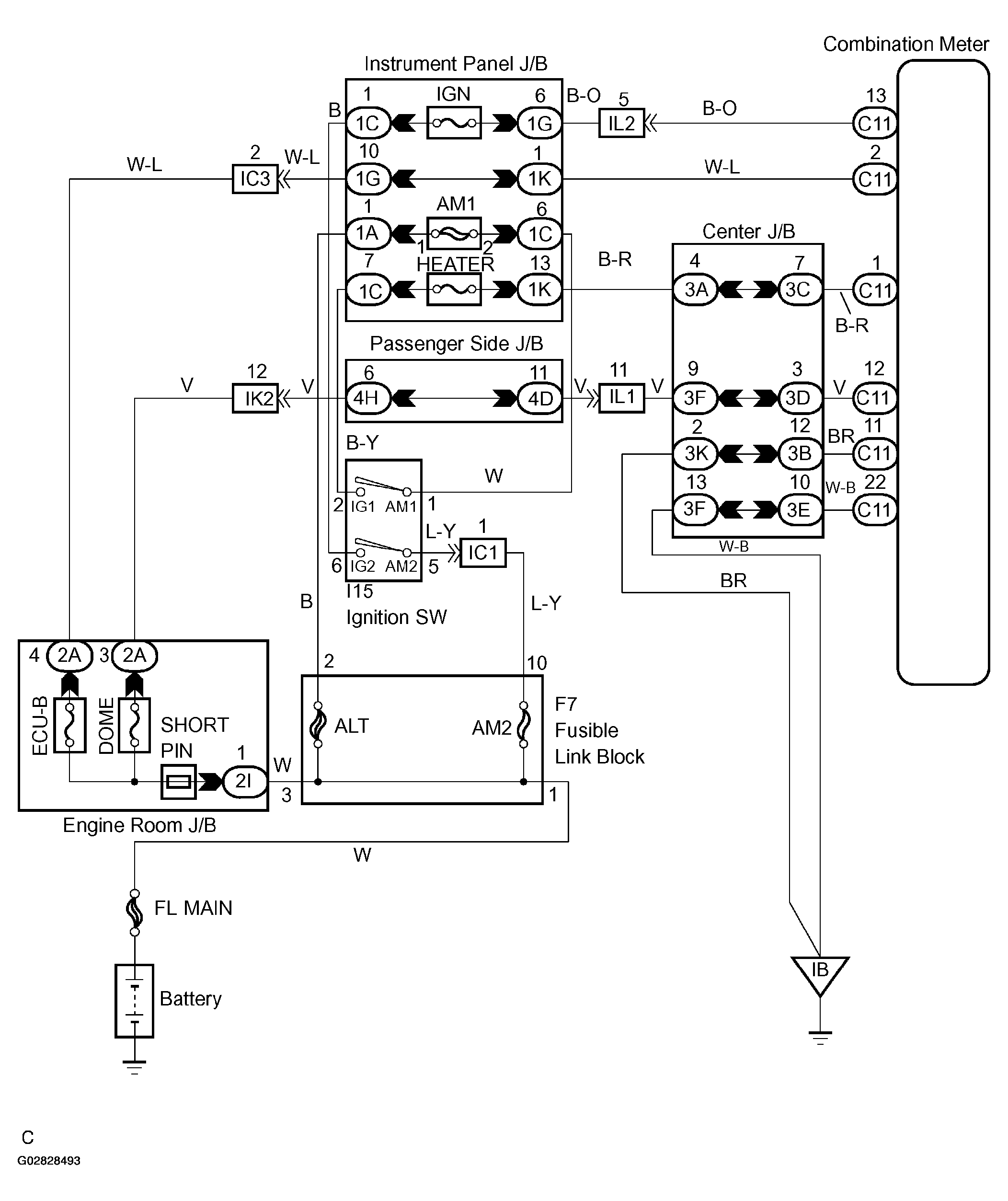

Fig 1: Circuit Diagram - Combination Meter

G02828493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
